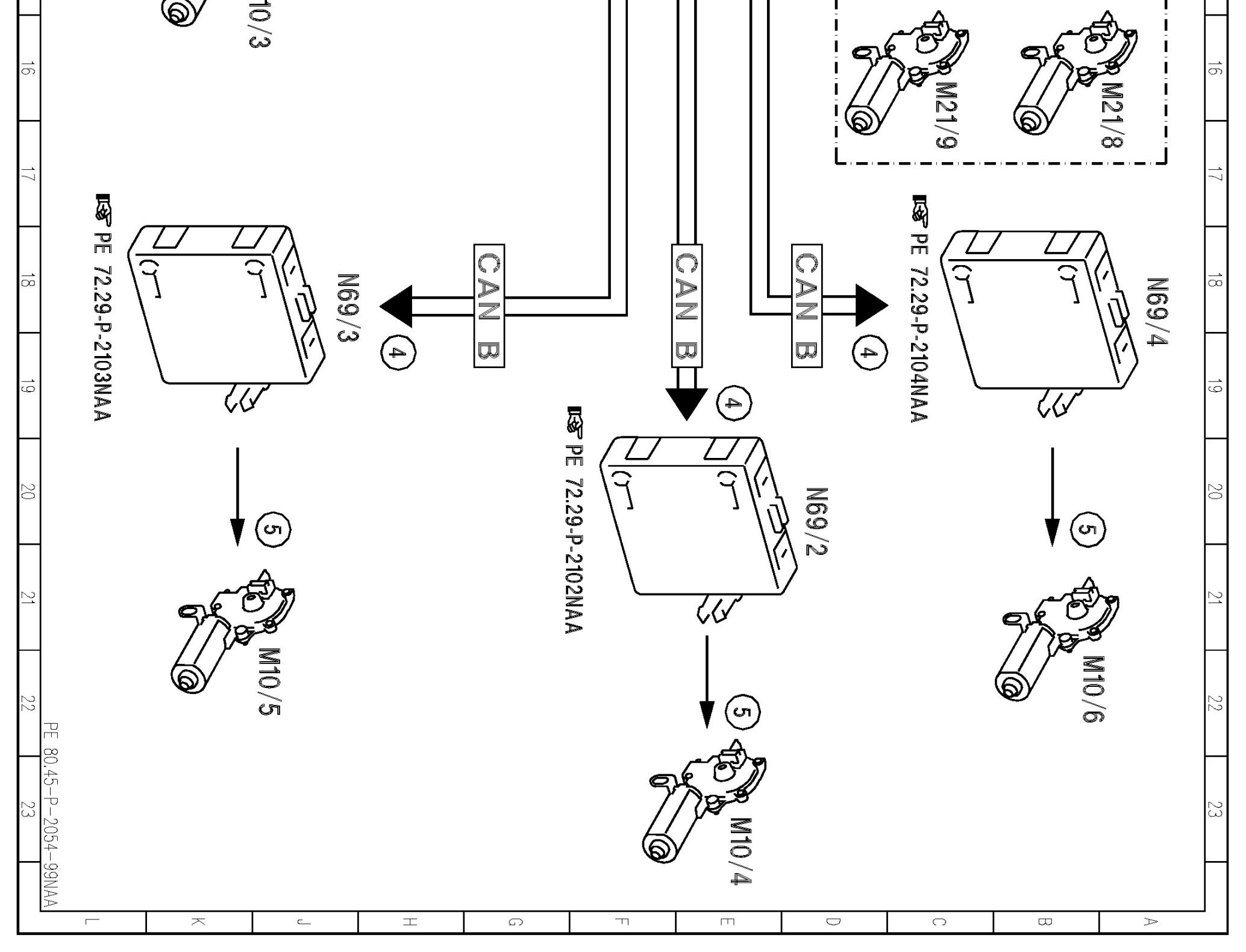

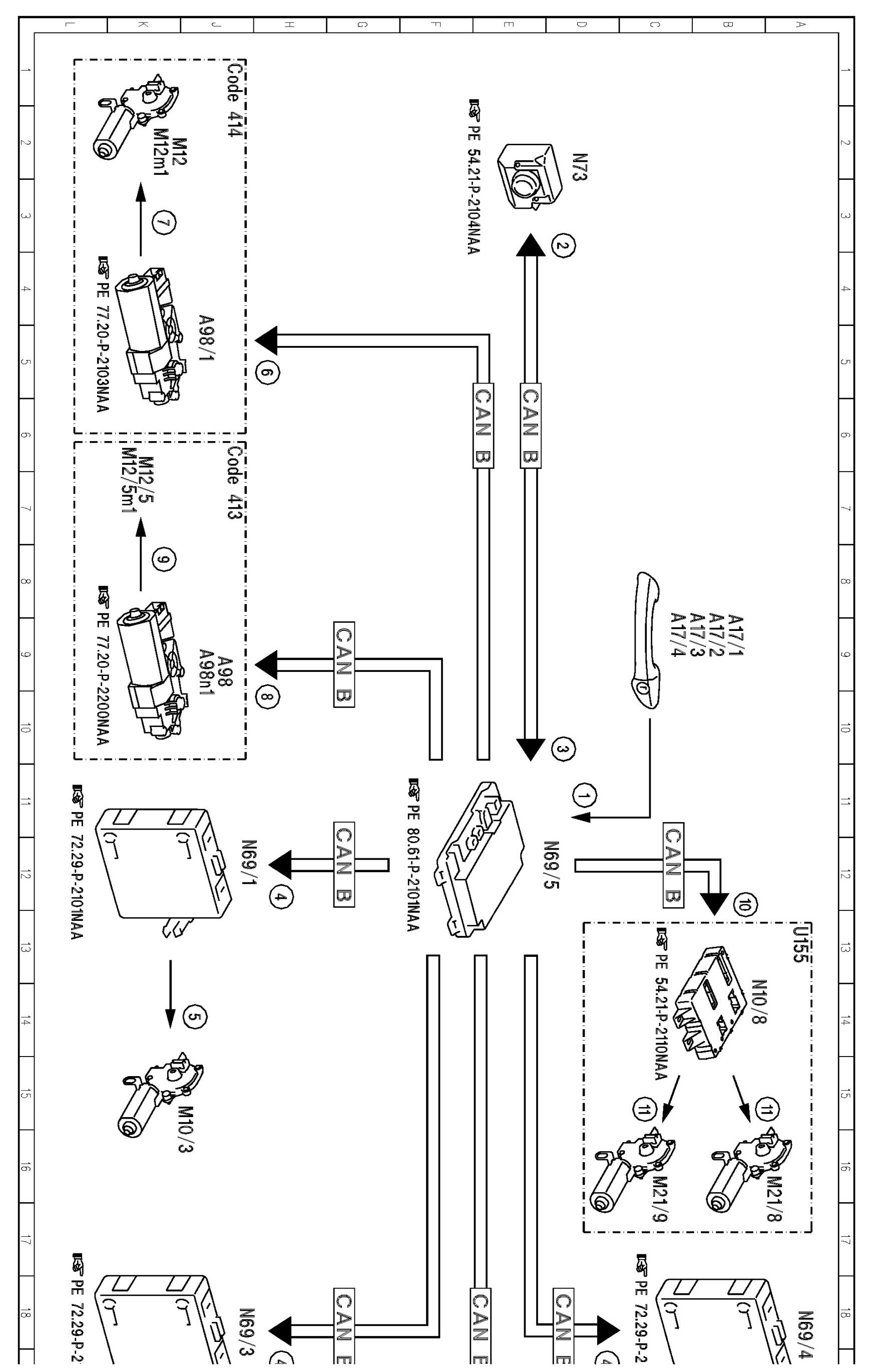

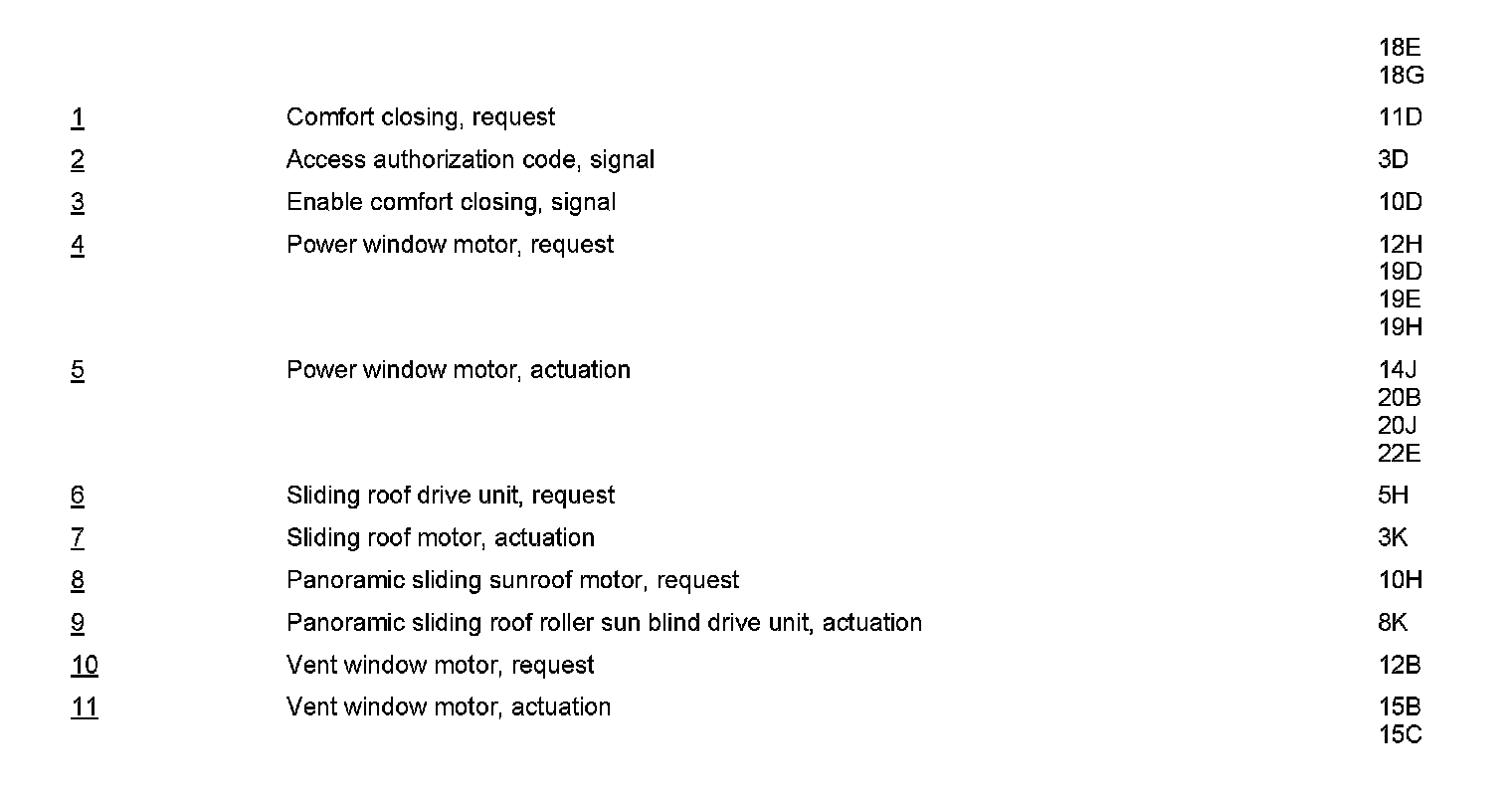

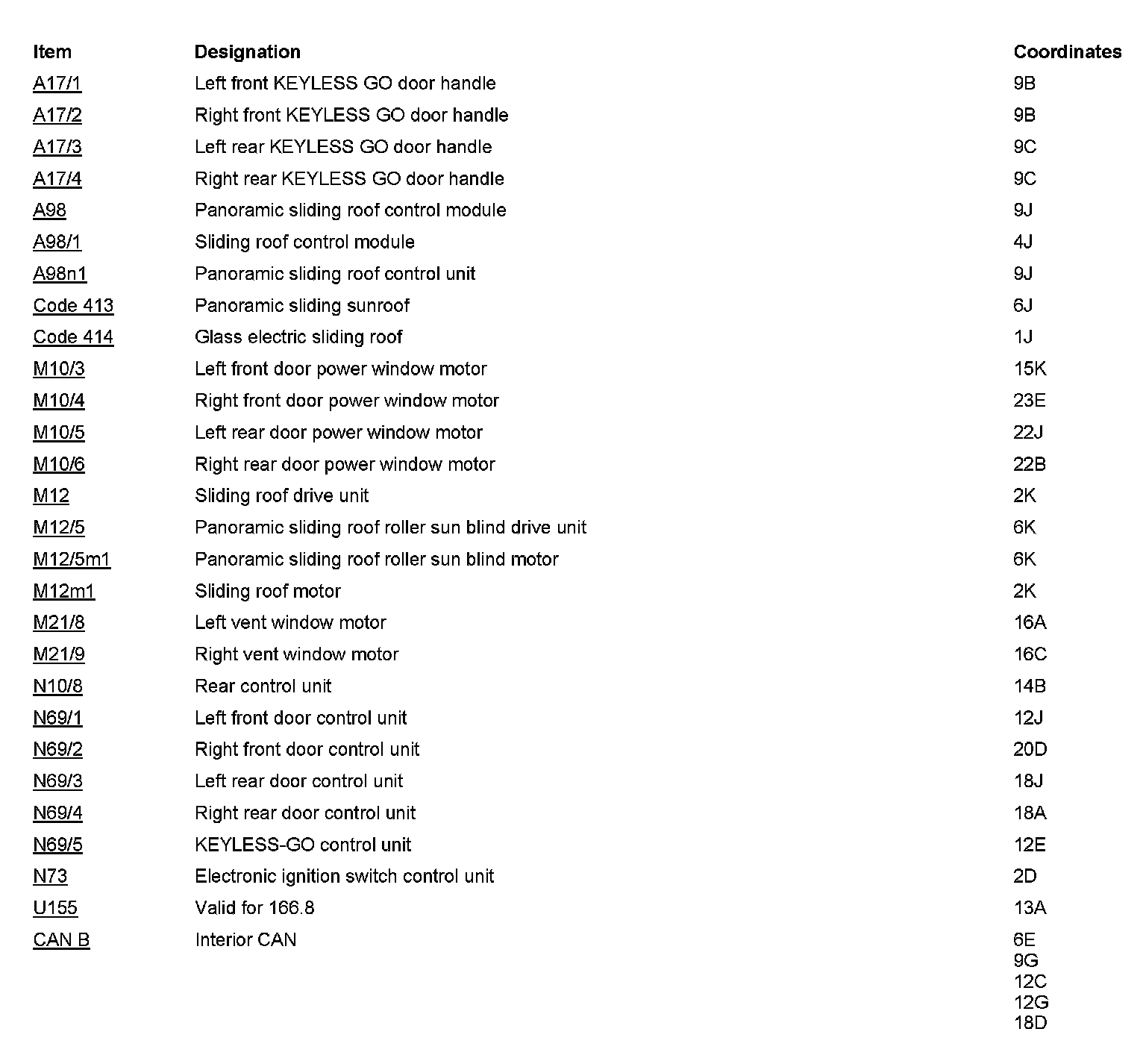

PE80.45-P-2054NAA Electrical Function Schematic For Convenience Closing Via Keyless Go

PE80.45-P-2054NAA Electrical Function Schematic For Convenience Closing Via Keyless Go
MODEL 166
with CODE (889) KEYLESS-GO

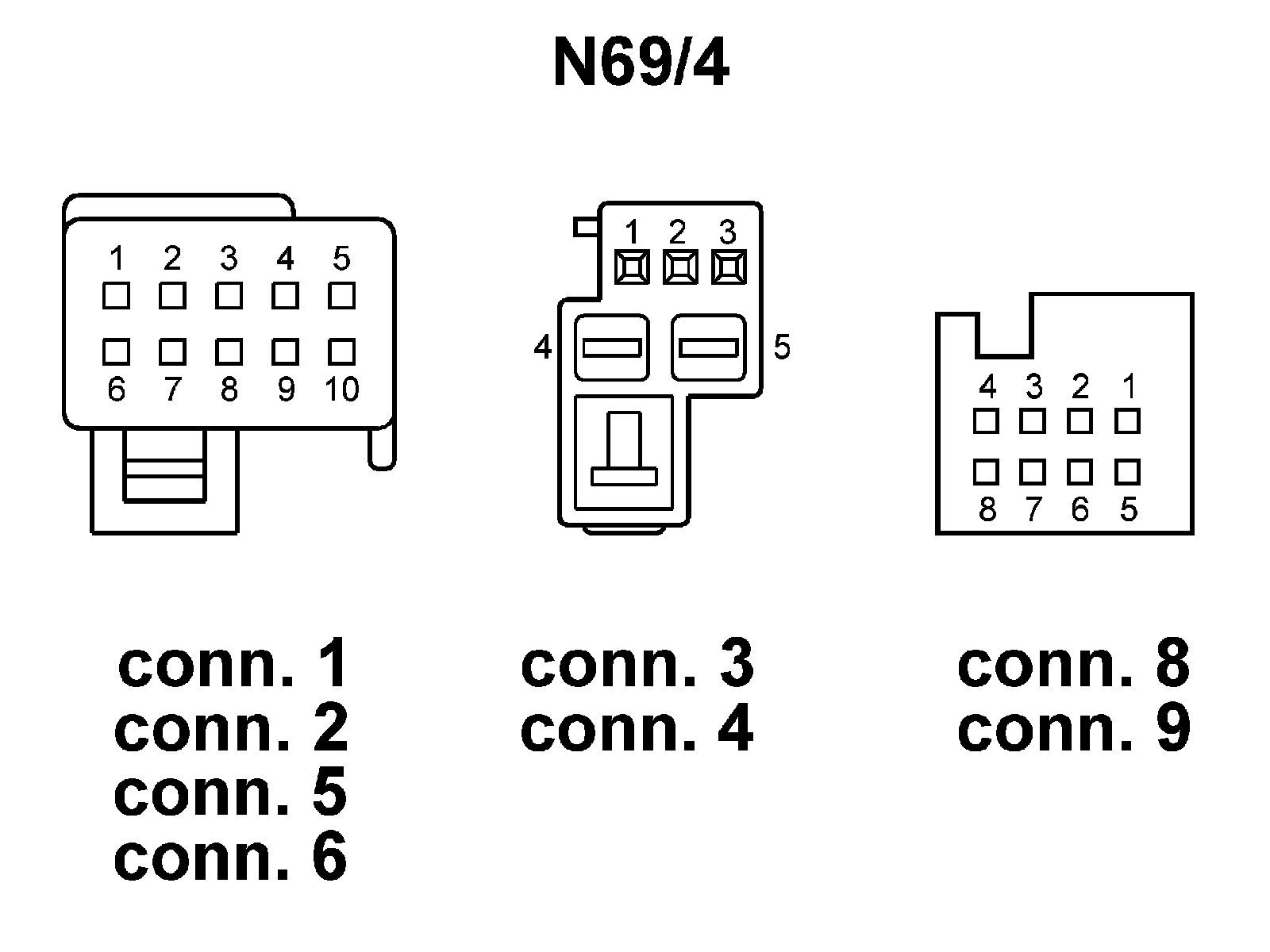

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
