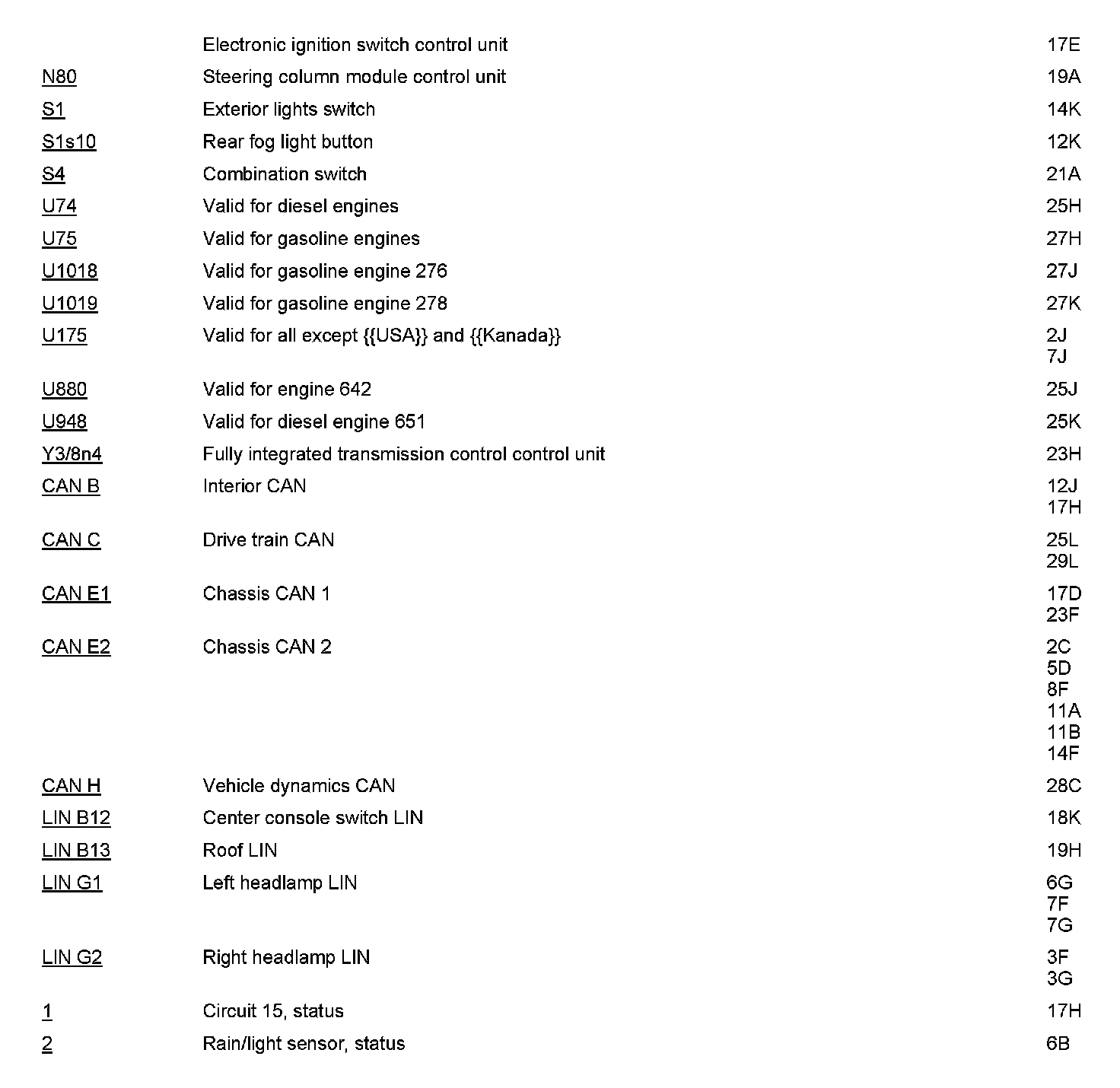

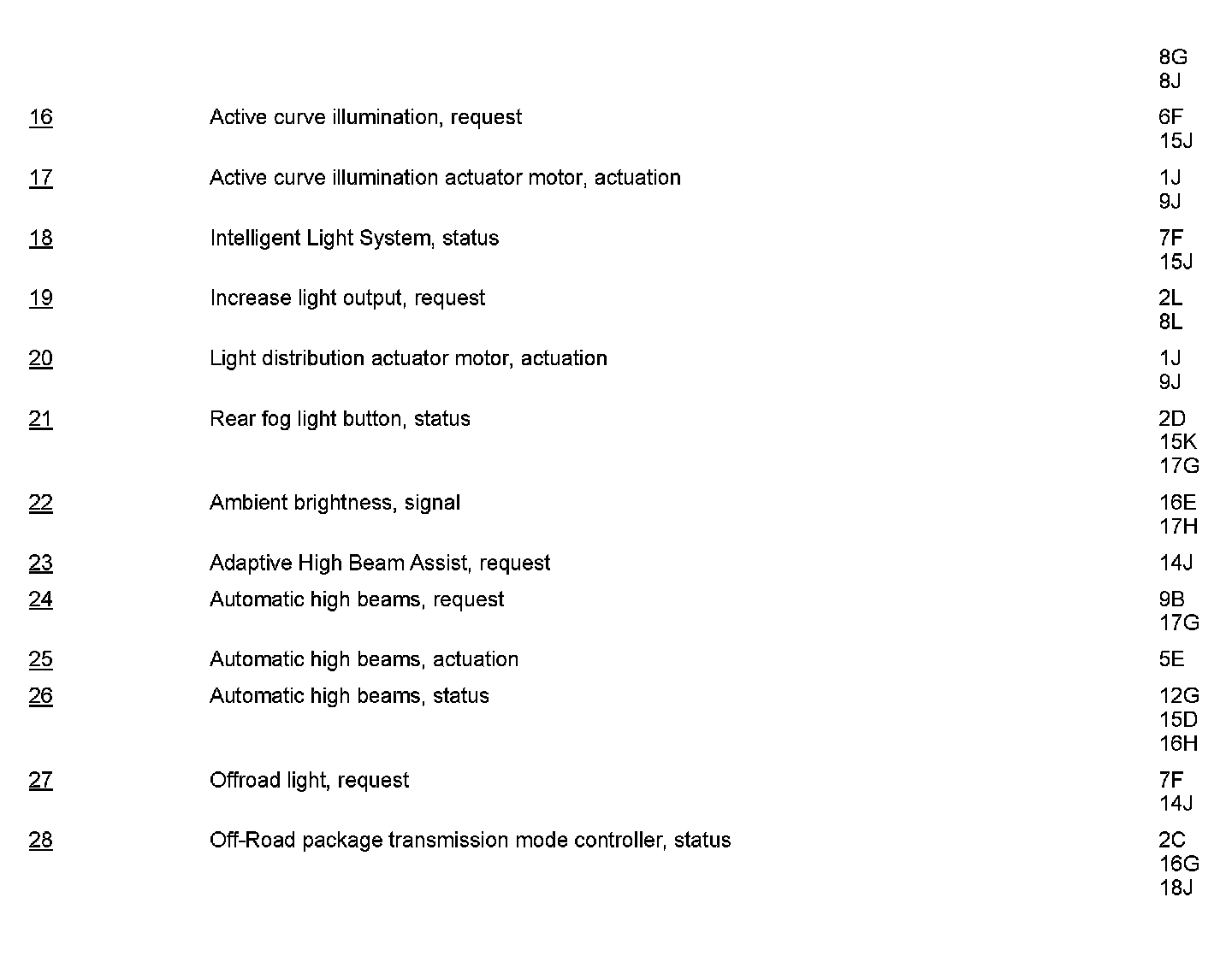

PE82.10-P-2063NAA Electrical Function Schematic, Additional Functions, Driving Lights Actuation

PE82.10-P-2063NAA Electrical Function Schematic, Additional Functions, Driving Lights Actuation
MODEL 166
with CODE (615) Bi-xenon Headlamp Unit With Integrated Curve Illumination
with CODE (621) Intelligent Light System (Left-hand Traffic)
with CODE (622) Intelligent Light System (Right-hand Traffic)
with CODE (608) Adaptive Highbeam Assist

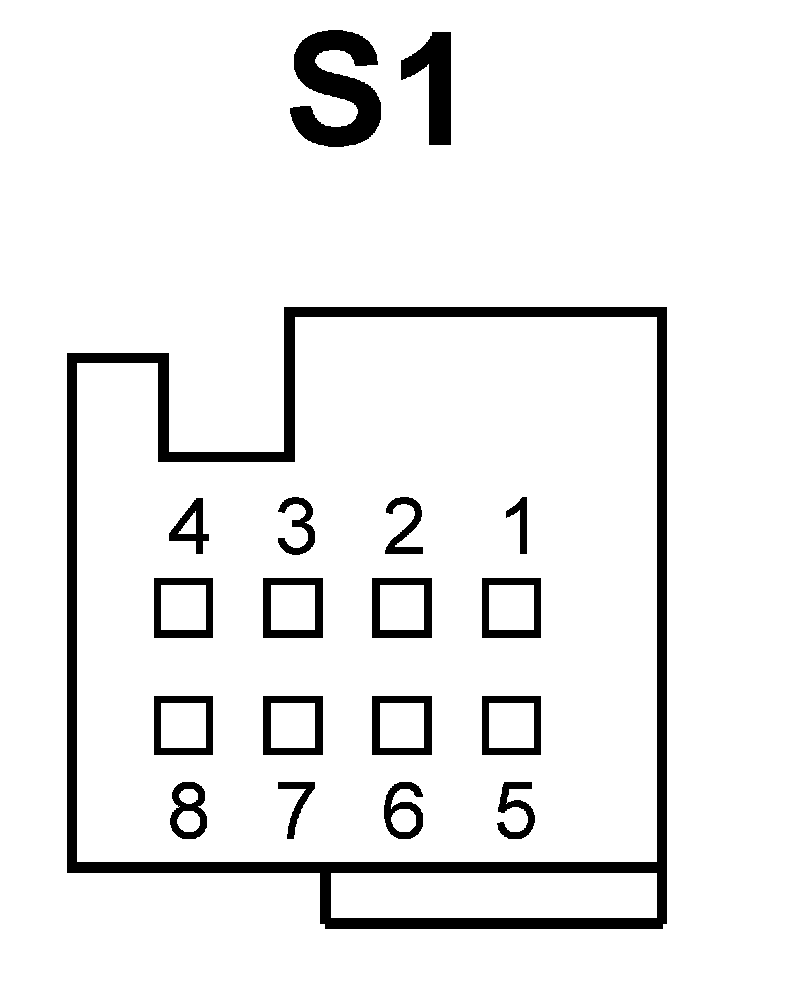

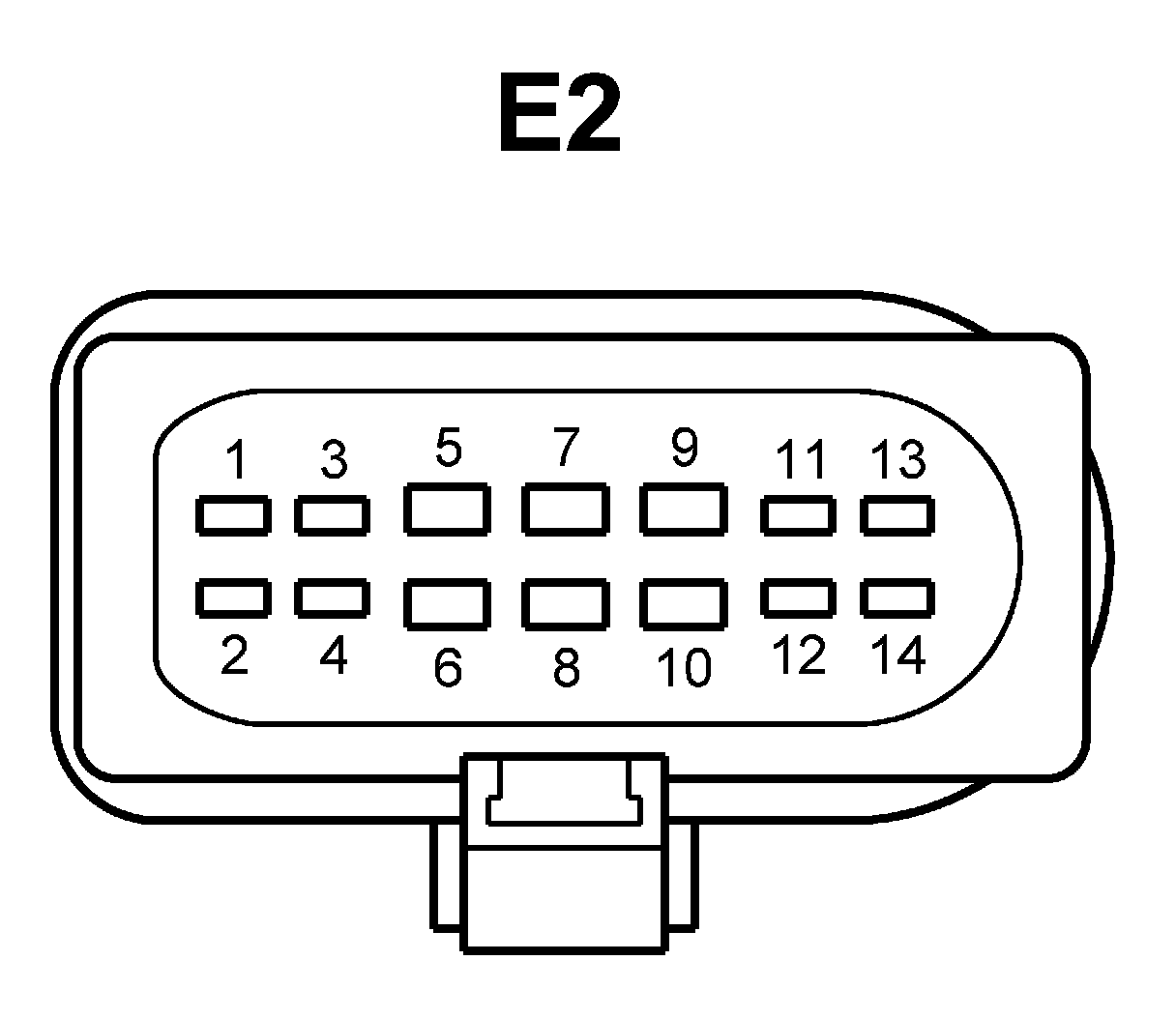

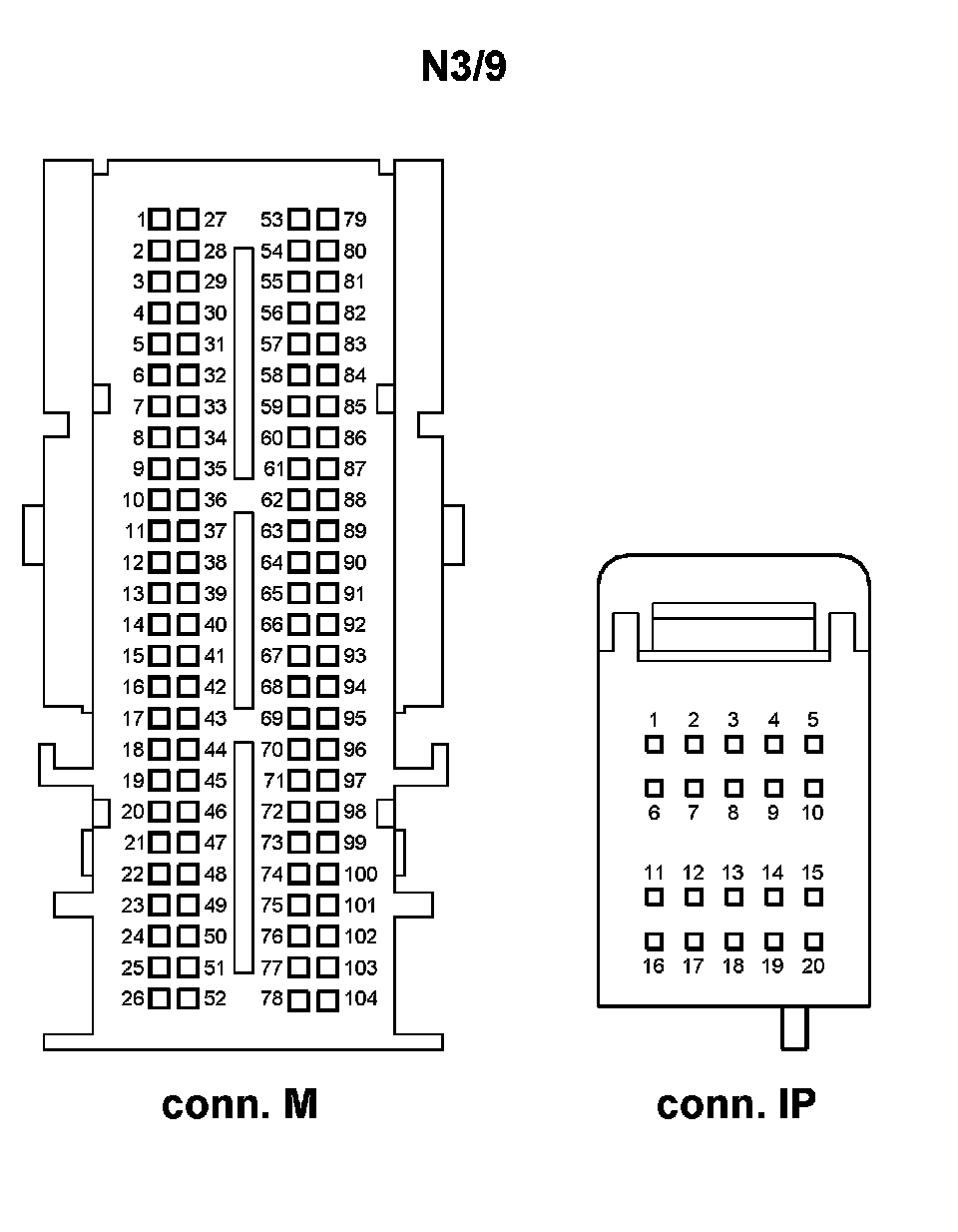

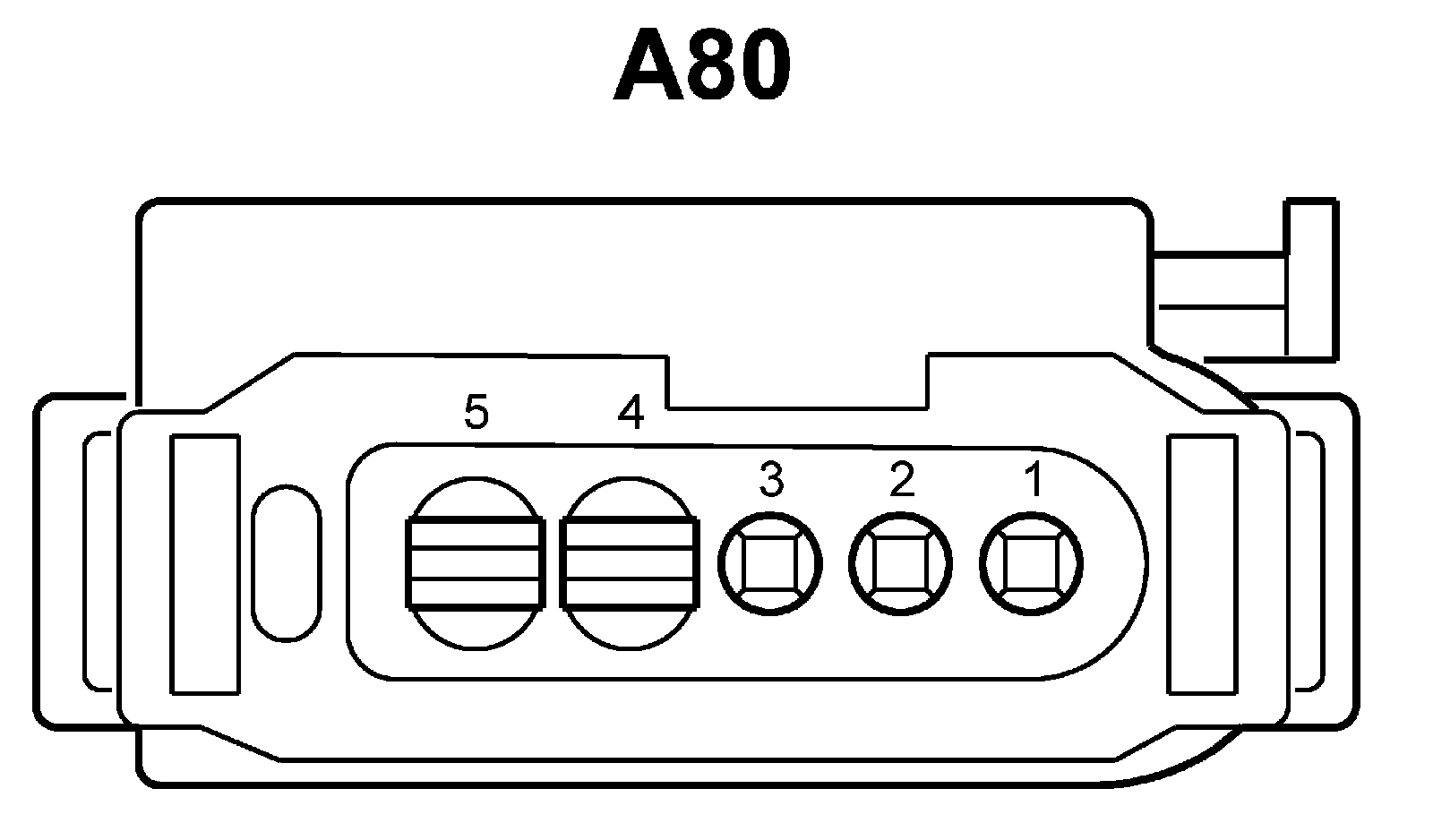

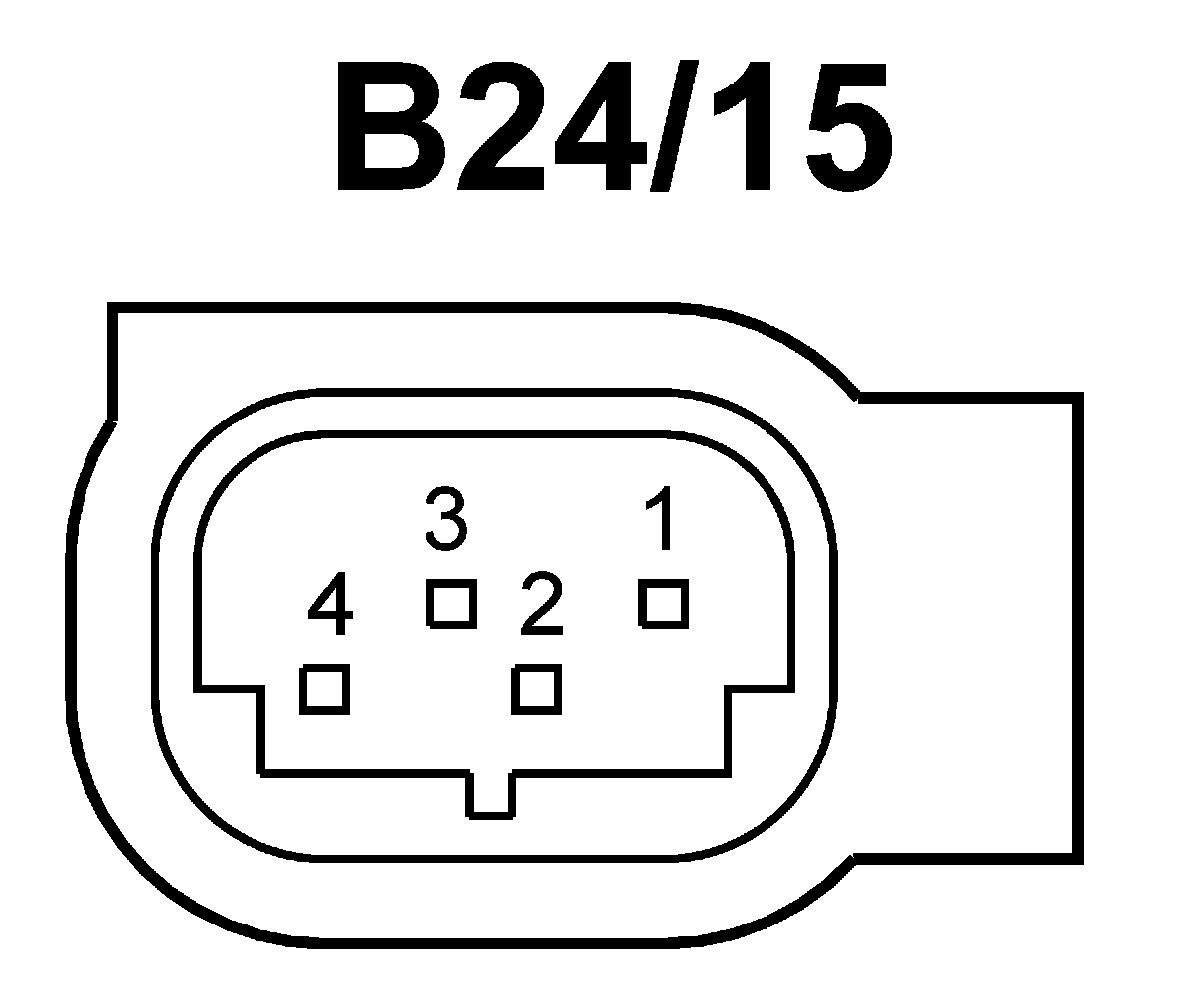

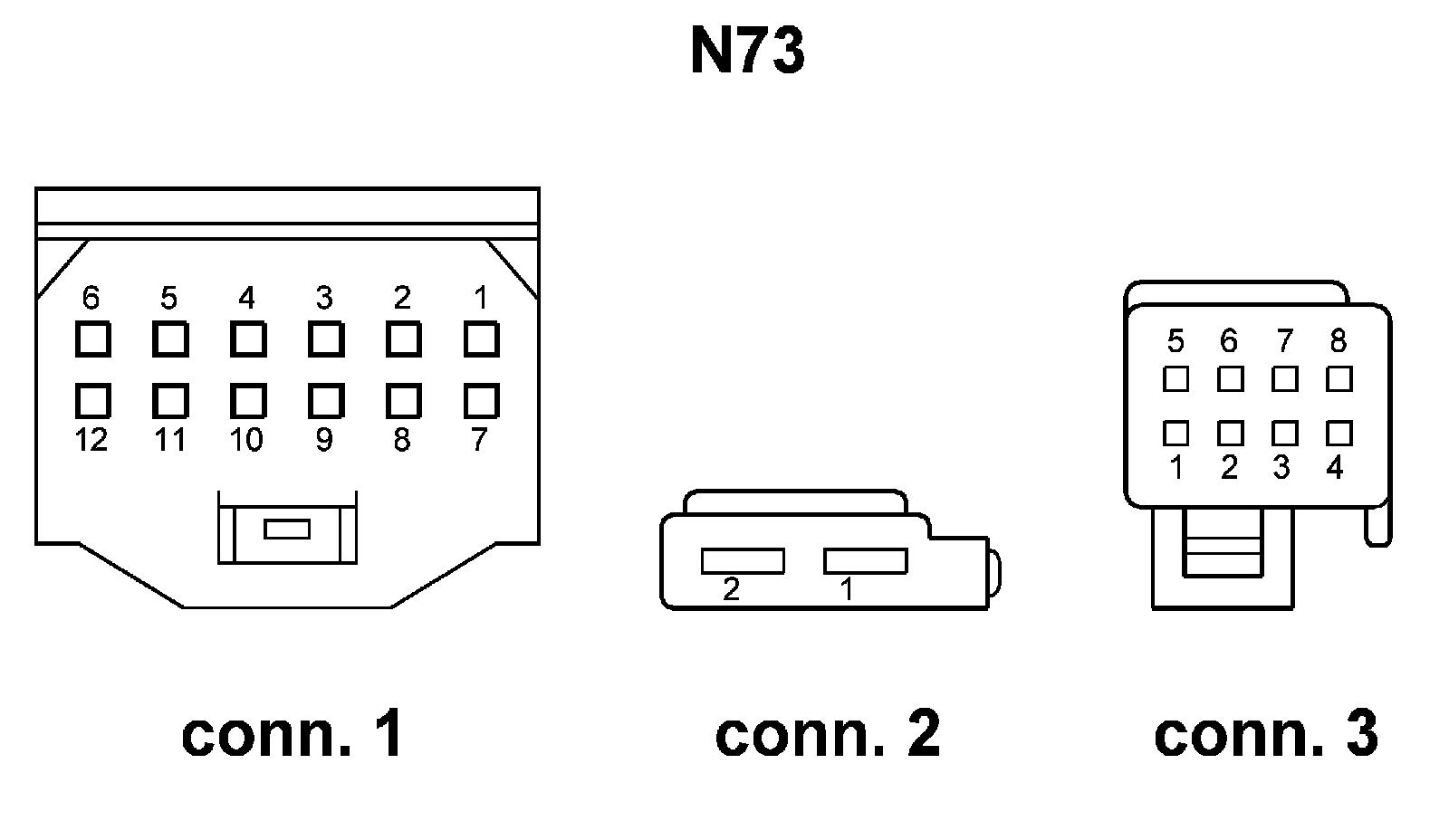

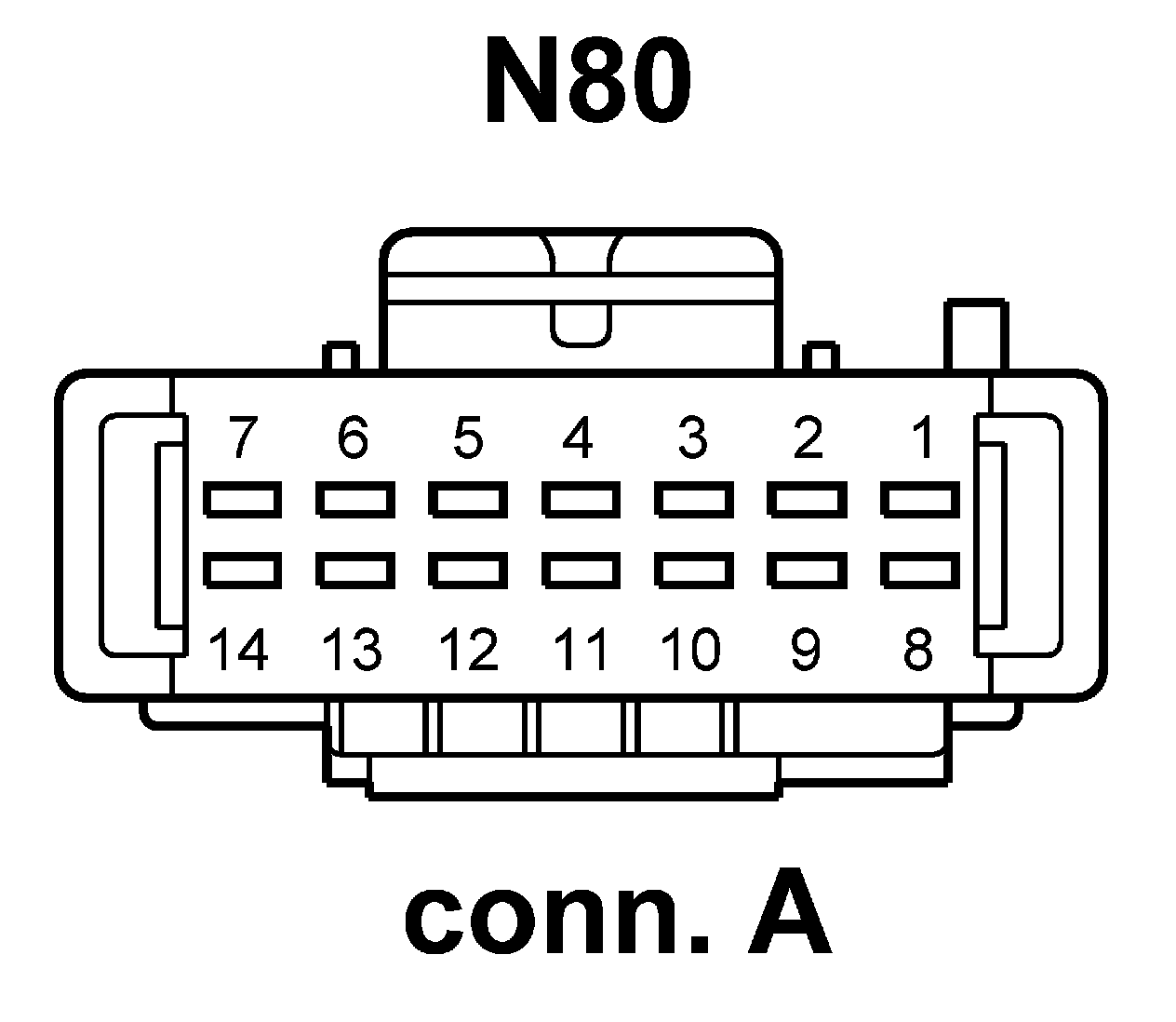

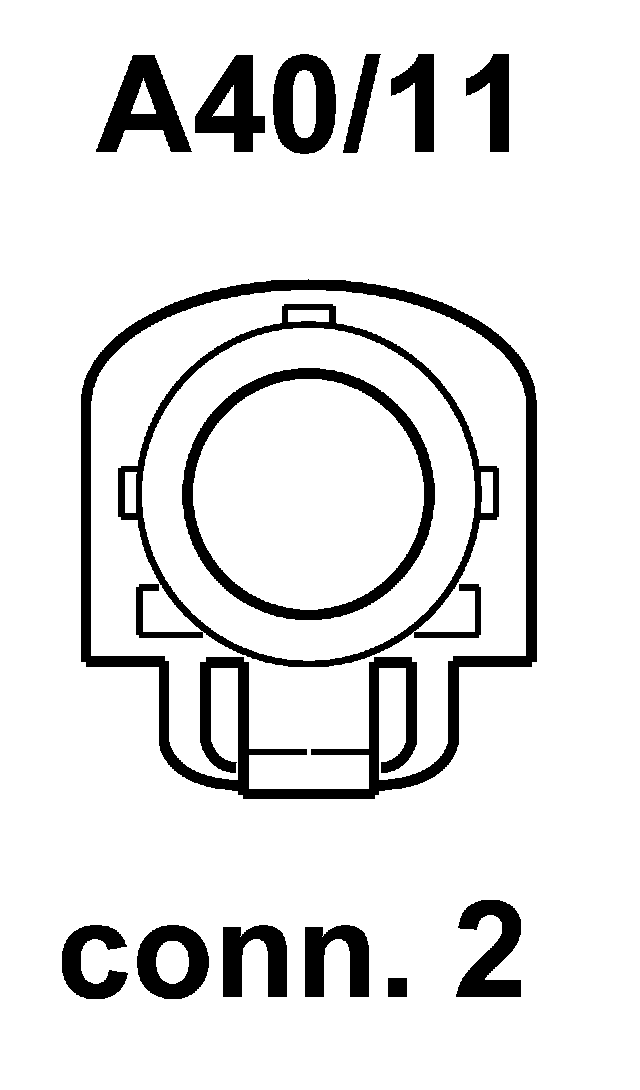

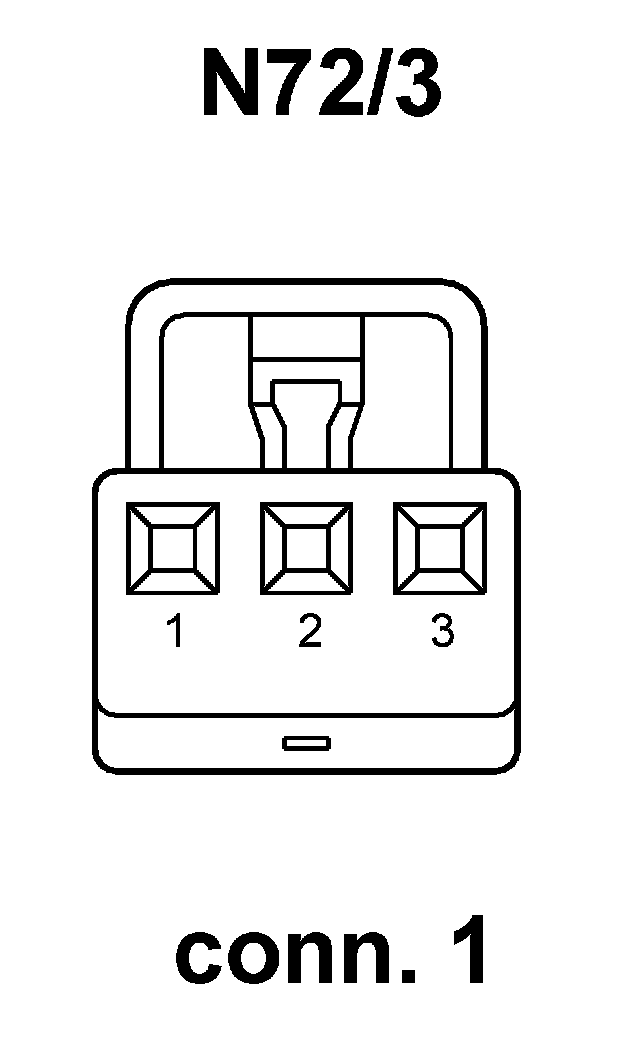

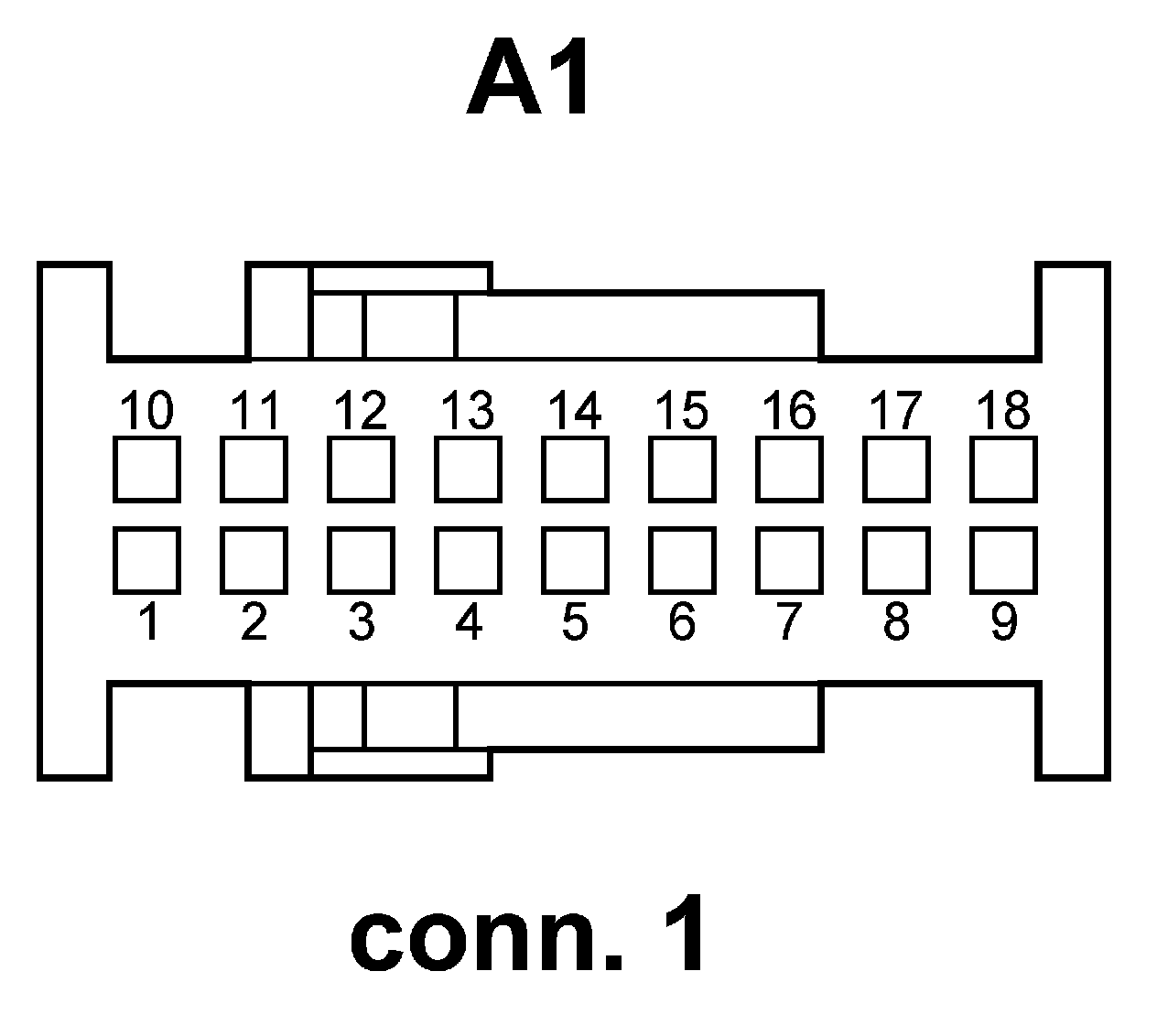

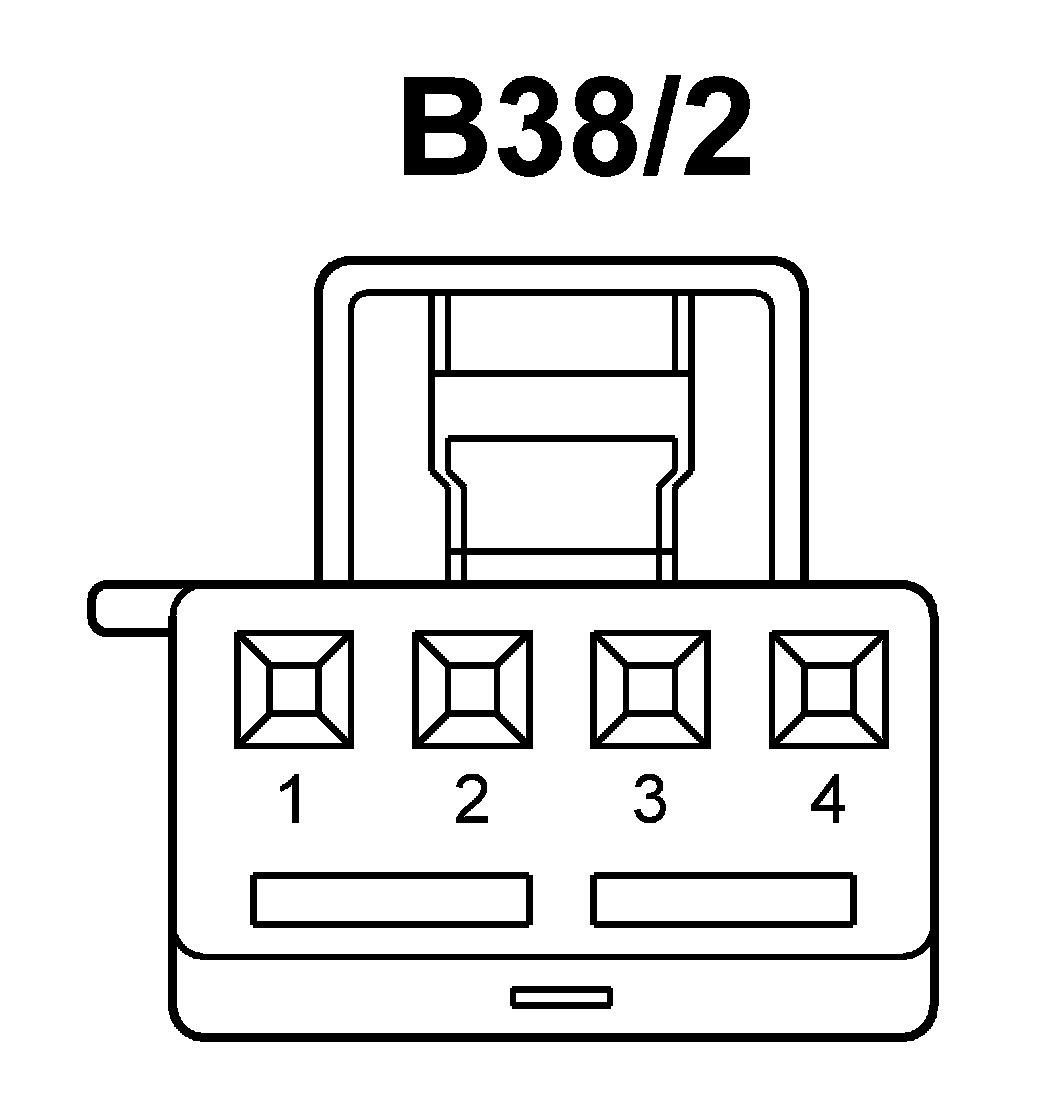

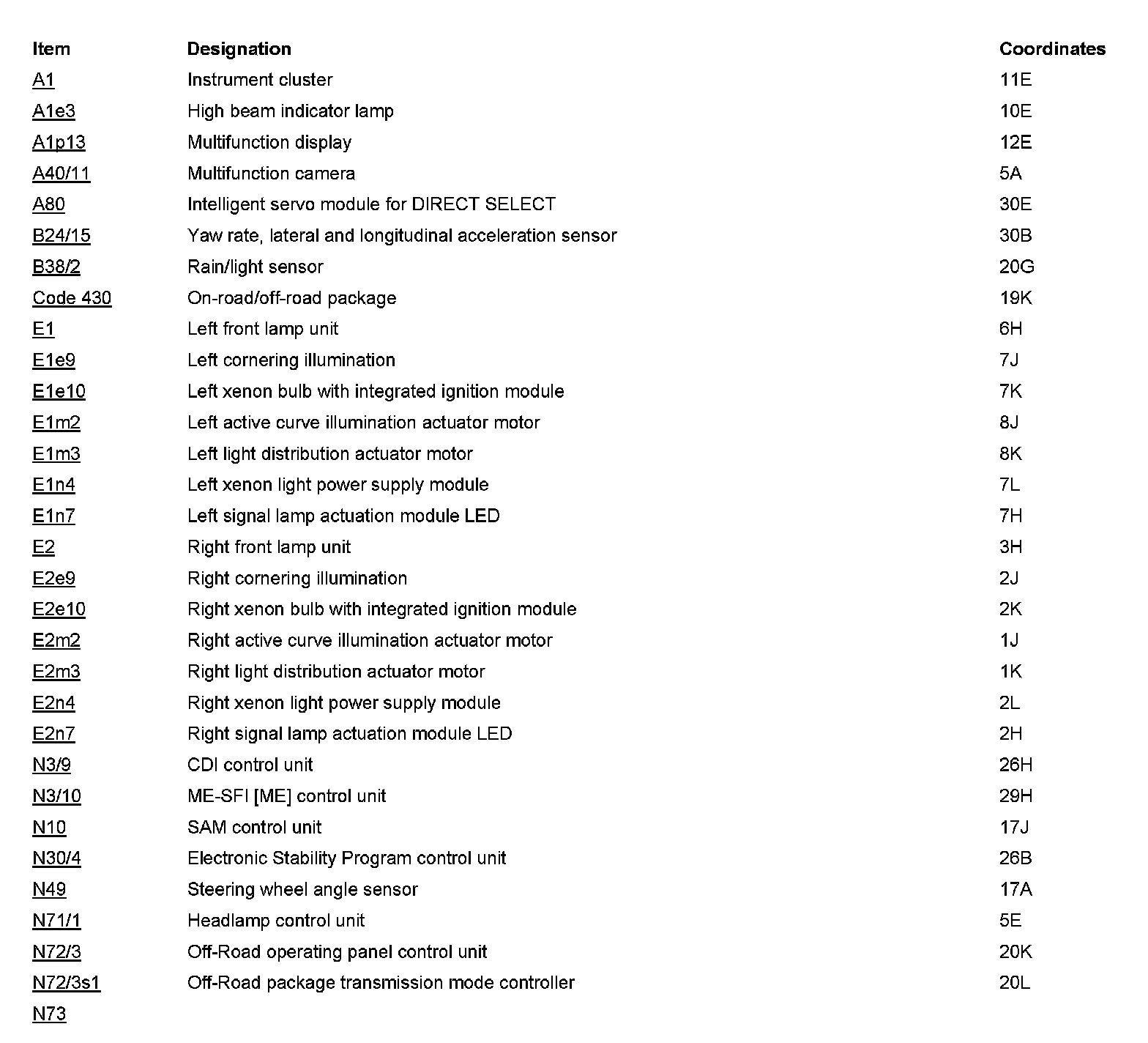

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
