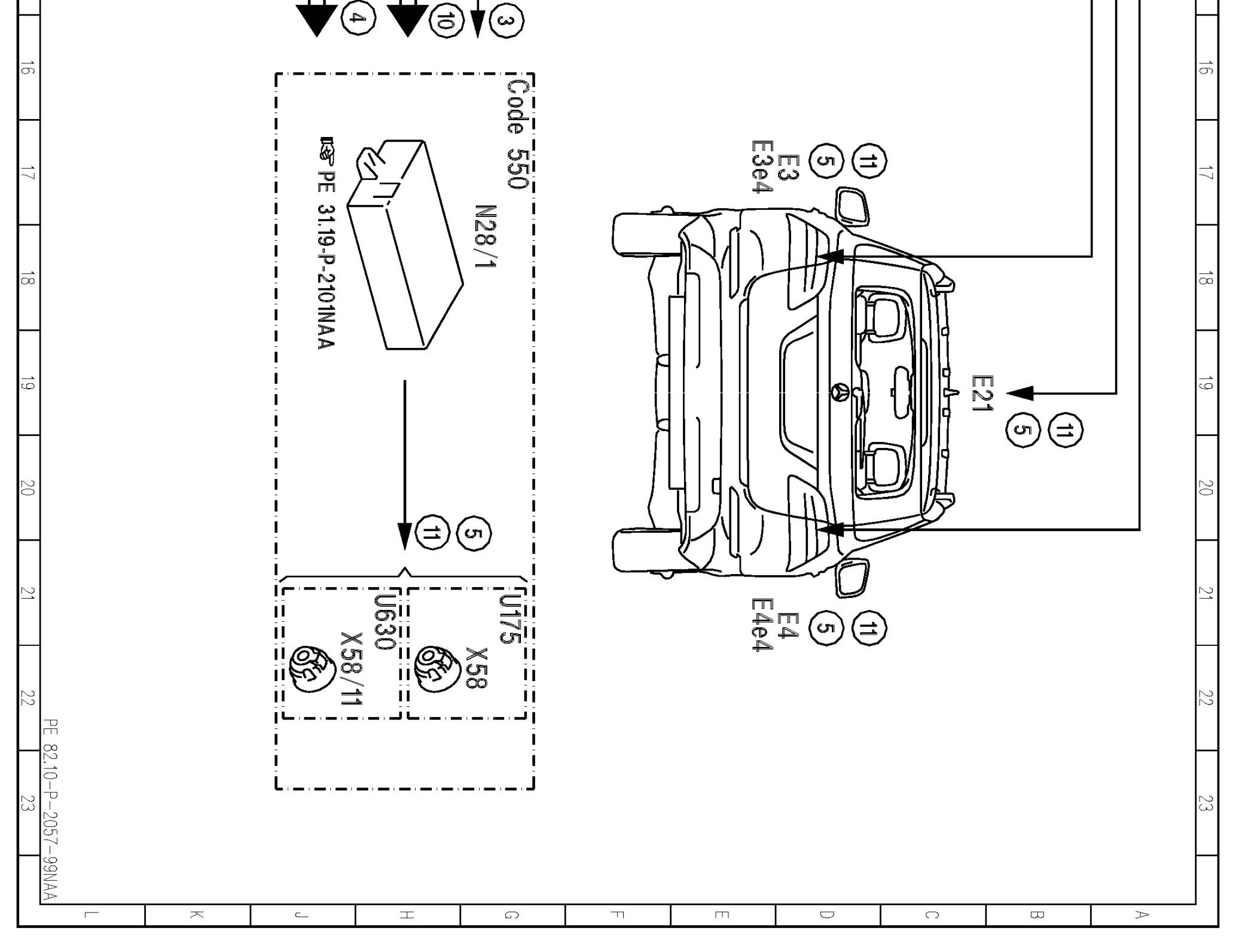

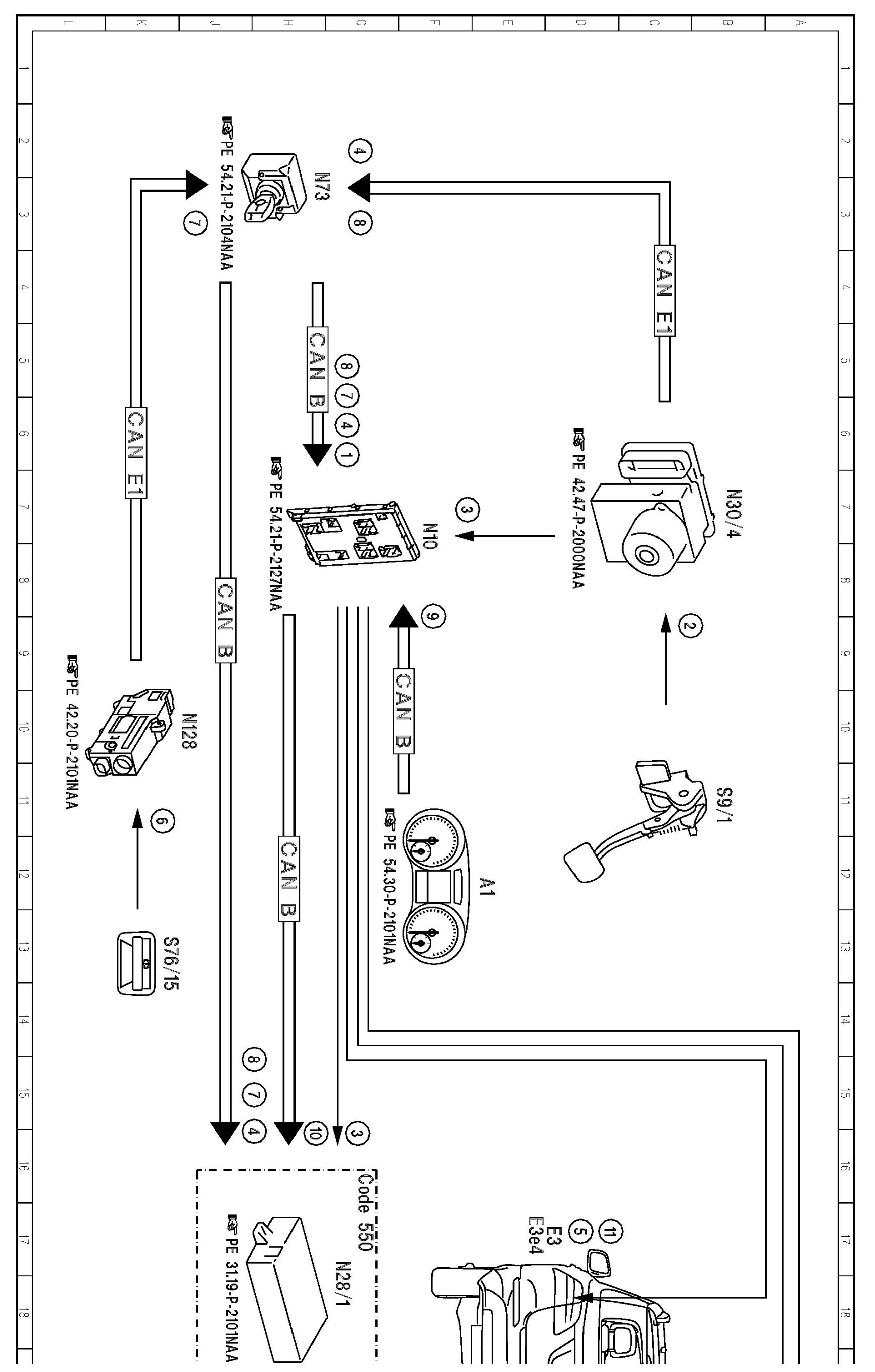

PE82.10-P-2057NAA Electrical Function Schematic For Brake Light Actuation

PE82.10-P-2057NAA Electrical Function Schematic For Brake Light Actuation
MODEL 166






















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
