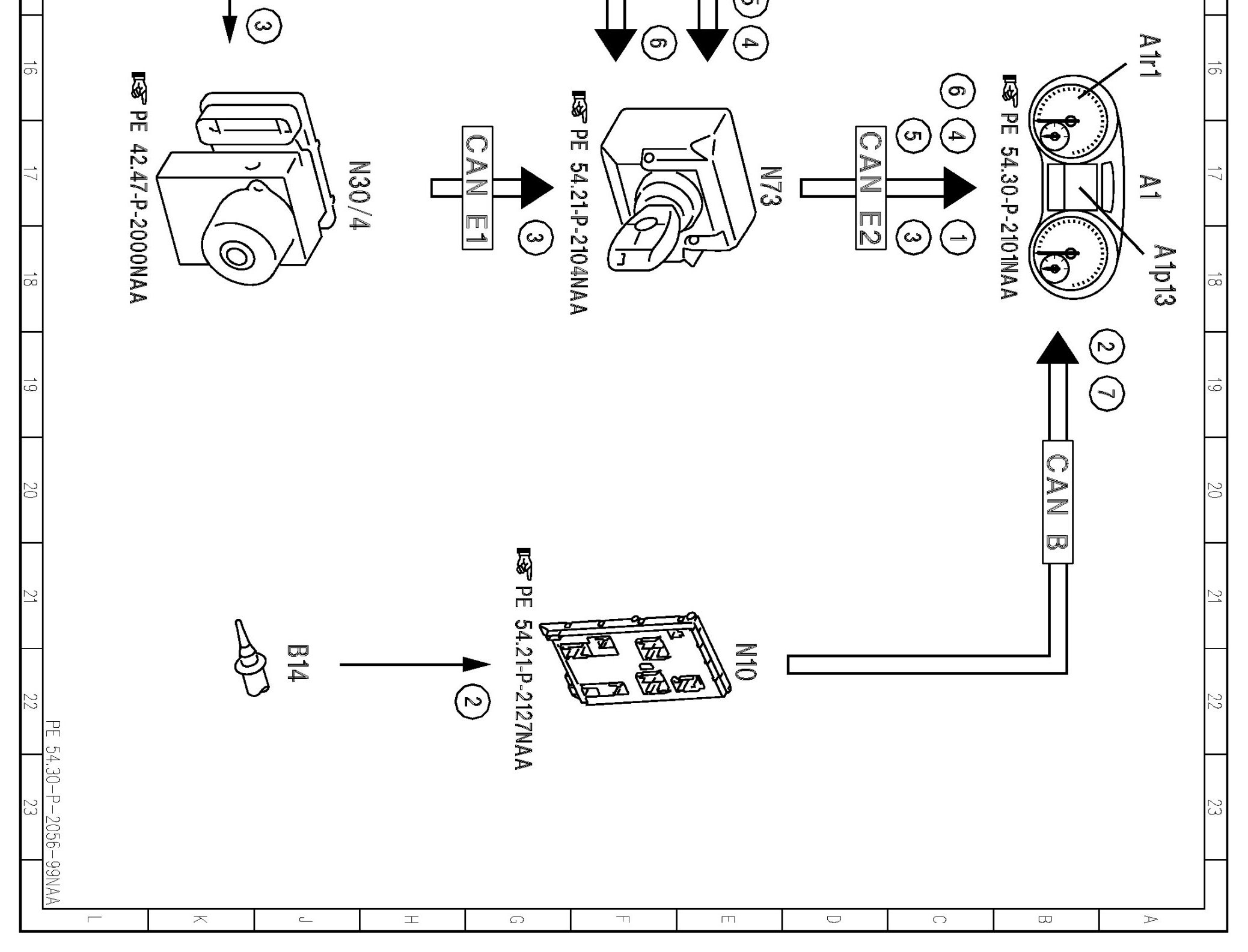

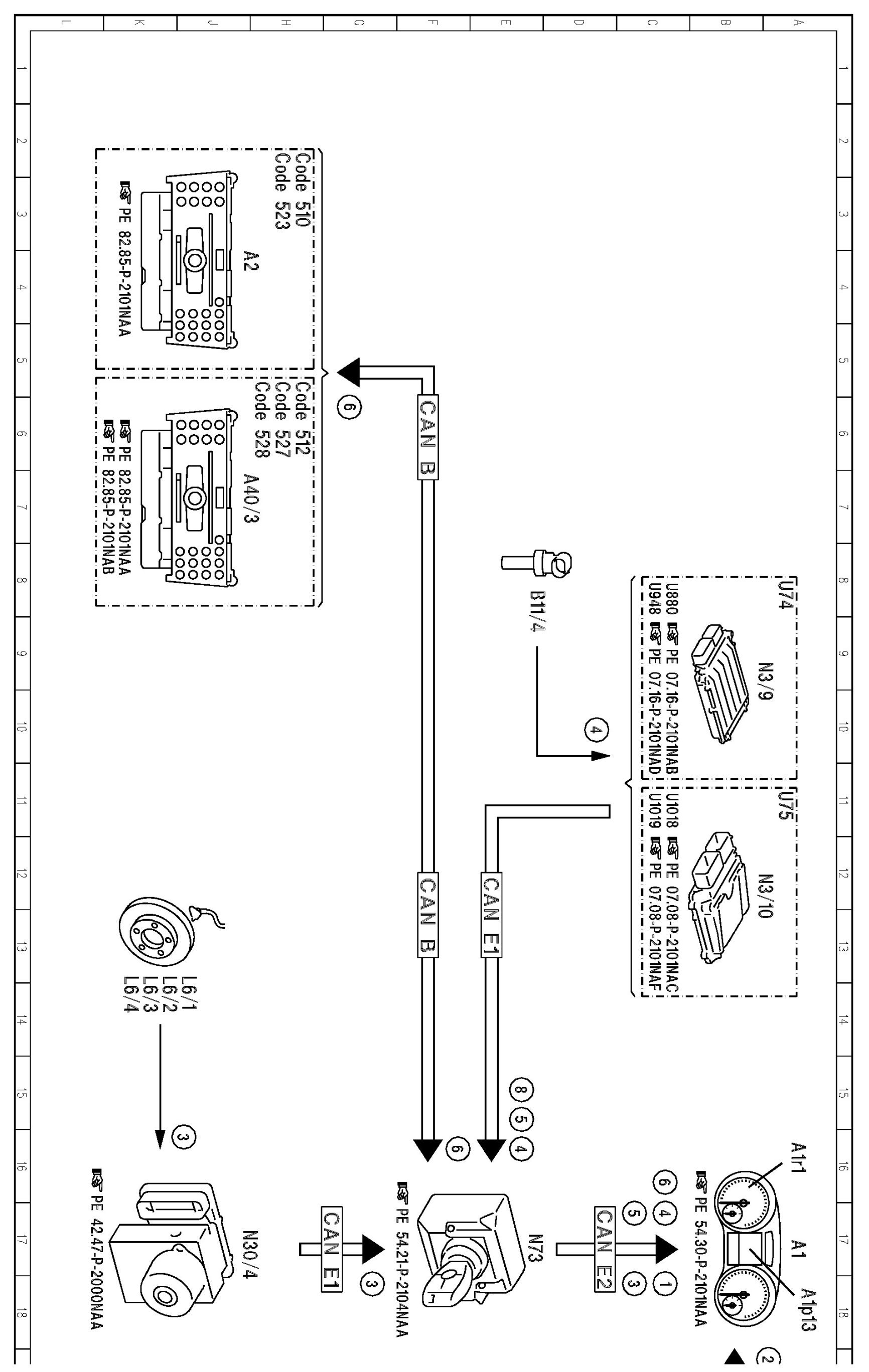

PE54.30-P-2056NAA Electrical Function Schematic Of Instrument Cluster, Comfort Display

PE54.30-P-2056NAA Electrical Function Schematic Of Instrument Cluster, Comfort Display
MODEL 166

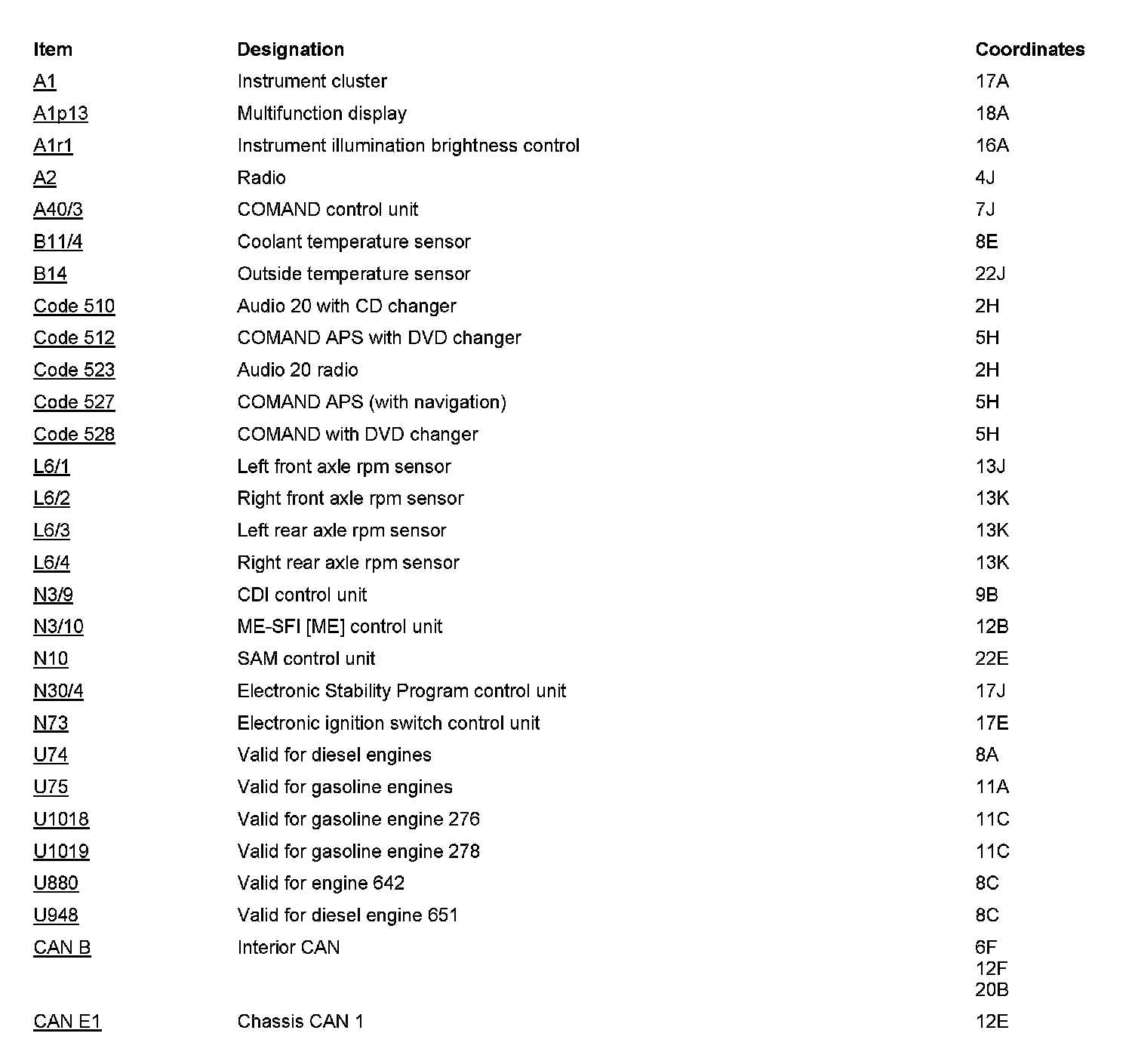

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
