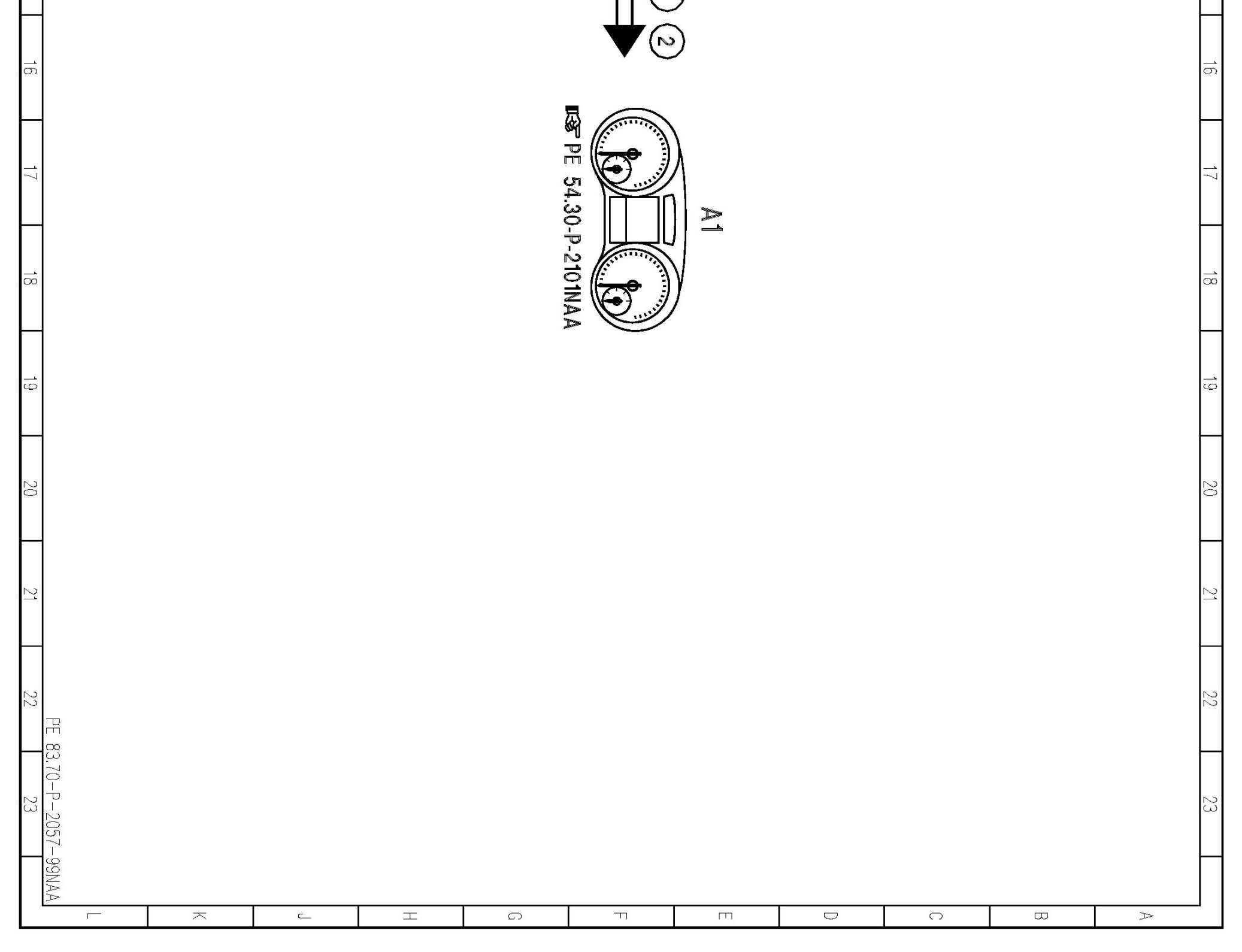

PE83.70-P-2057NAA Electrical Function Schematic, Programming Departure Time

PE83.70-P-2057NAA Electrical Function Schematic, Programming Departure Time
MODEL 166
with CODE (228) Stationary Heater


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
