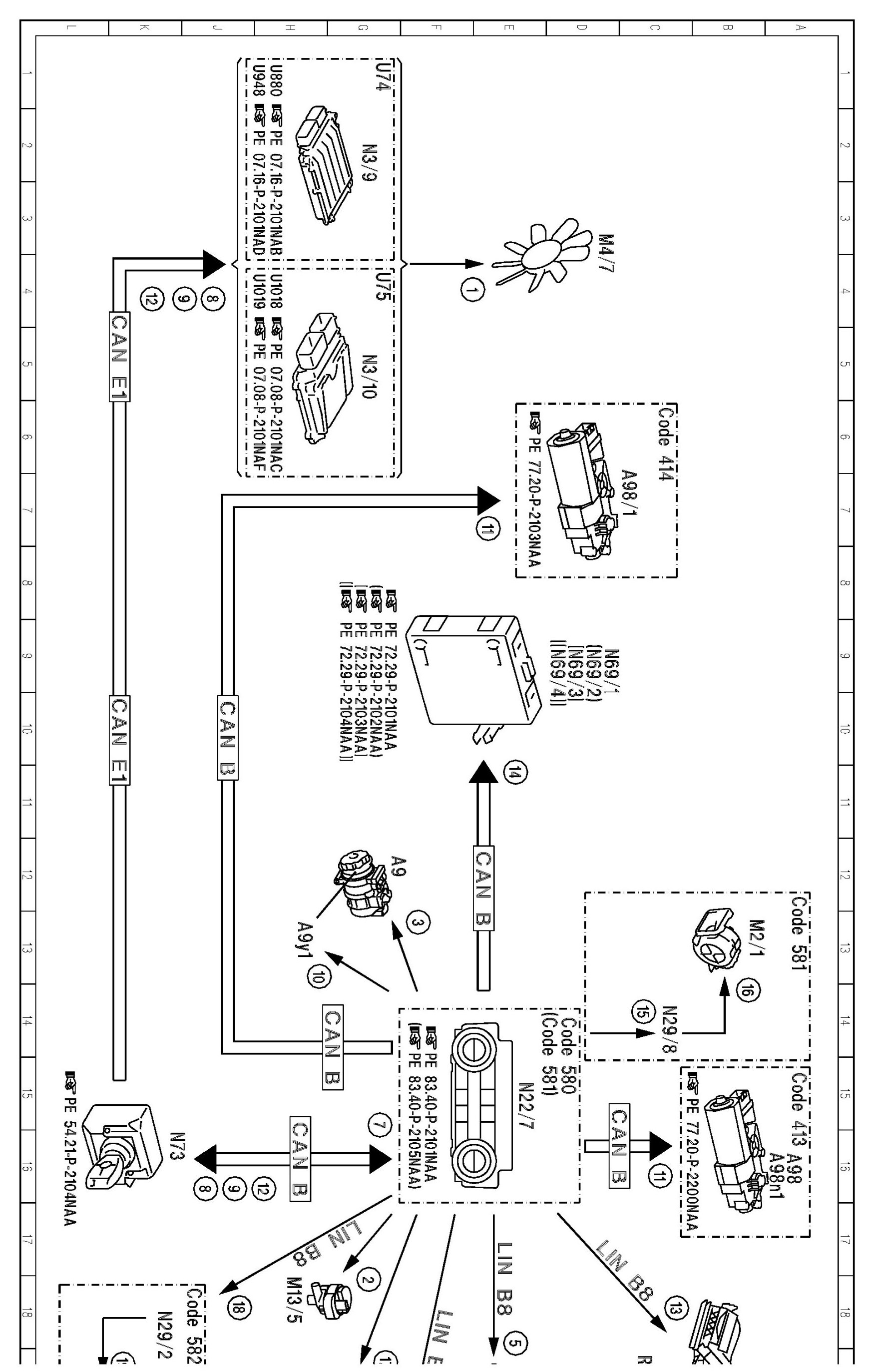

PE83.40-P-2053NAA Electrical Function Schematic For Automatic Air Conditioning, Actuation

PE83.40-P-2053NAA Electrical Function Schematic For Automatic Air Conditioning, Actuation
MODEL 166










































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
