Television / Monitor

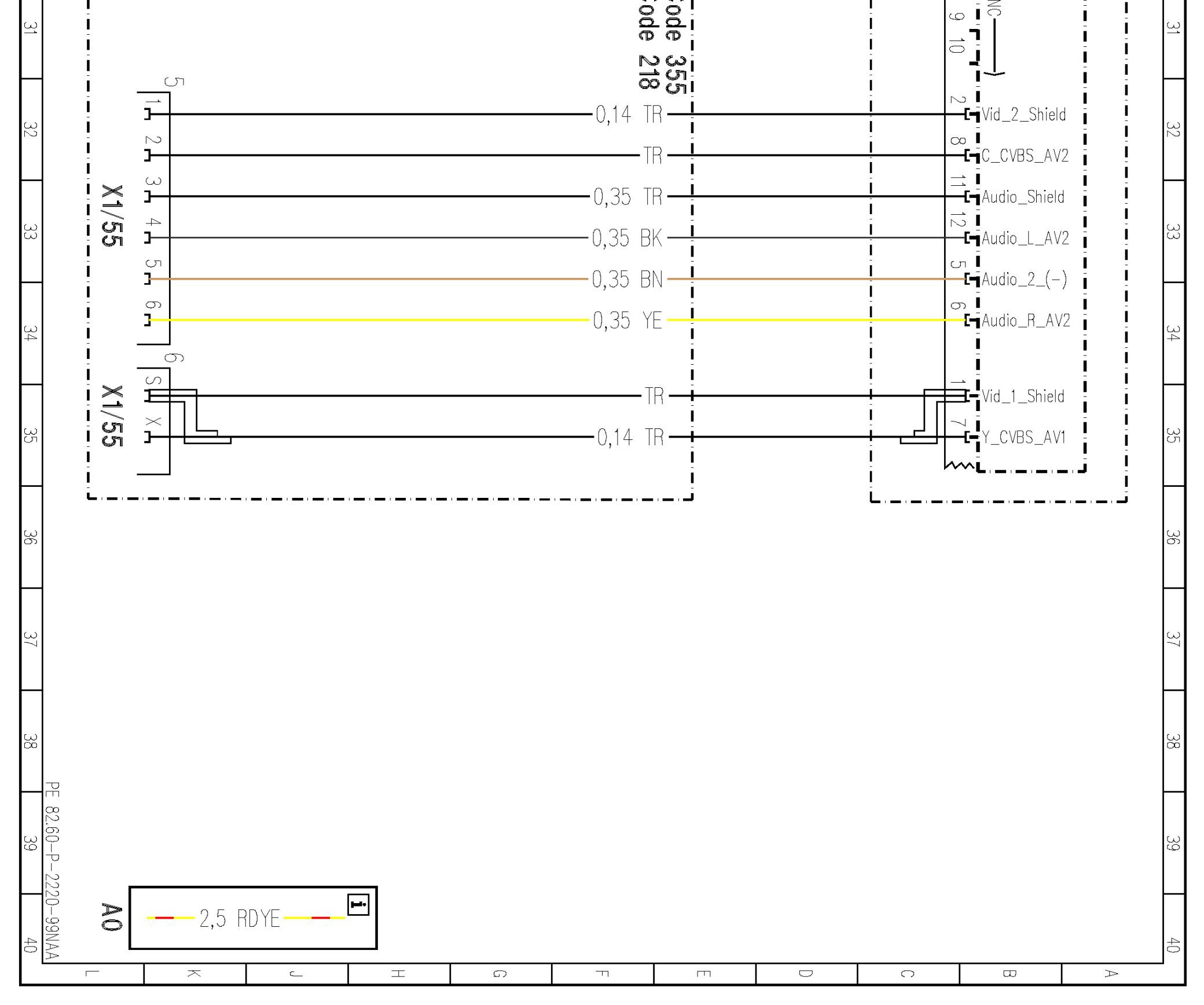

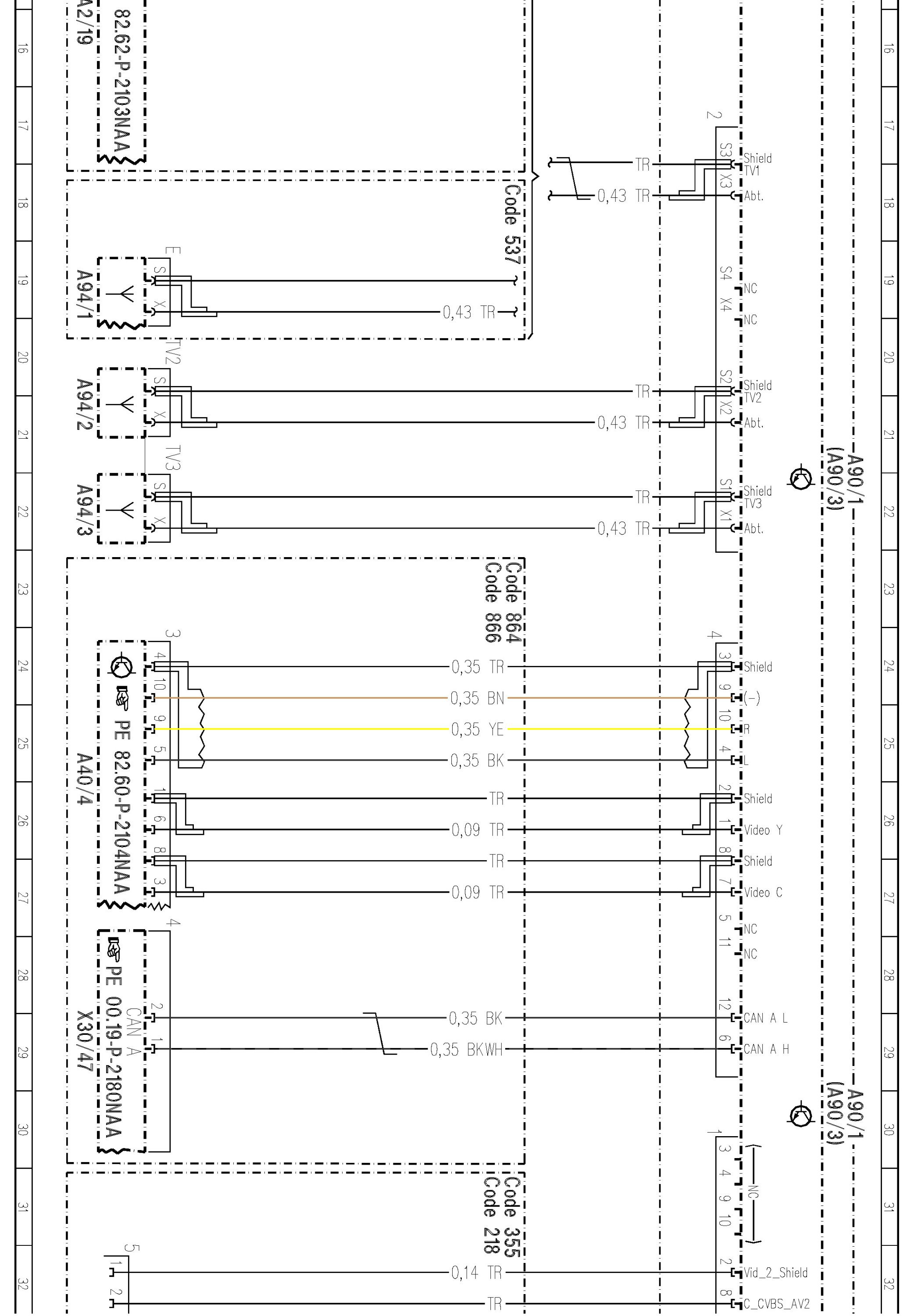

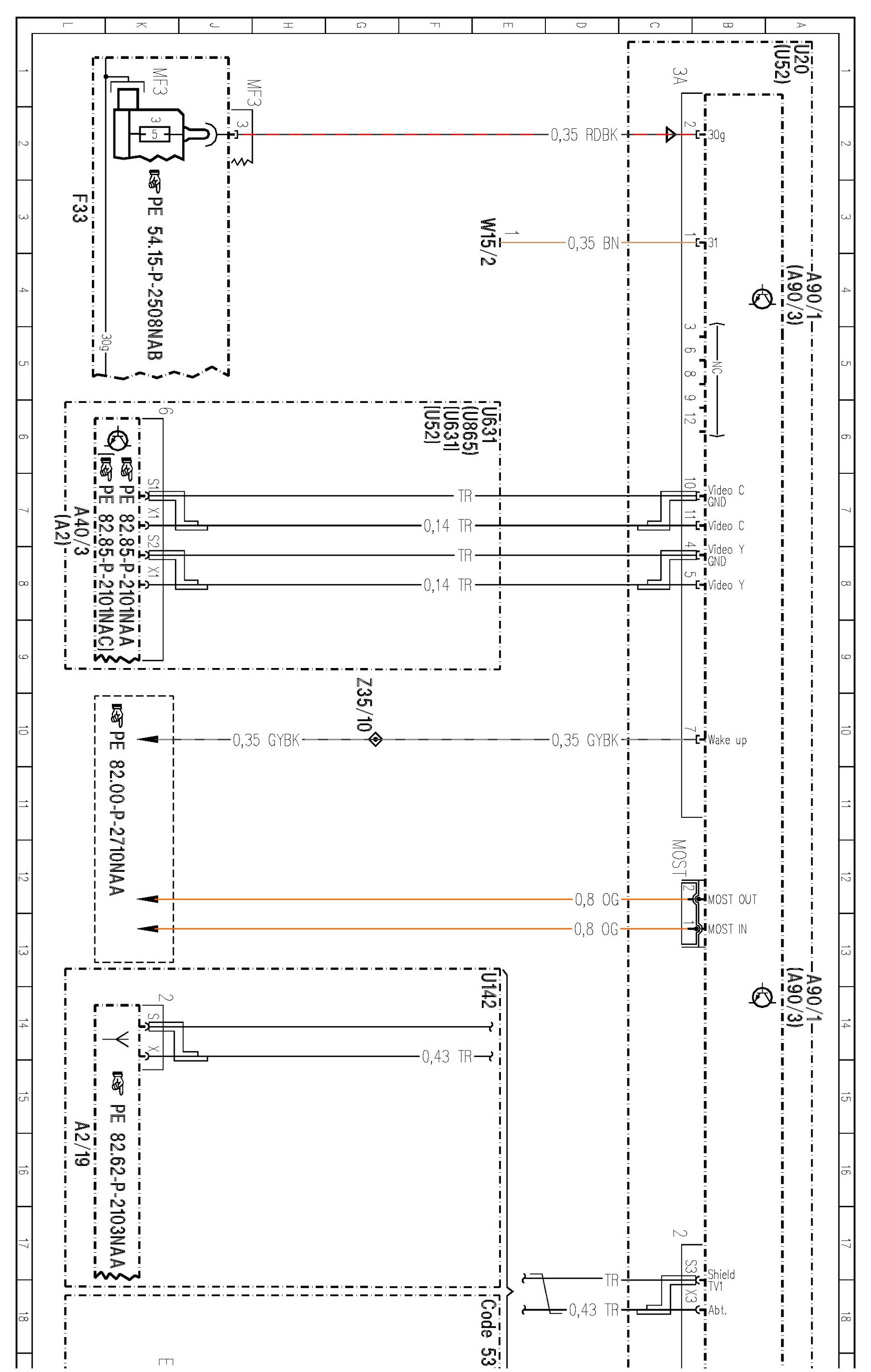

PE82.60-P-2220NAA TV Tuner
MODEL 166
- with CODE (863) Digital/Analog TV Tuner
- except CODE (498) Japan Version
- up to model year 2013
- Control Unit A90/1
MODEL 166
- with CODE (865) TV Tuner
- with CODE (498) Japan Version
- up to model year 2013
- Control Unit A90/3
MODEL 166
- with CODE (865) TV Tuner
- as of model year 2013
- Control Unit A90/1,
- Control Unit A90/3


































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
