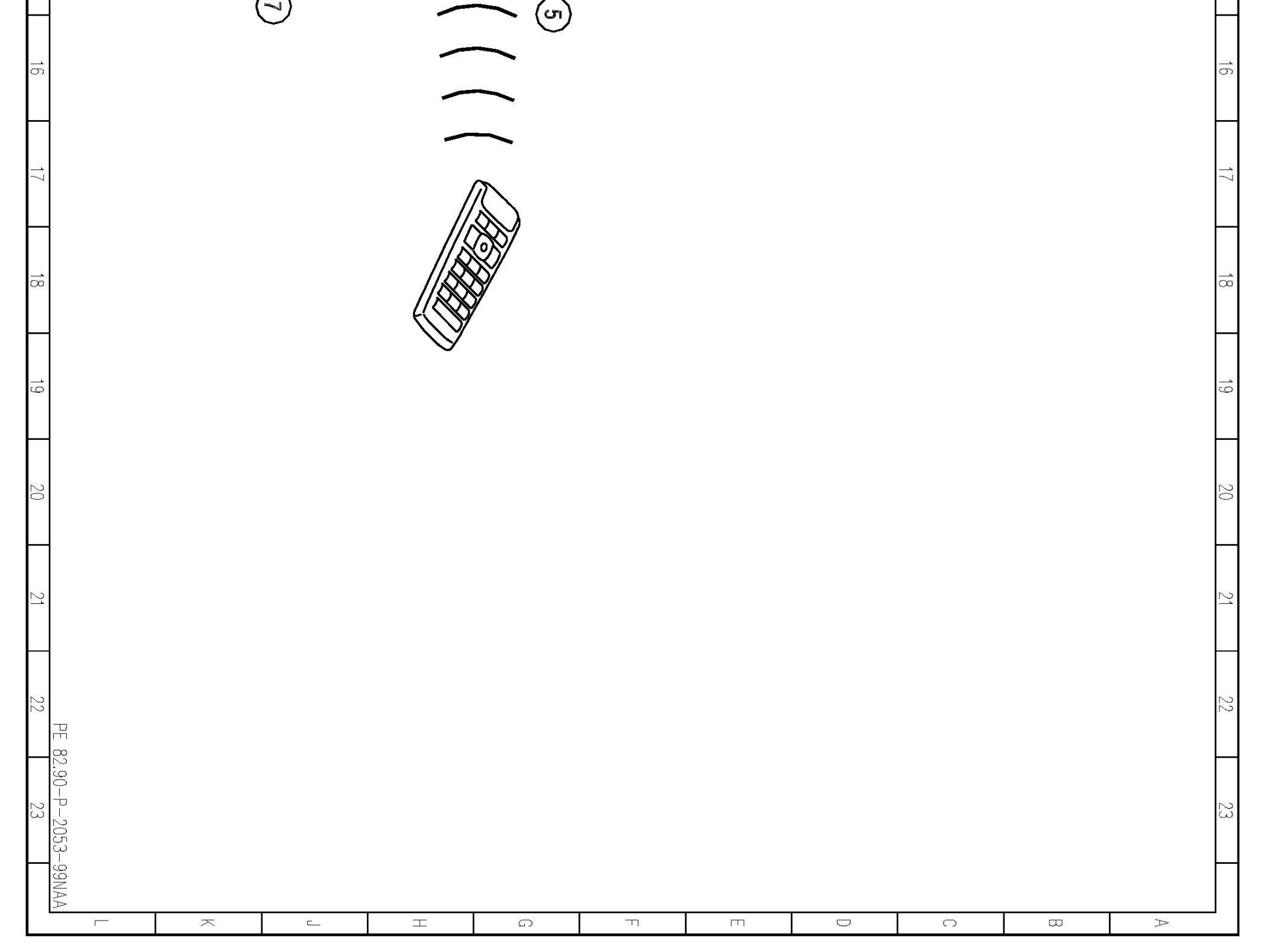

PE82.90-P-2053NAA Electrical Function Schematic For Rear Entertainment TV Reception

PE82.90-P-2053NAA Electrical Function Schematic For Rear Entertainment TV Reception
MODEL 166
with CODE (864) Rear Entertainment System


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
