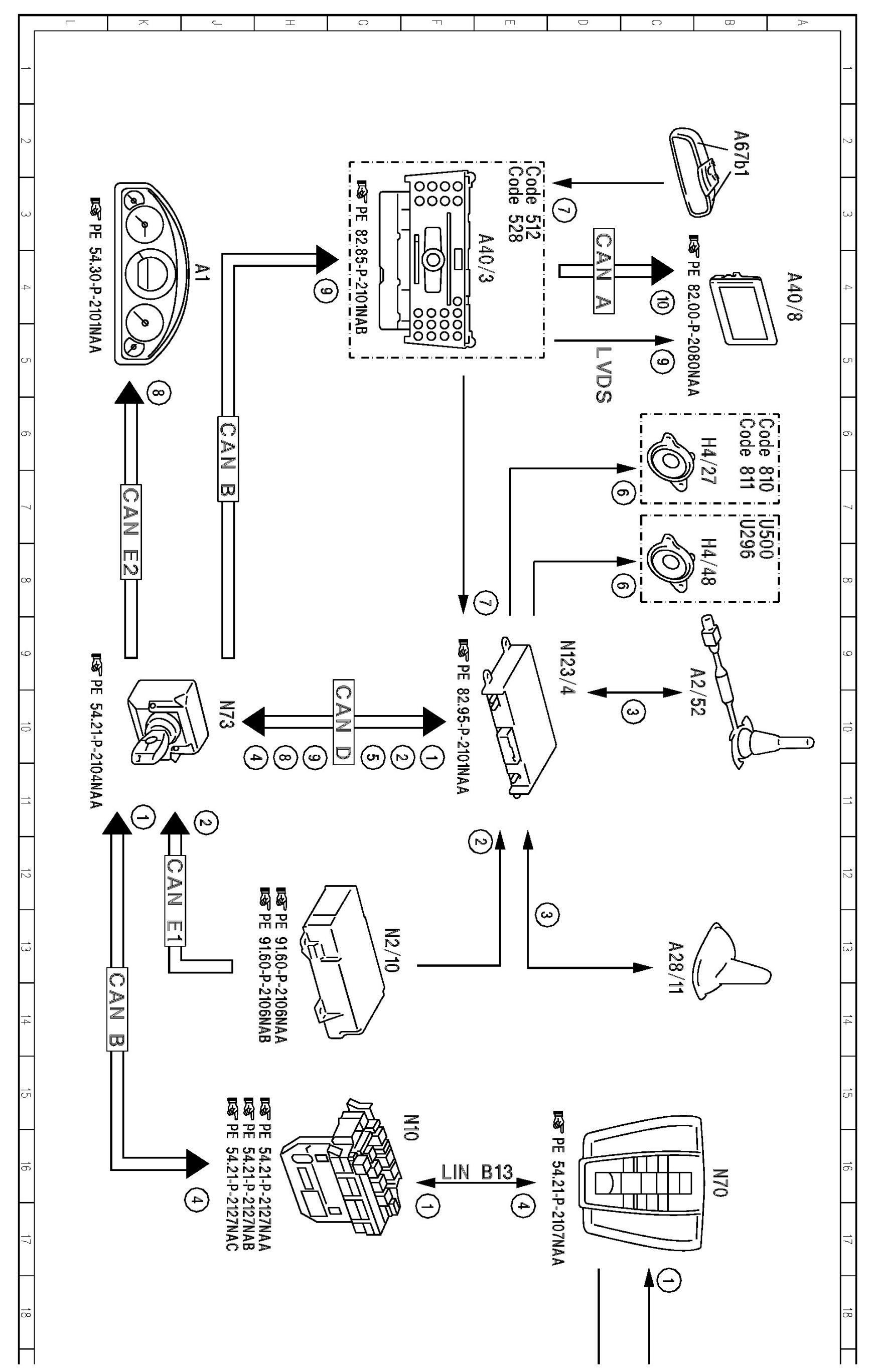

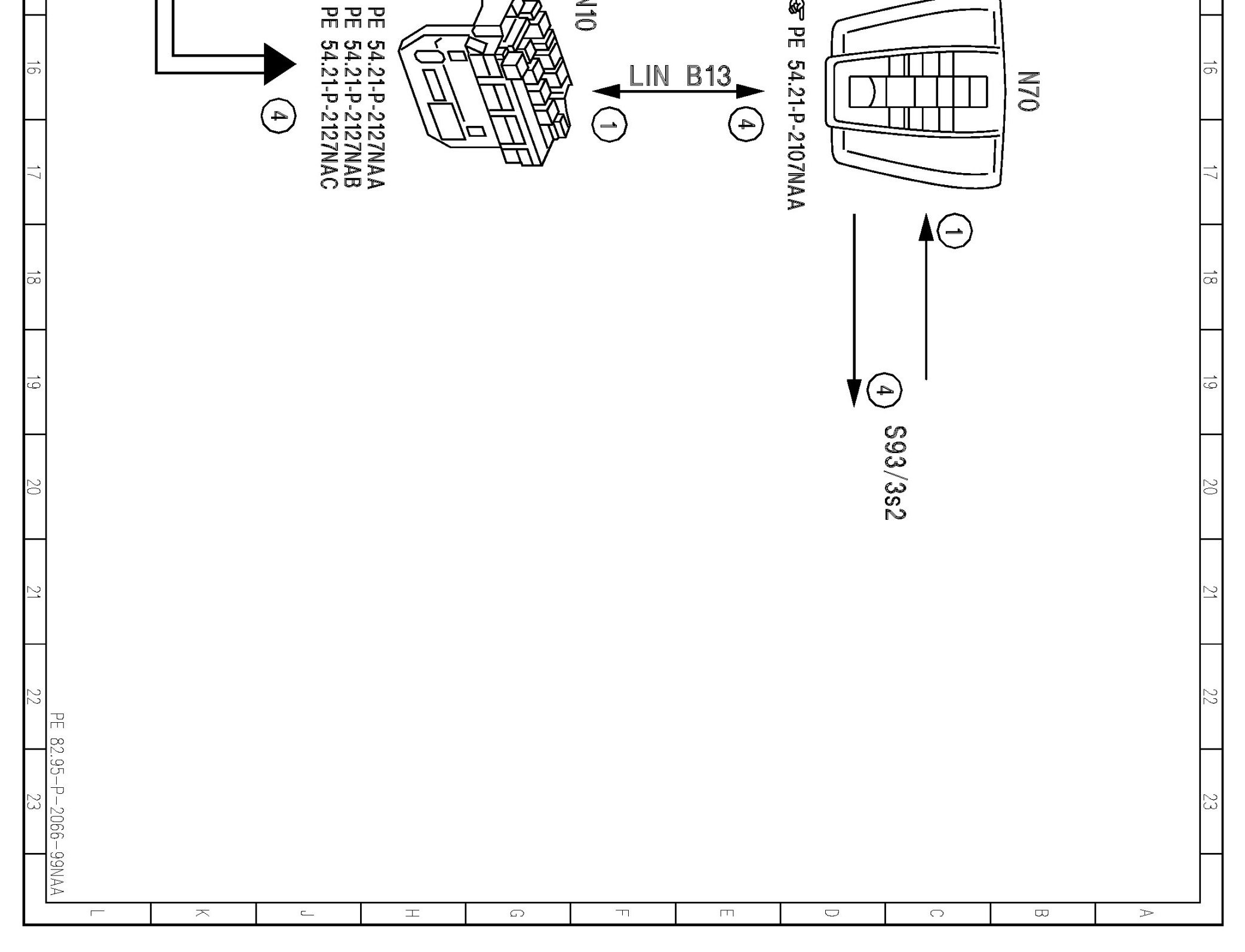

PE82.95-P-2066NAA Electrical Function Diagram For Manual Or Automatic Emergency Call, Function

PE82.95-P-2066NAA Electrical Function Diagram For Manual Or Automatic Emergency Call, Function
MODEL 166
with CODE (359) TELEAID Emergency Call System














































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
