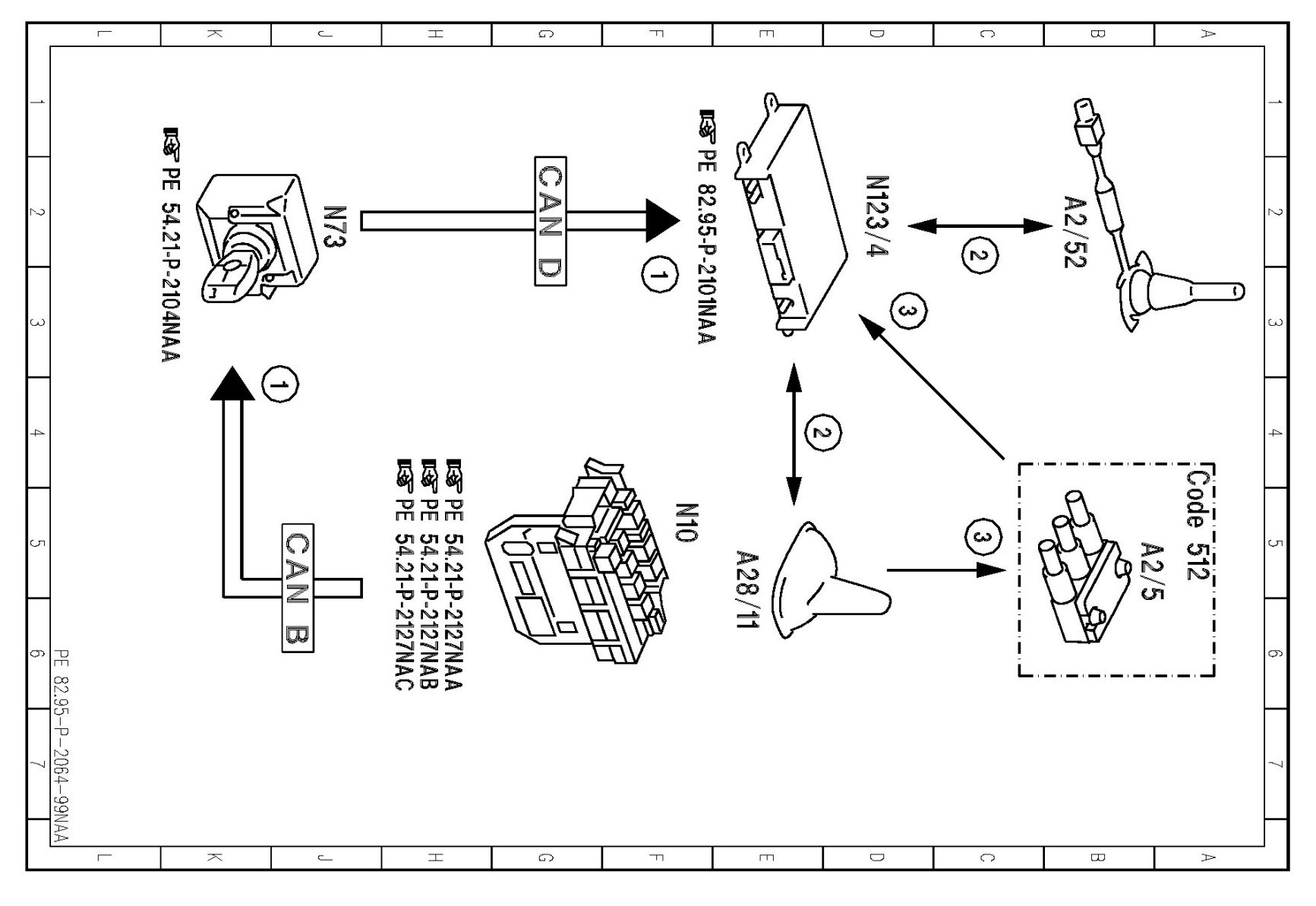

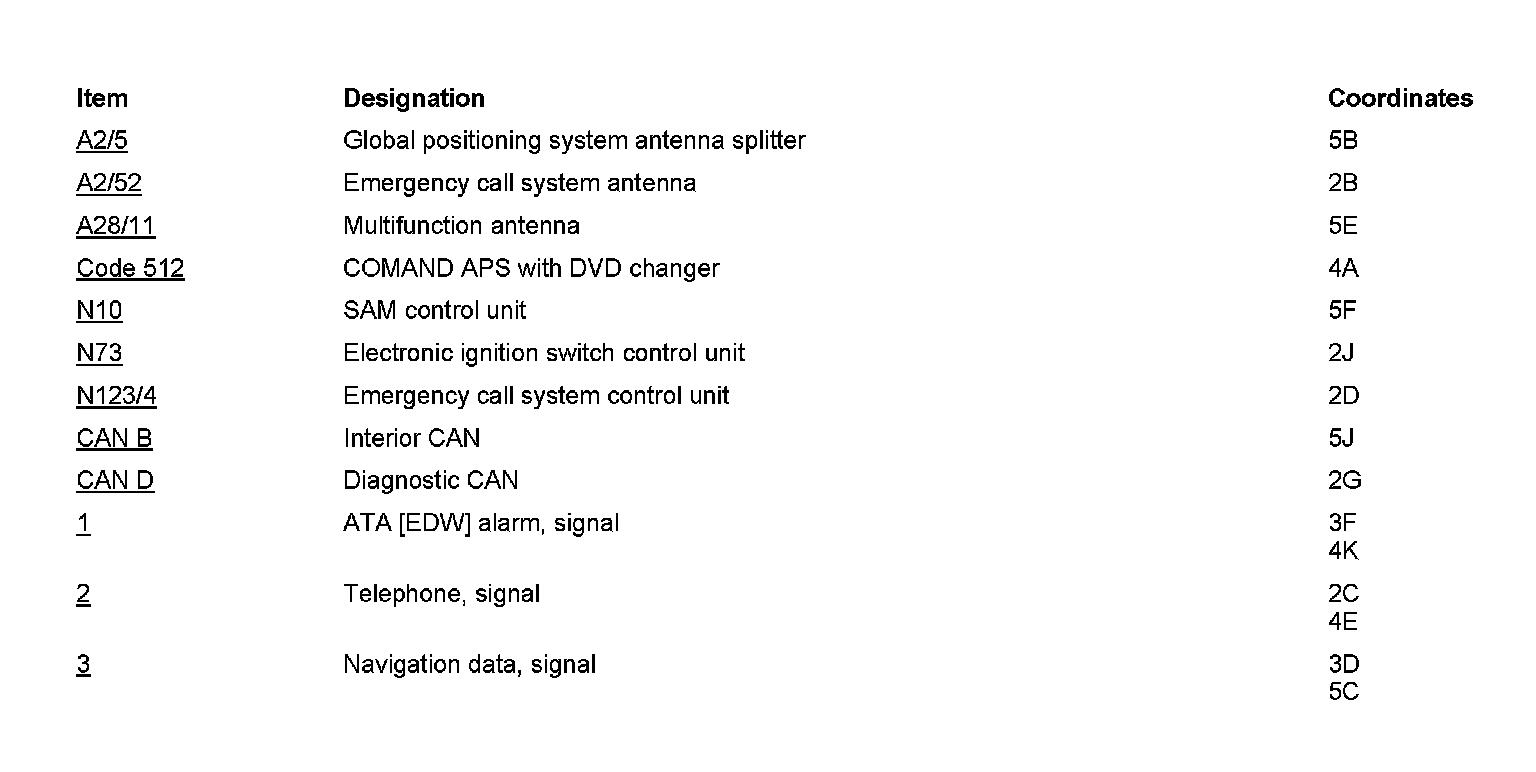

PE82.95-P-2064NAA Electrical Function Diagram For Vehicle Location, Function

PE82.95-P-2064NAA Electrical Function Diagram For Vehicle Location, Function
MODEL 166
with CODE (359) TELEAID Emergency Call System

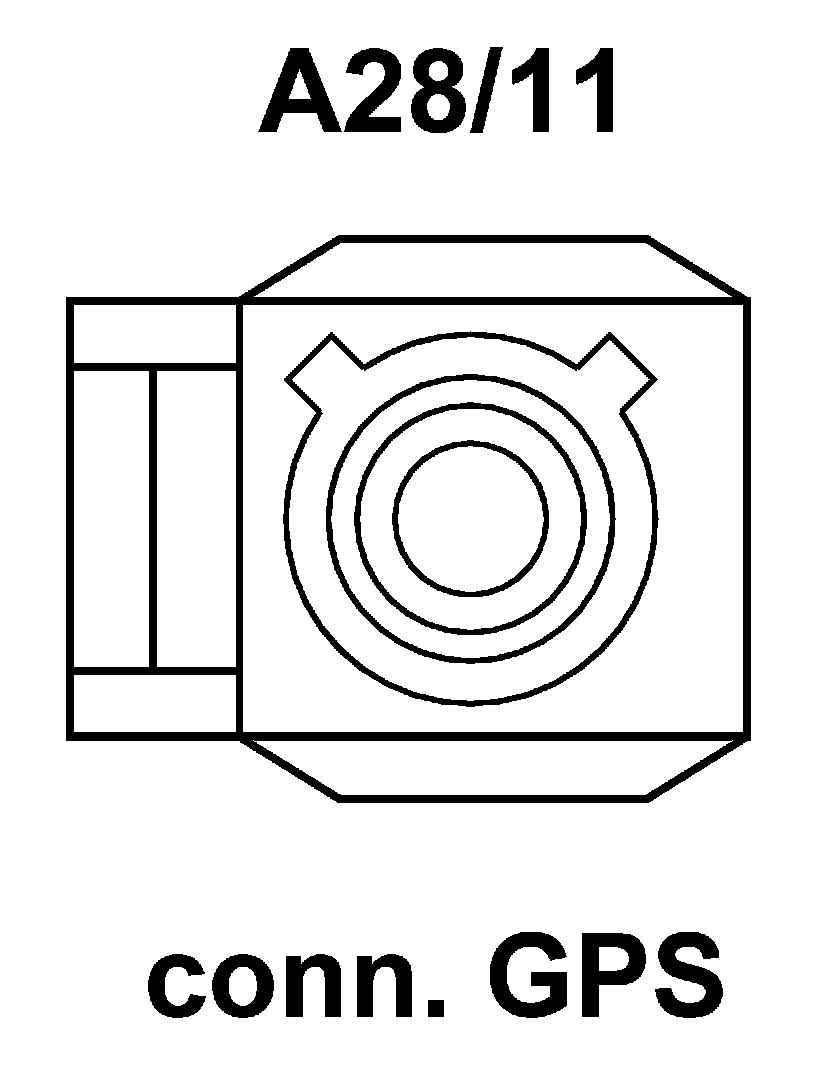

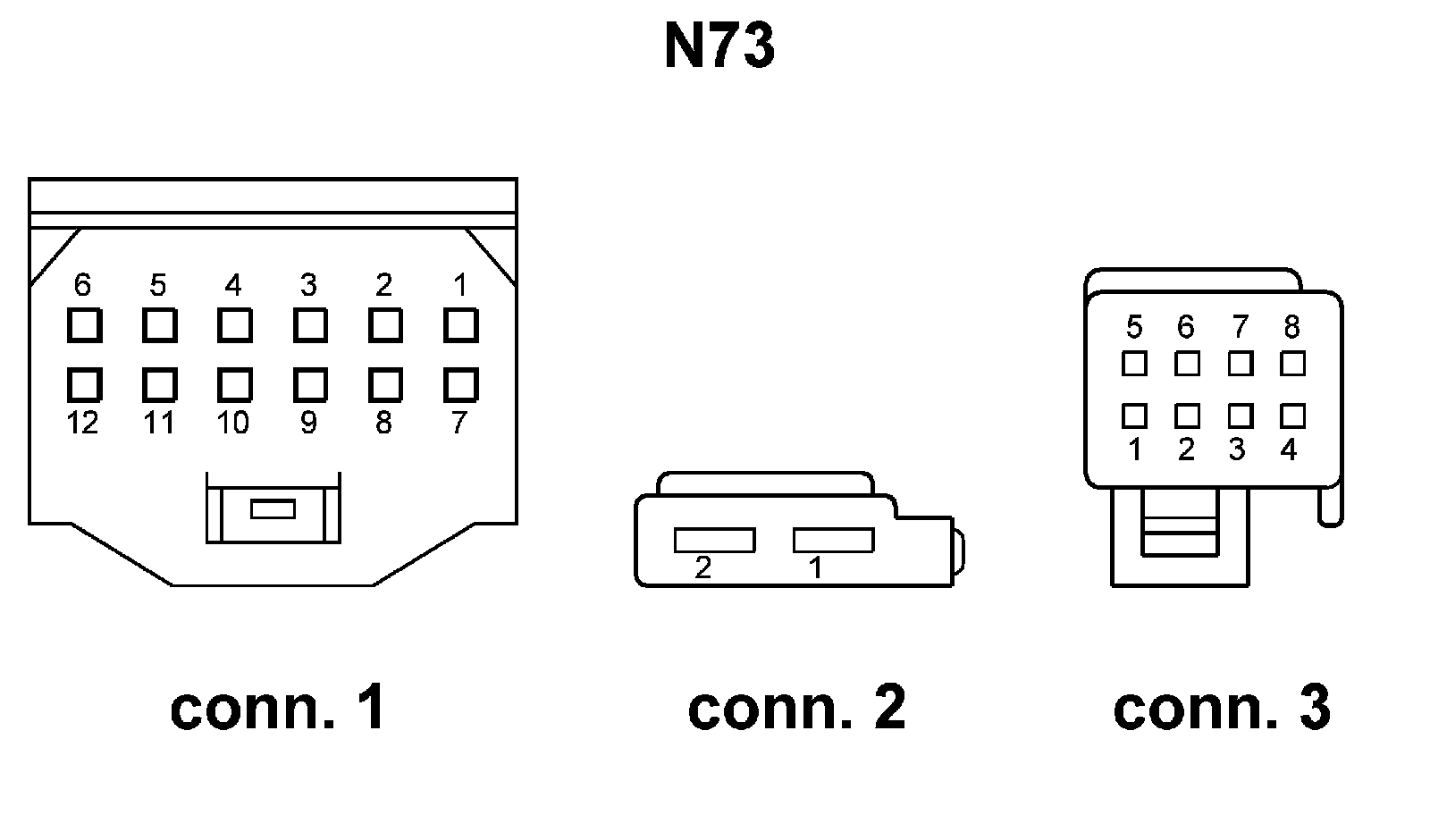

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
