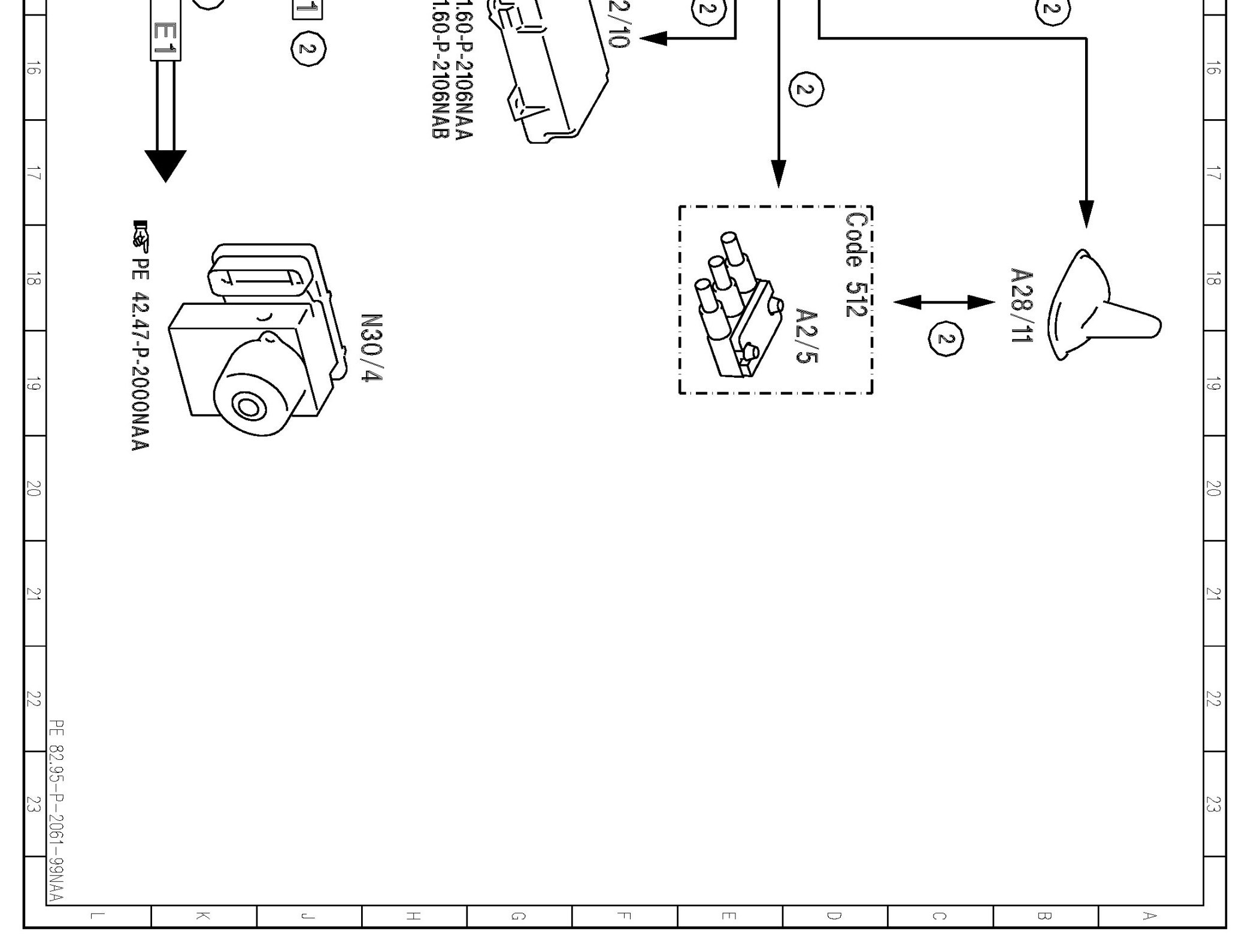

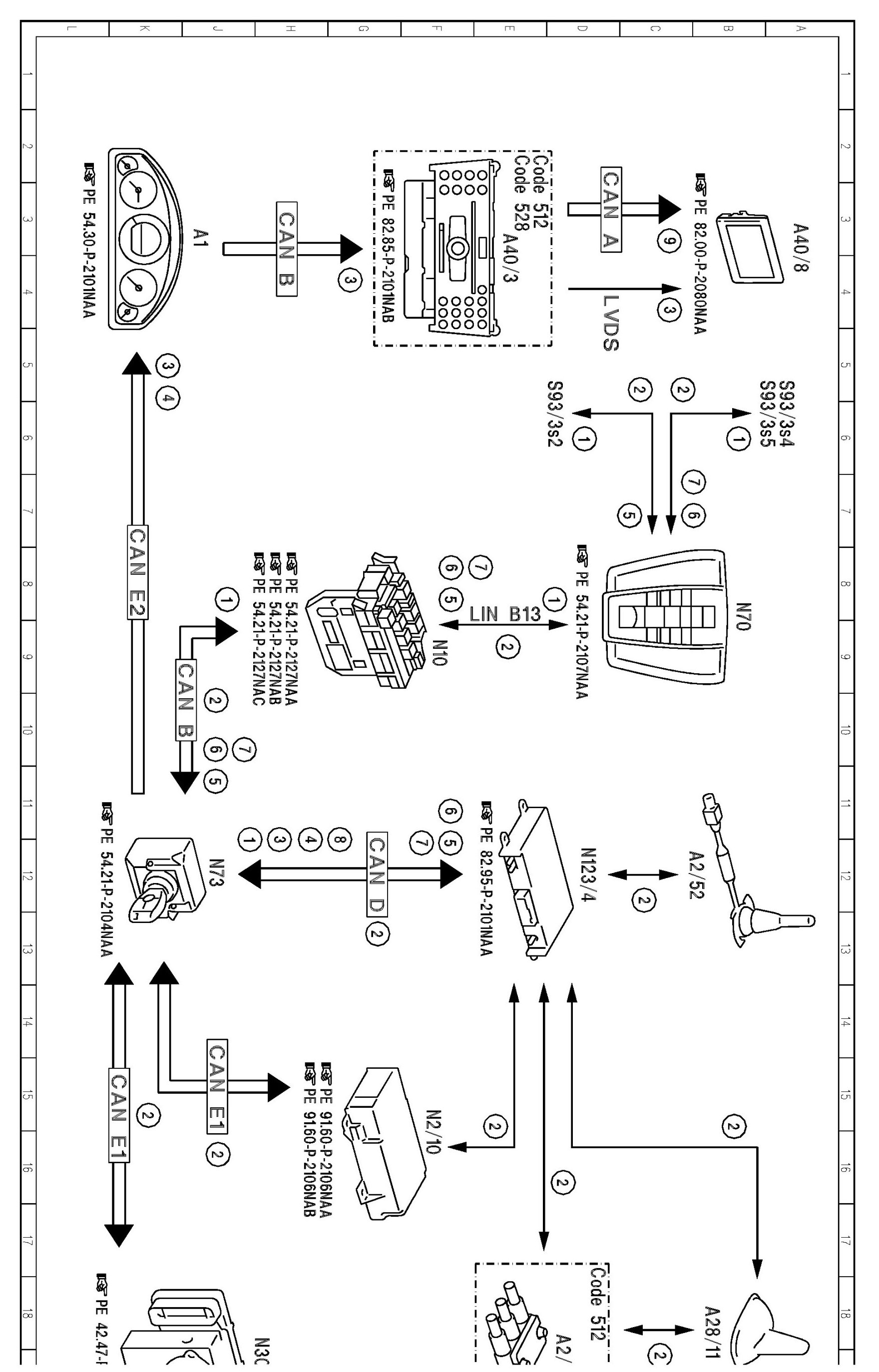

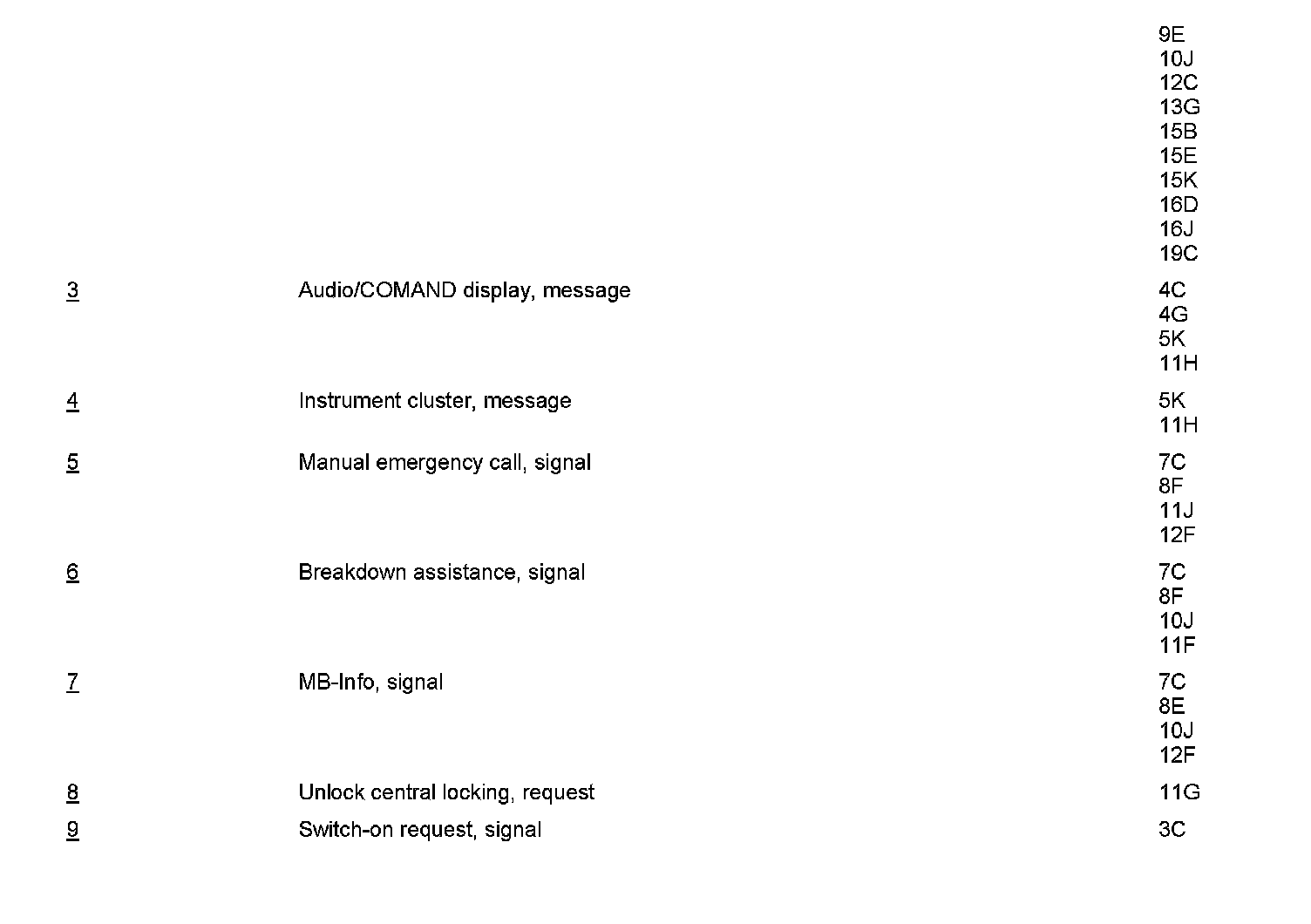

PE82.95-P-2061NAA Electrical Function Diagram For Status Display Of Emergency Call System, Function

PE82.95-P-2061NAA Electrical Function Diagram For Status Display Of Emergency Call System, Function
MODEL 166
with CODE (359) TELEAID Emergency Call System

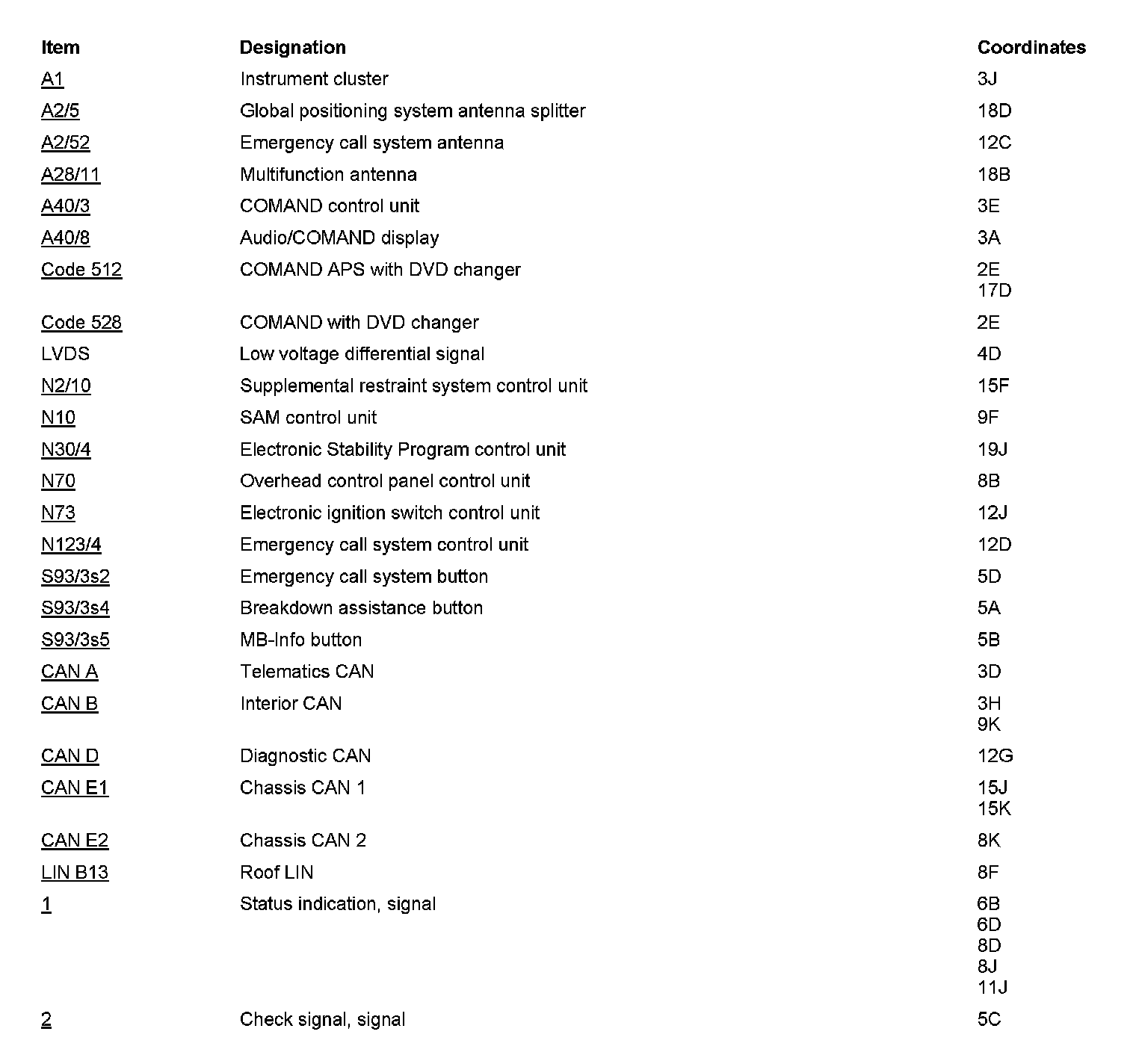

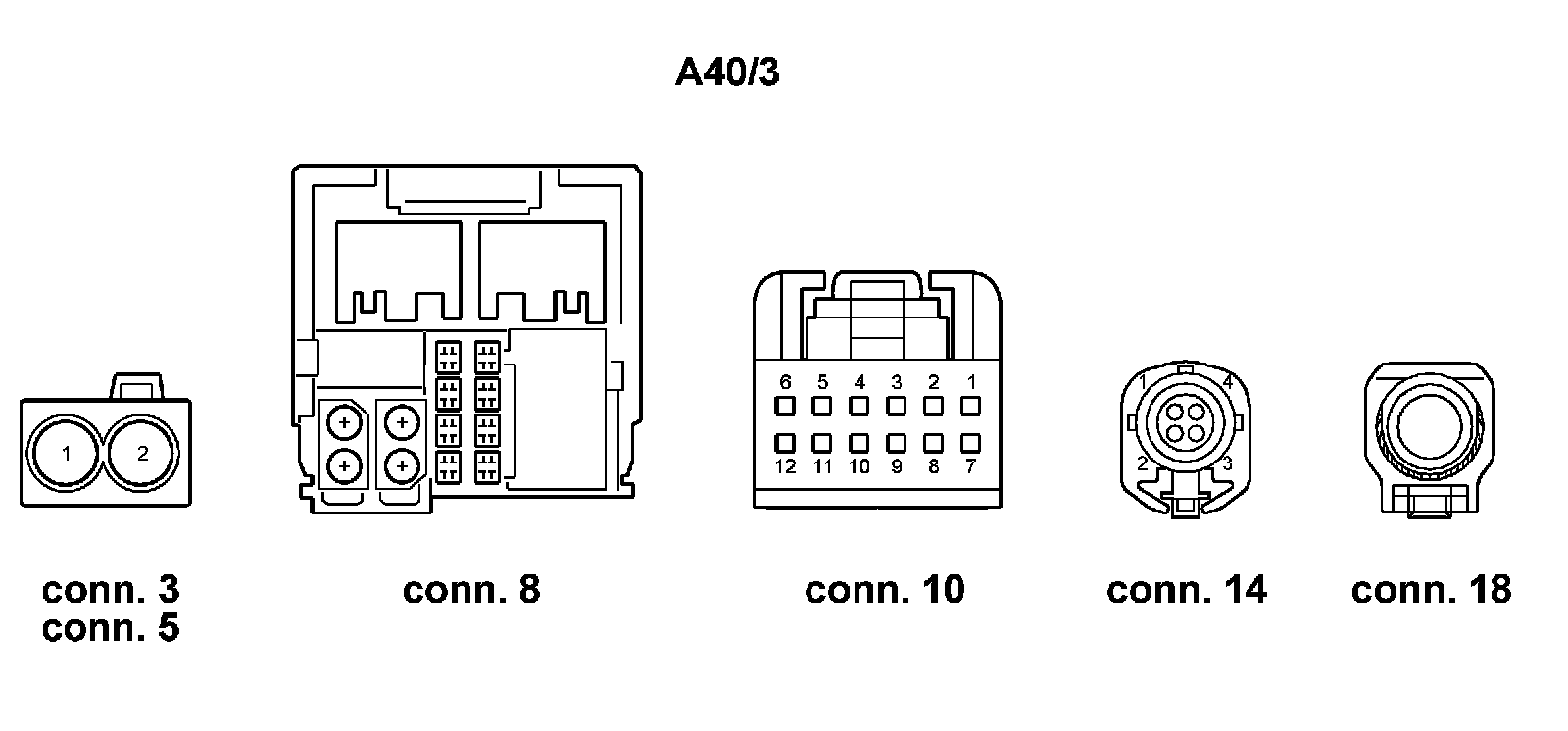

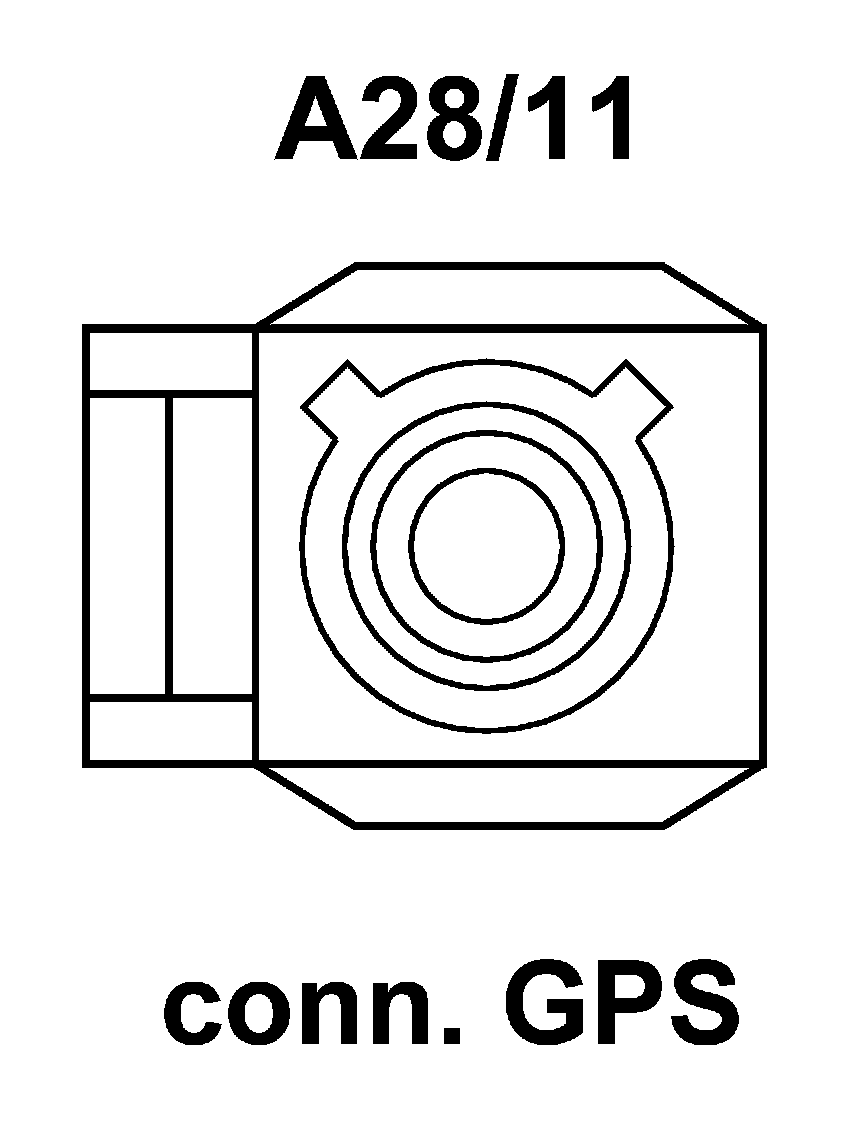

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
