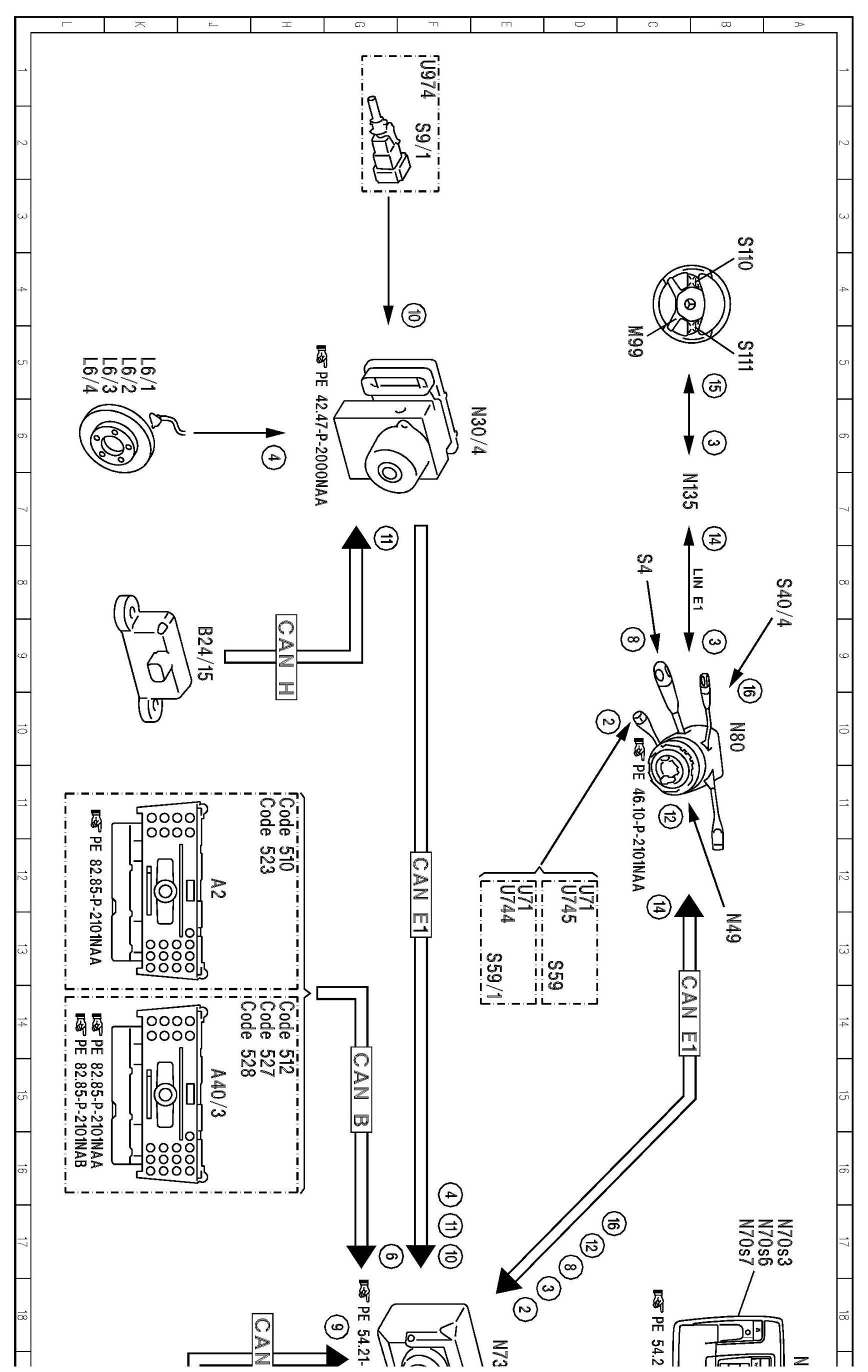

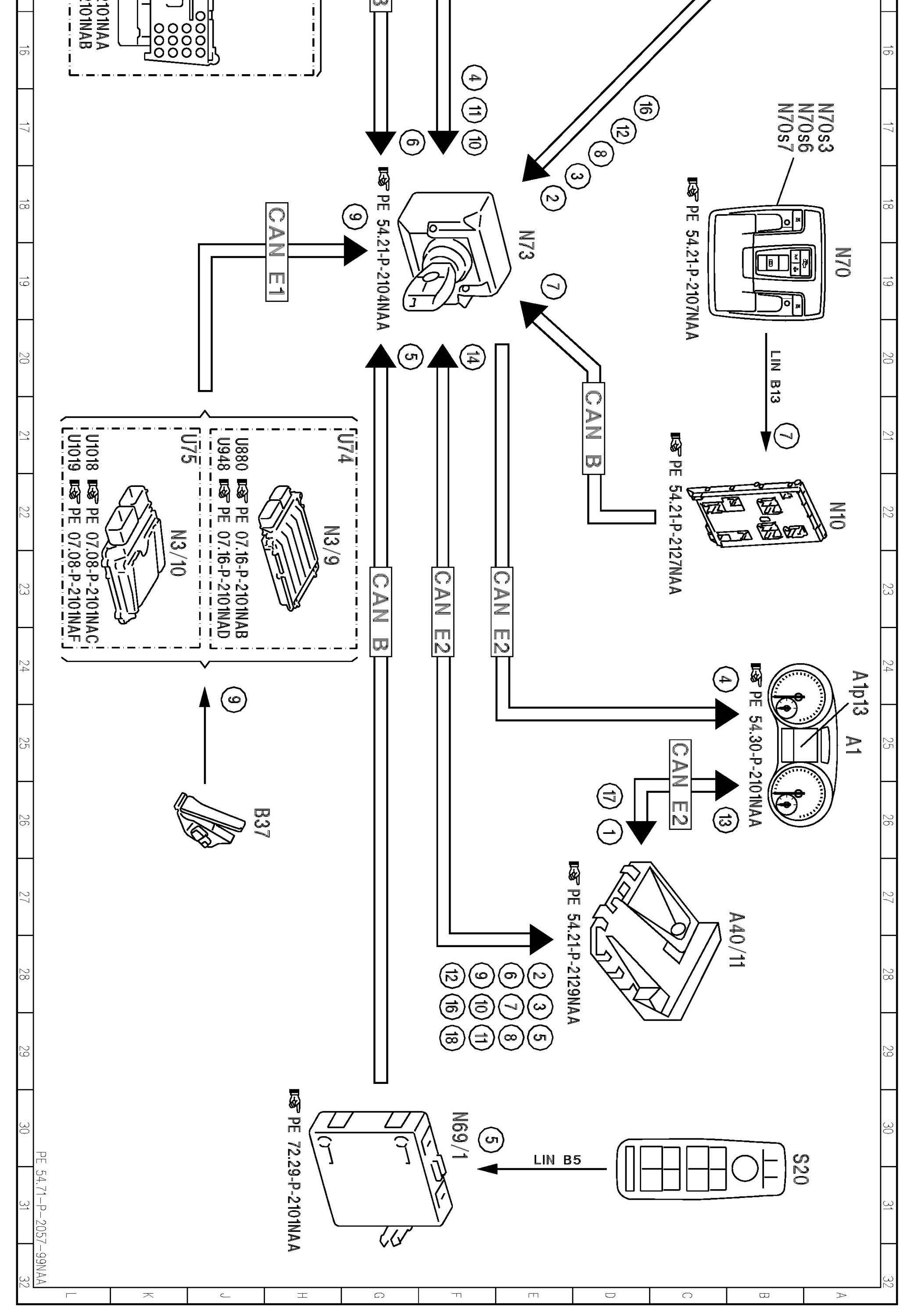

PE54.71-P-2057NAA Electrical Function Schematic For Lane Keeping Assist

PE54.71-P-2057NAA Electrical Function Schematic For Lane Keeping Assist
MODEL 166
with CODE (476) Active Lane Keeping Assist

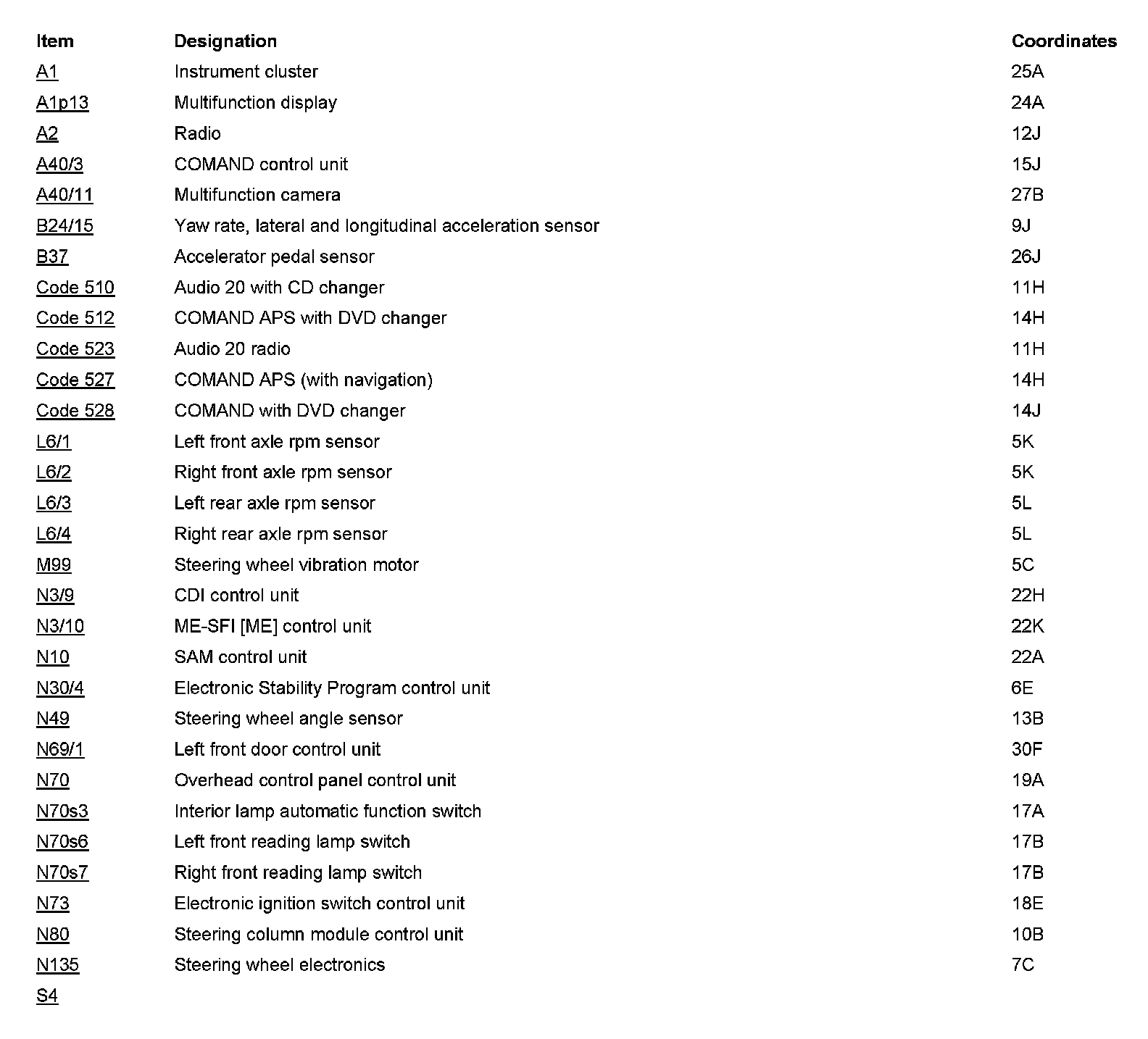

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
