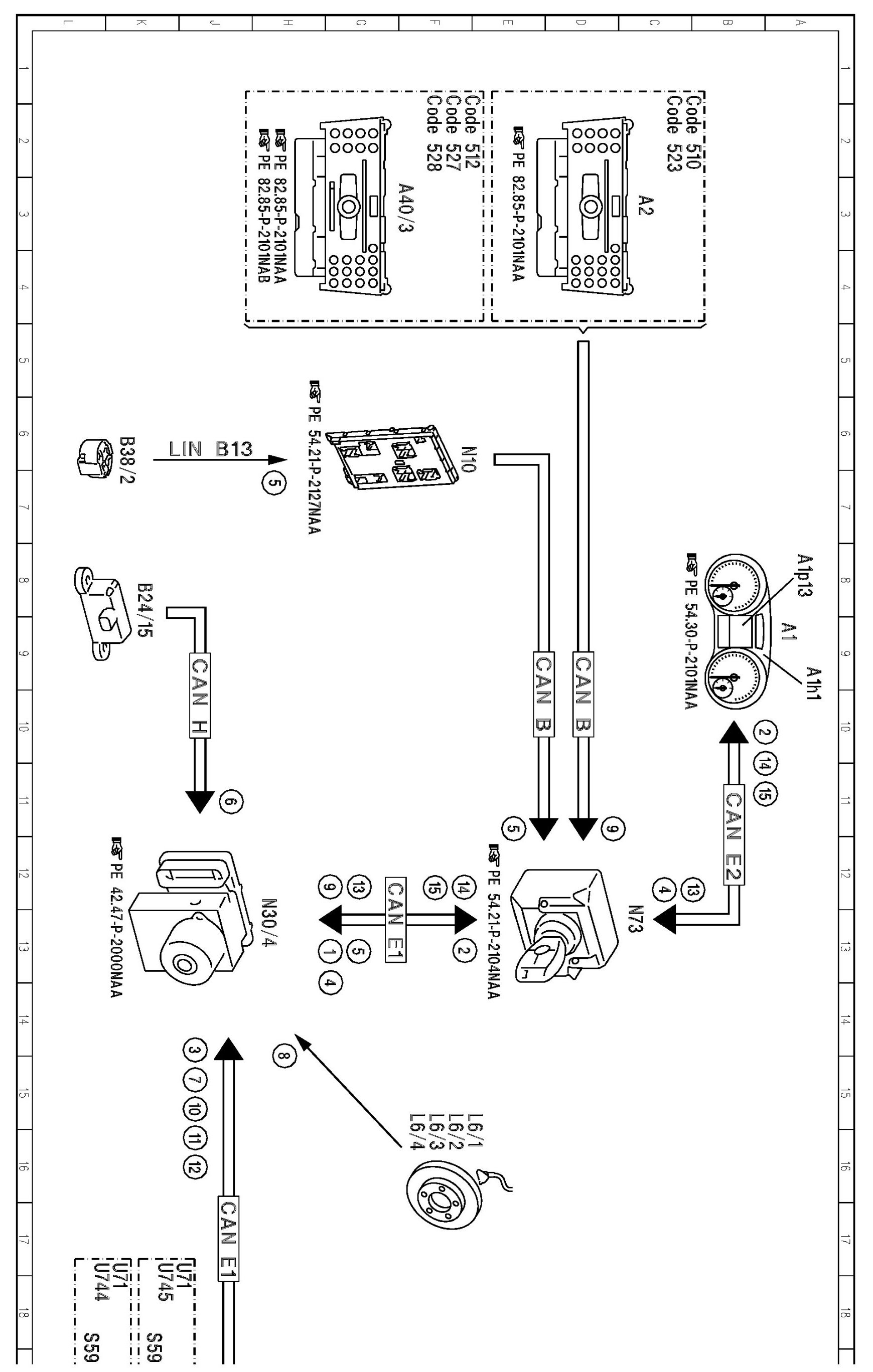

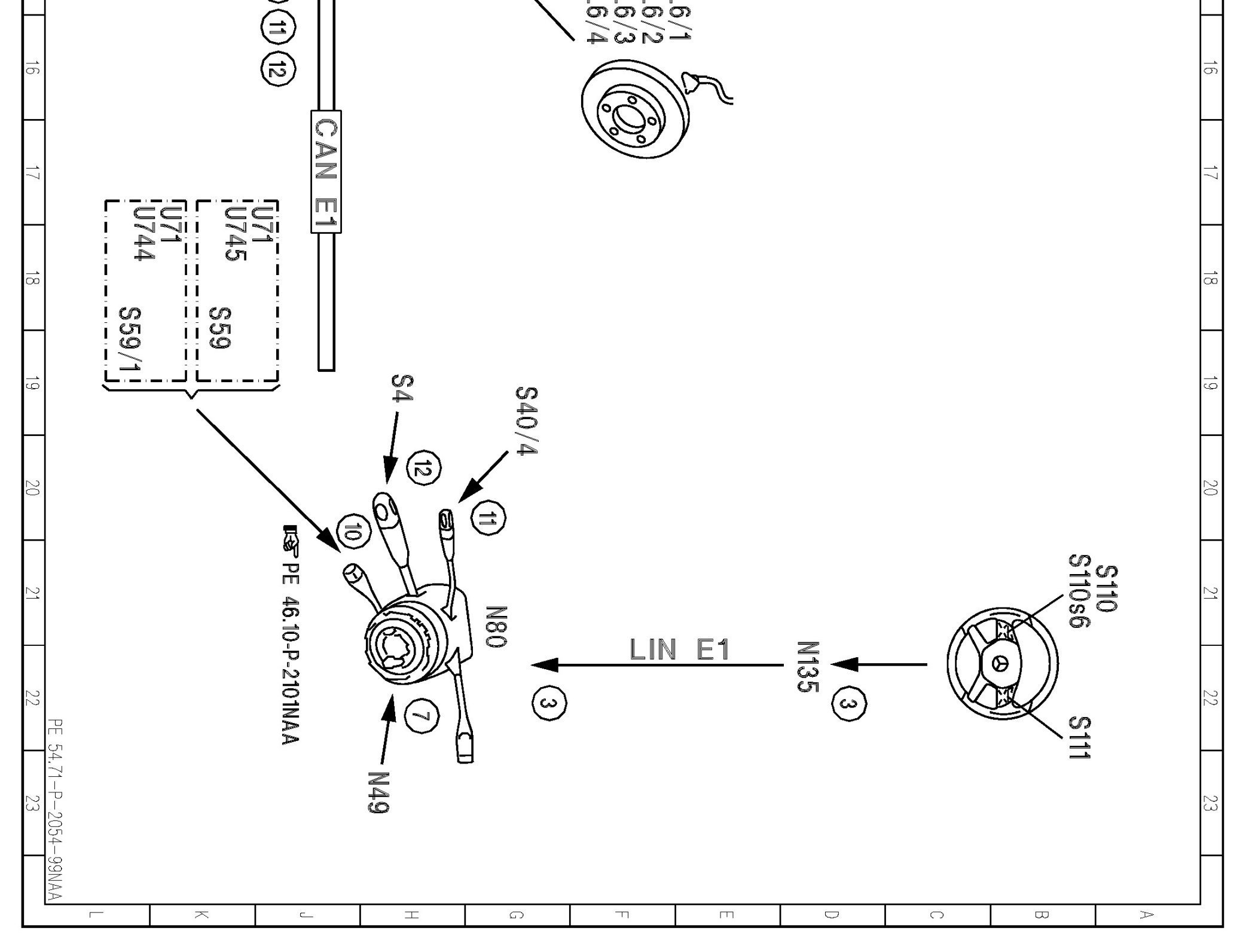

PE54.71-P-2054NAA Attention Assist Electrical Function Schematic

PE54.71-P-2054NAA Attention Assist Electrical Function Schematic
MODEL 166














































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
