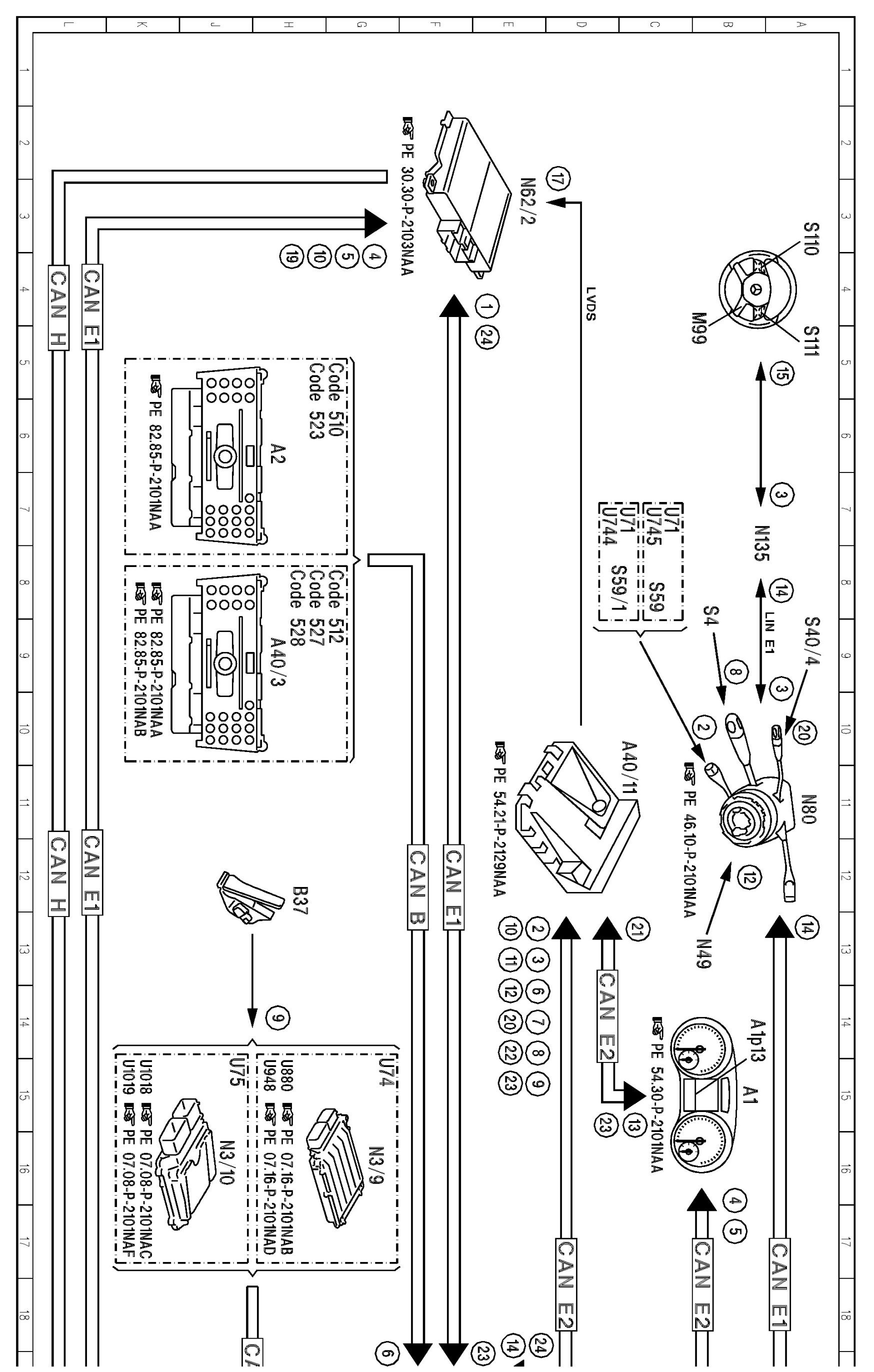

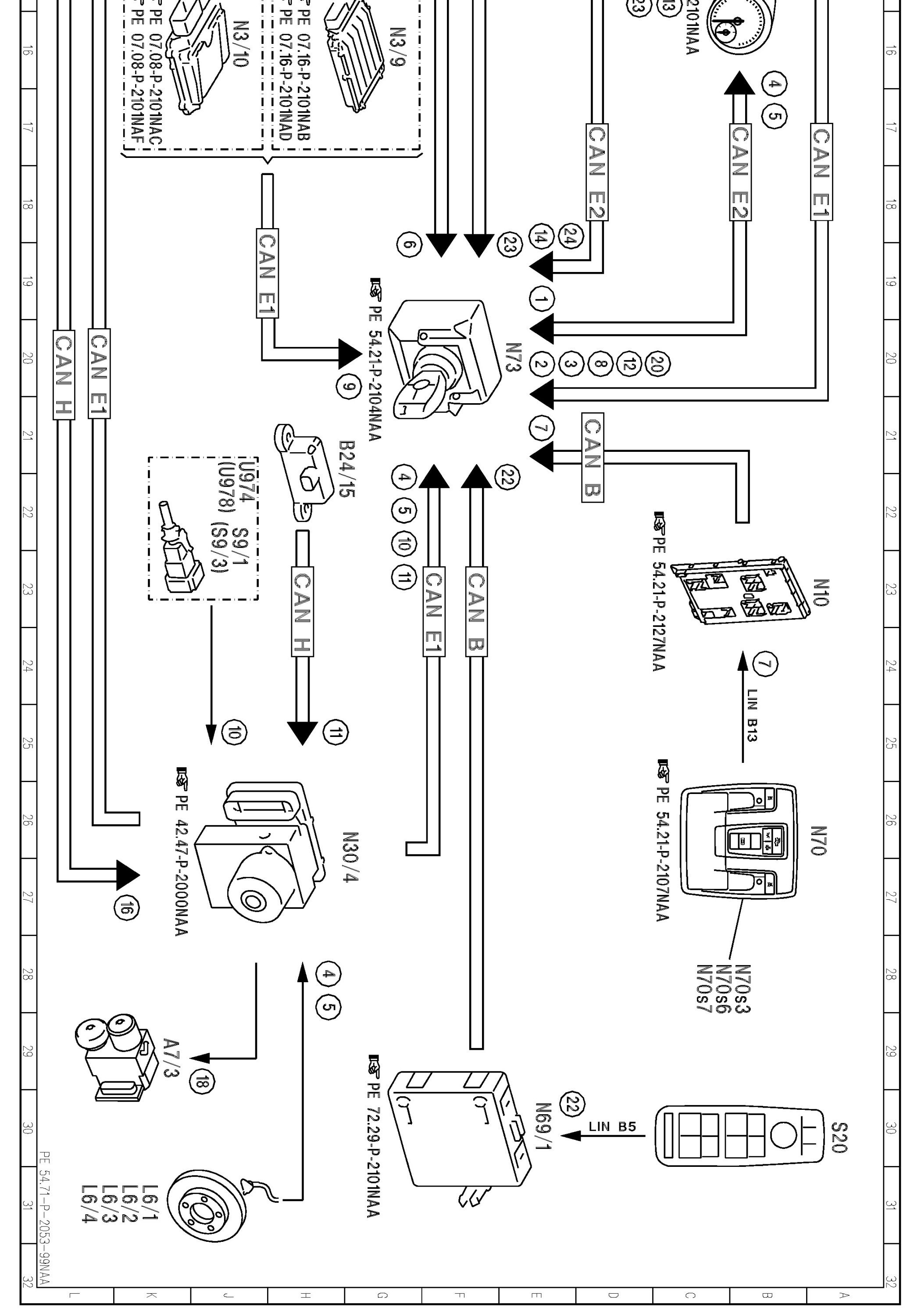

PE54.71-P-2053NAA Electrical Function Schematic For Active Lane Keeping Assist

PE54.71-P-2053NAA Electrical Function Schematic For Active Lane Keeping Assist
MODEL 166
with CODE (238) Active Lane Keeping Assist

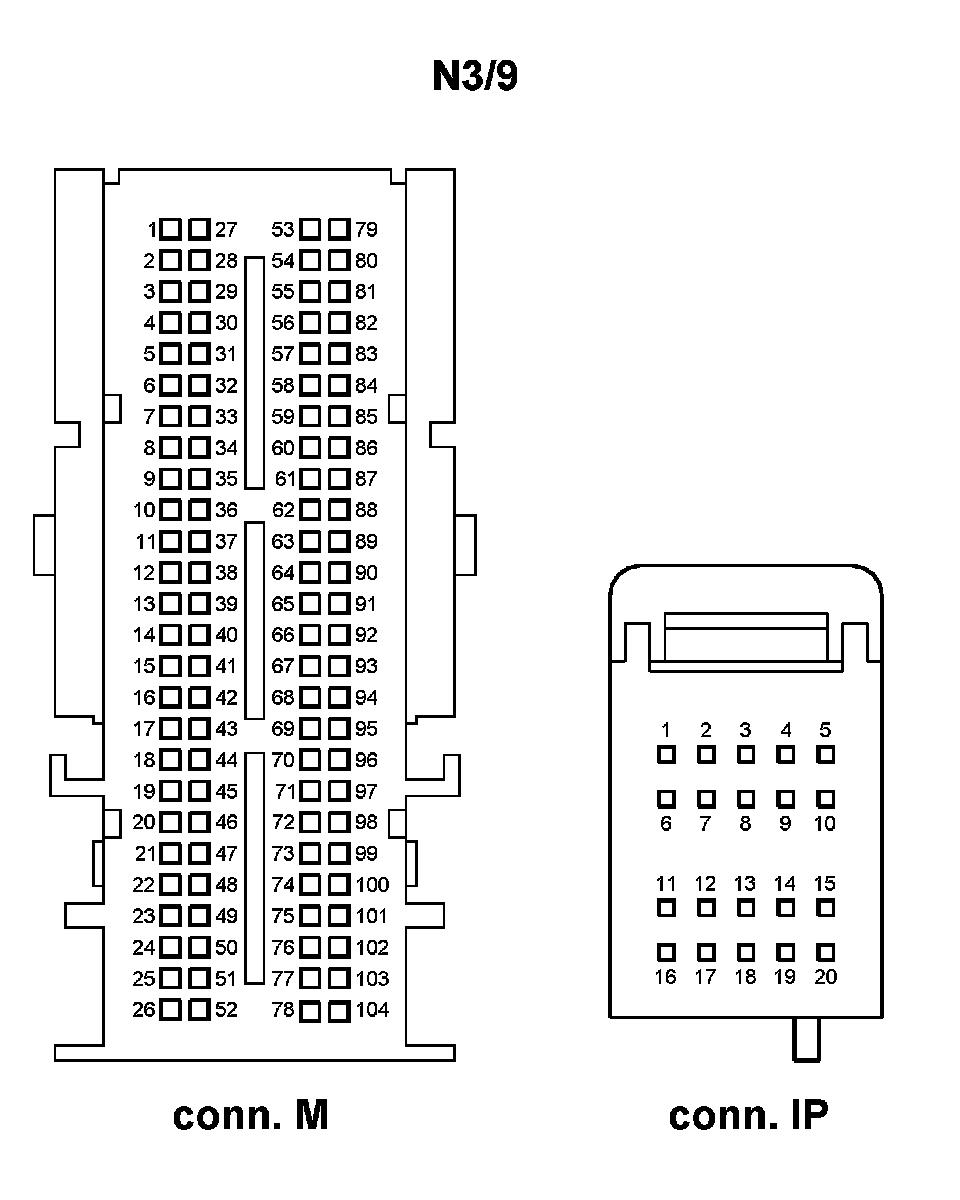

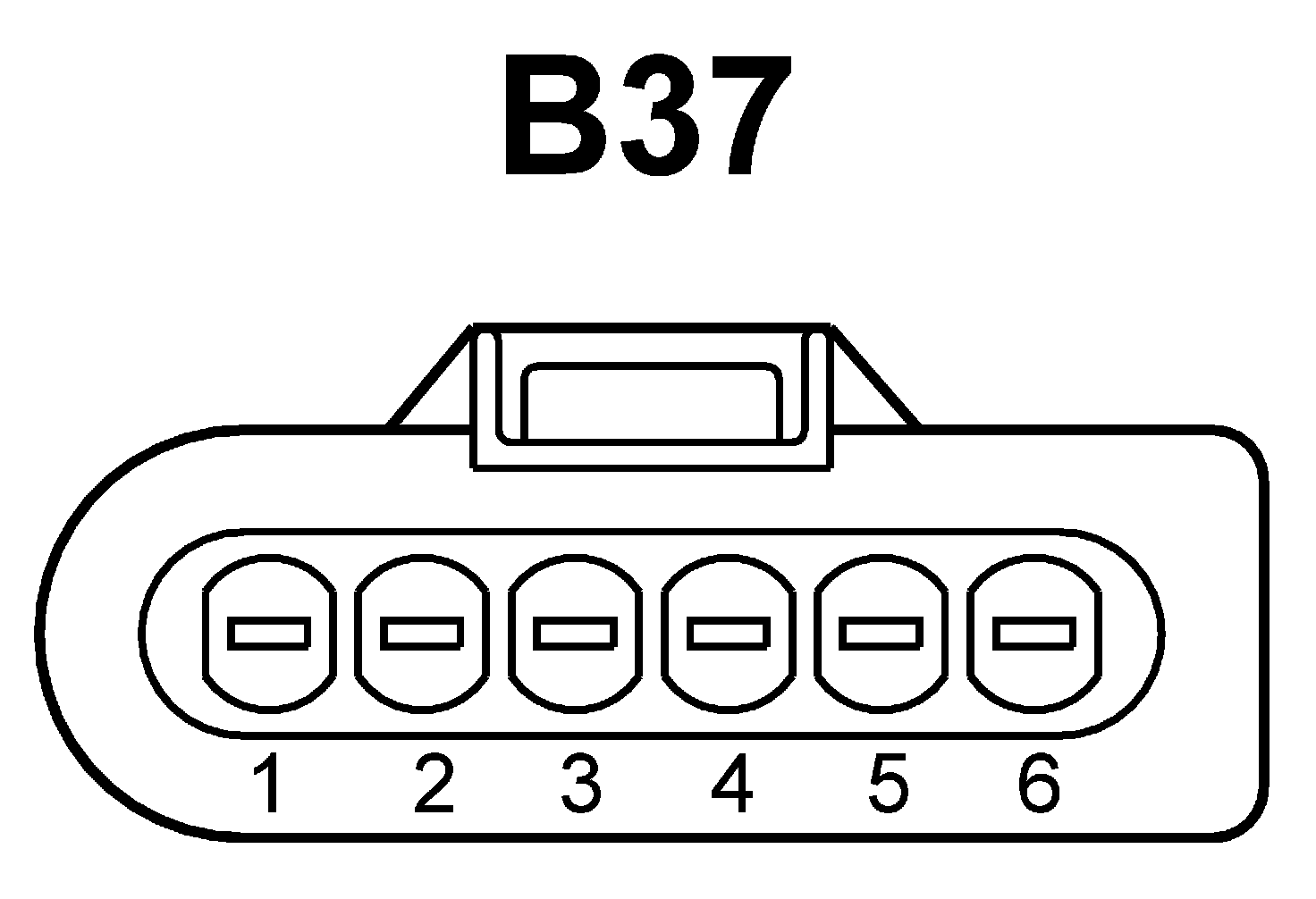

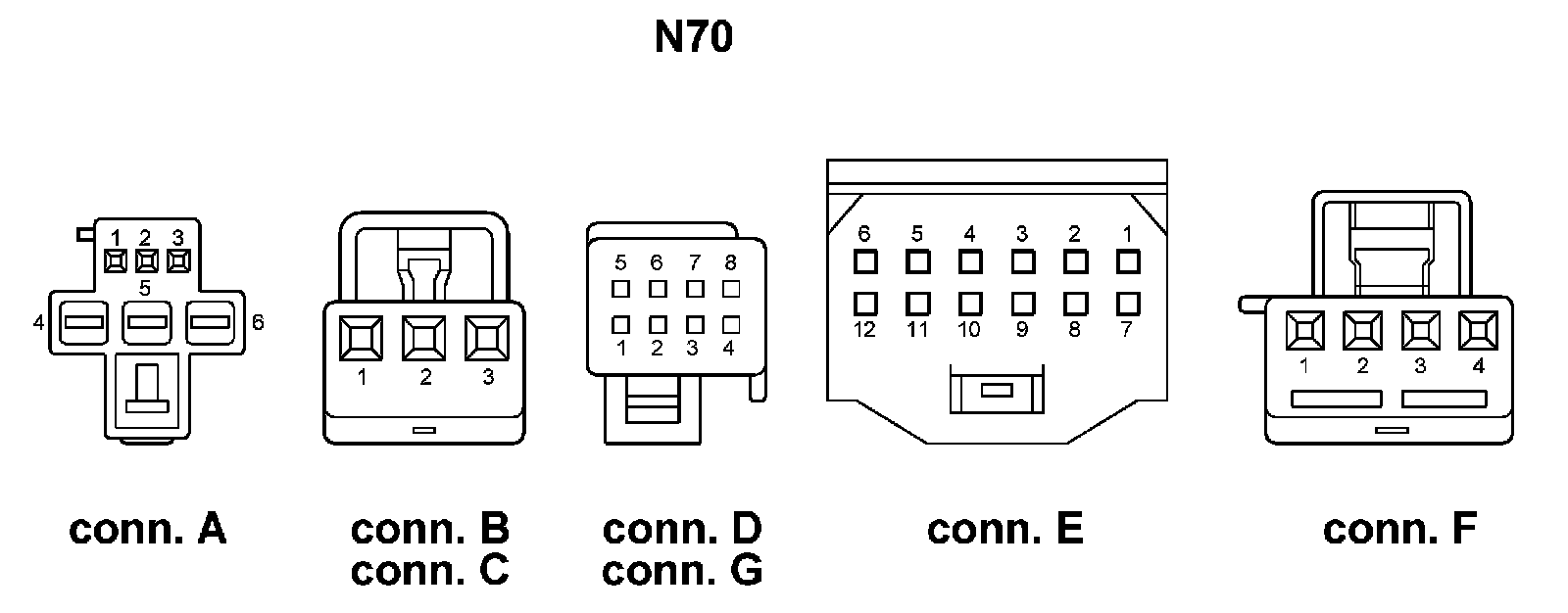

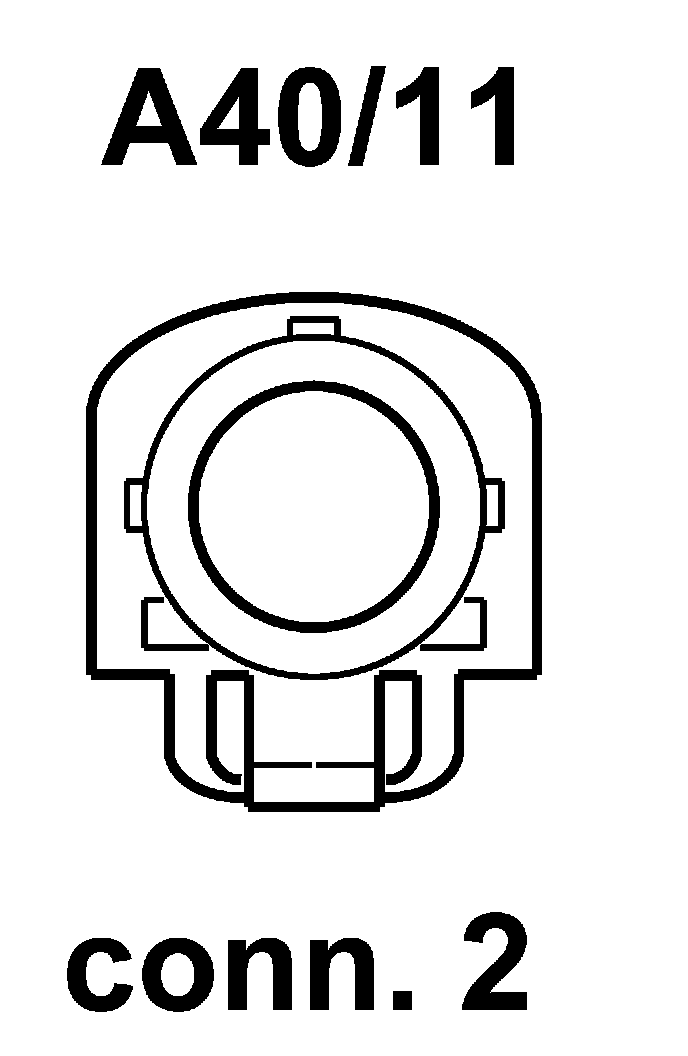

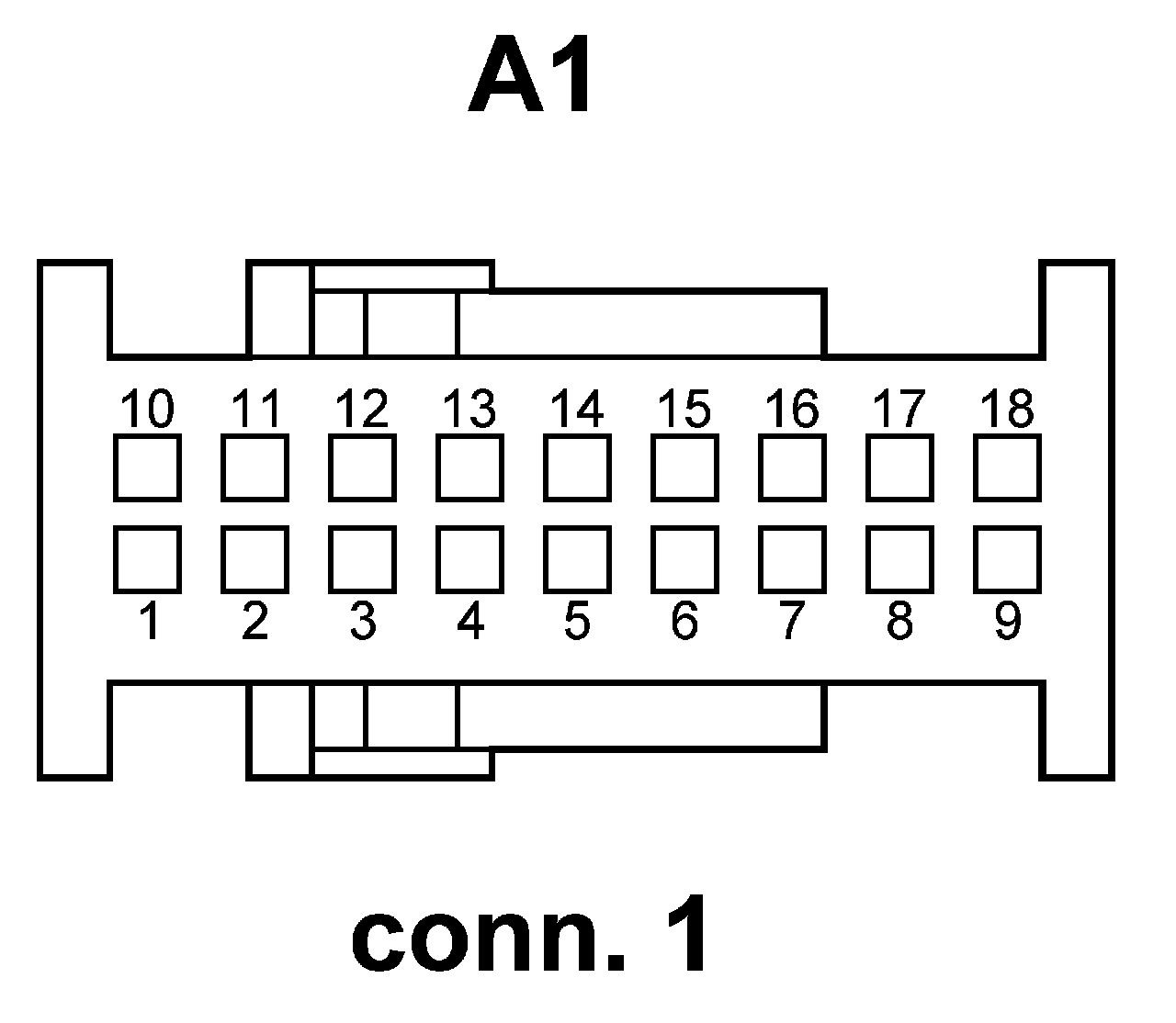

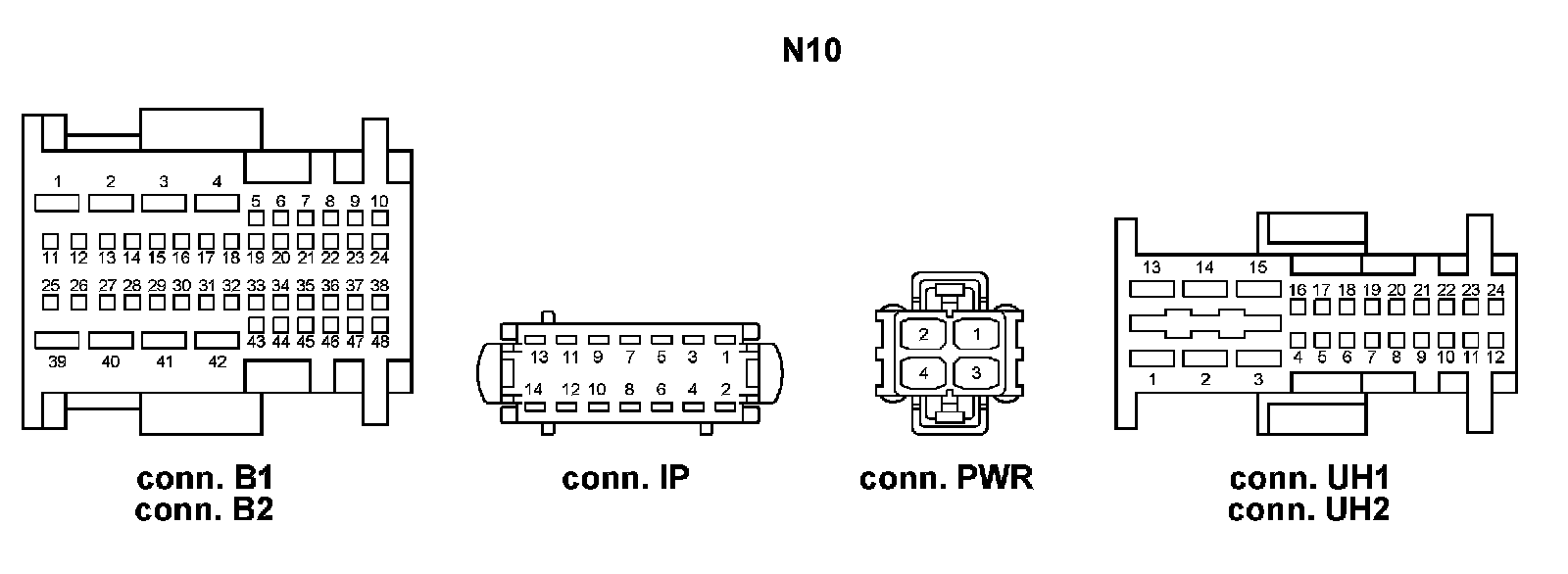

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
