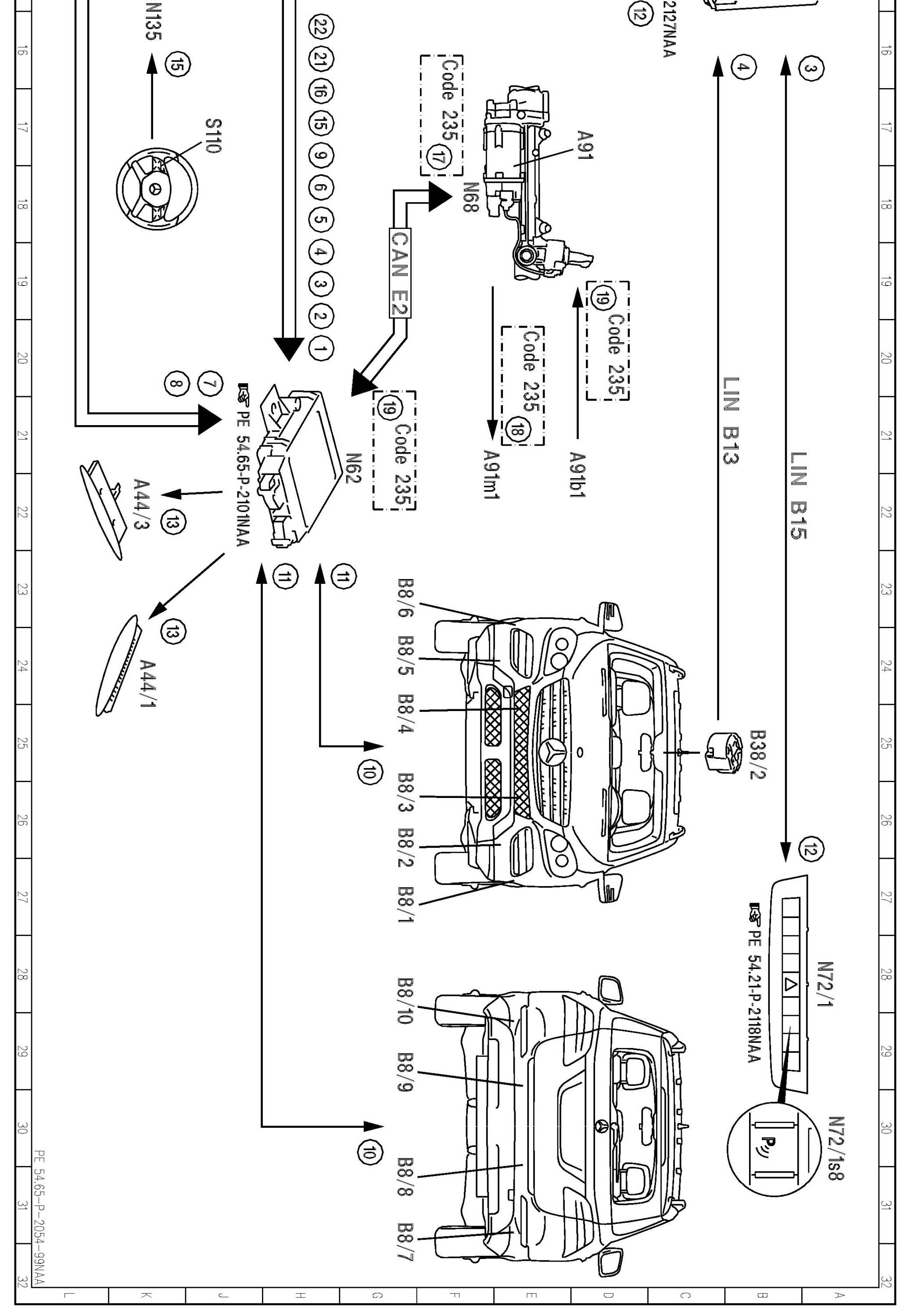

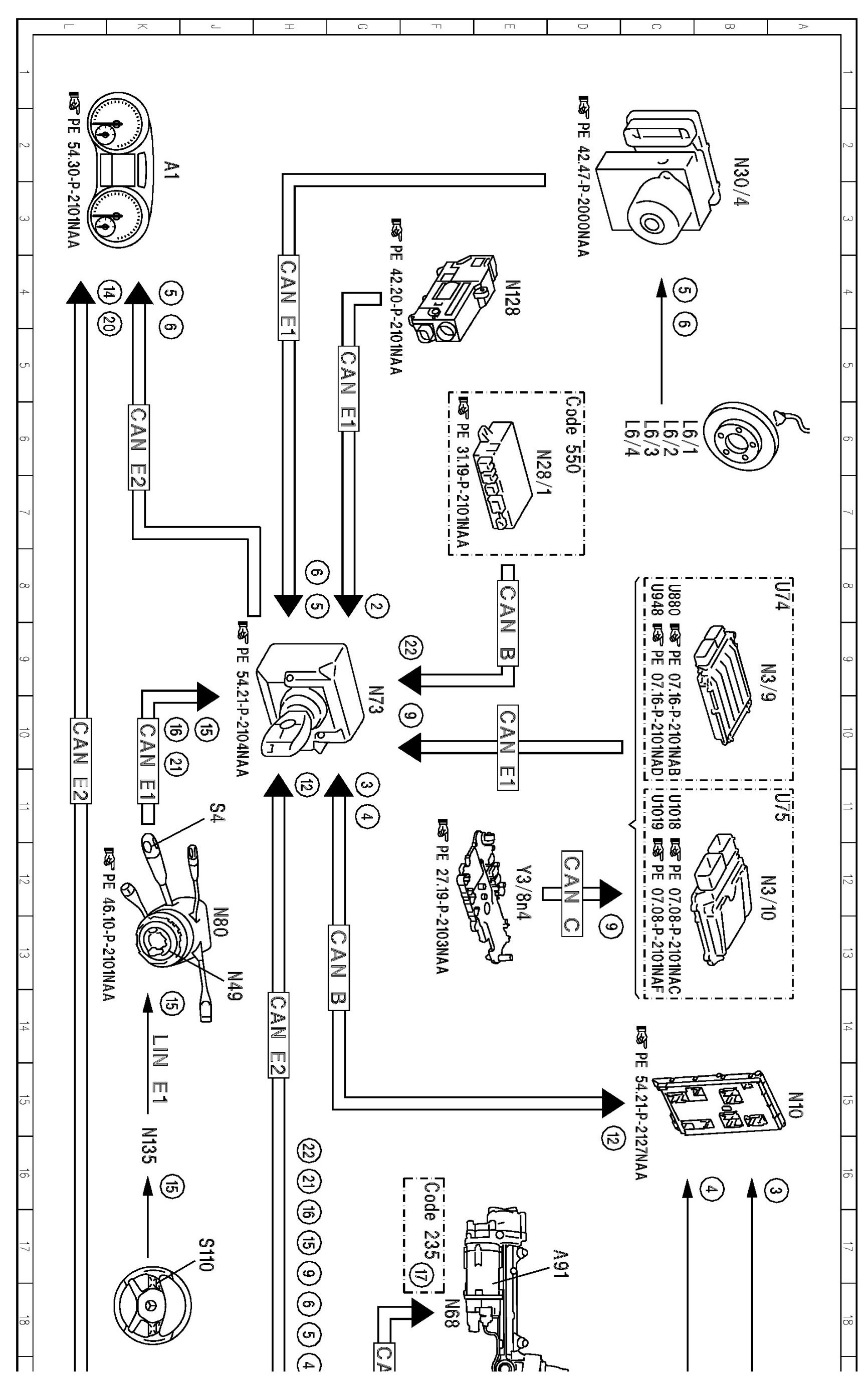

PE54.65-P-2054NAA Electrical Function Schematic Of Parking System

PE54.65-P-2054NAA Electrical Function Schematic Of Parking System
MODEL 166
with CODE (220) PARKTRONIC
with CODE (235) Active Park Assist

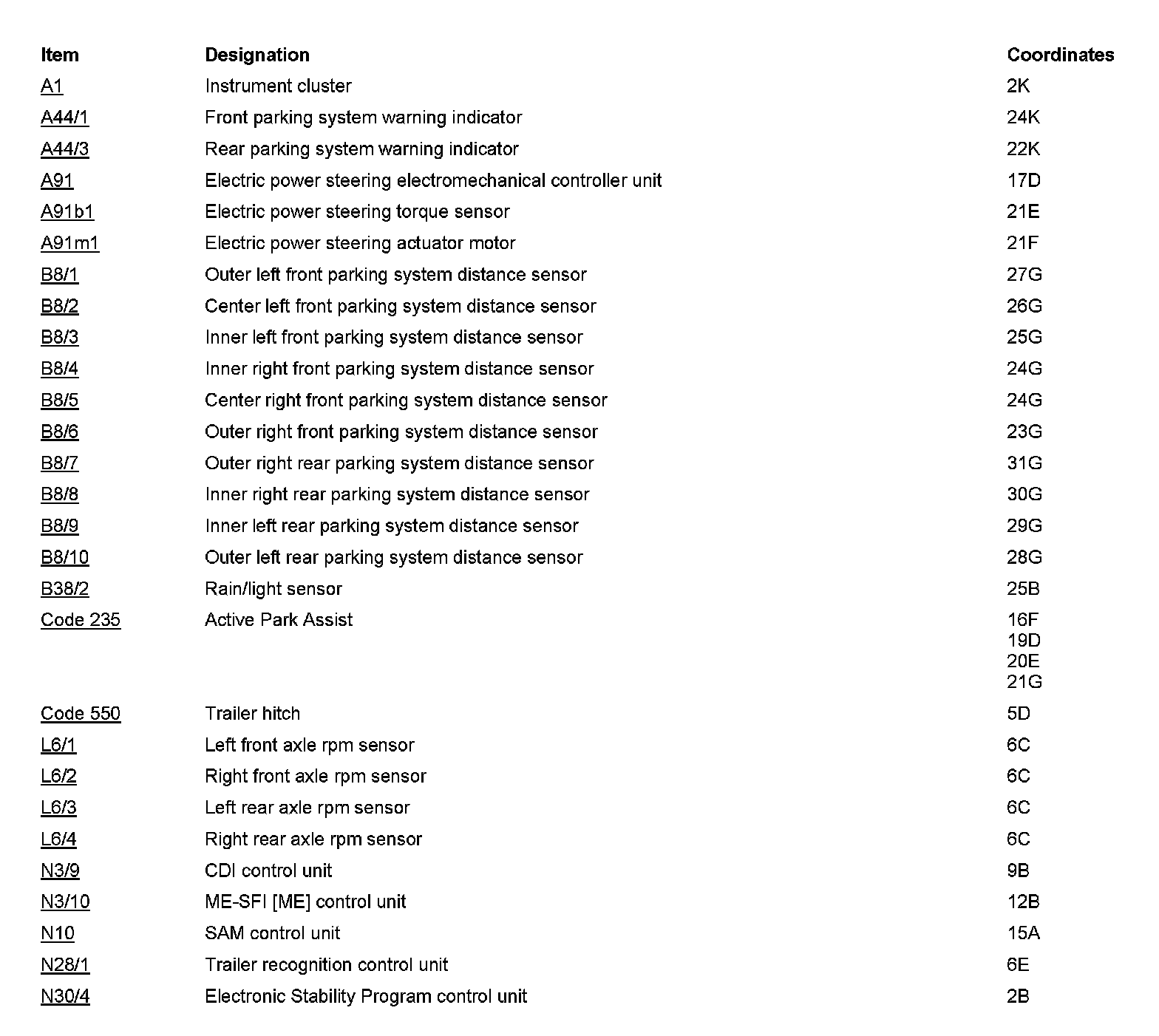

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
