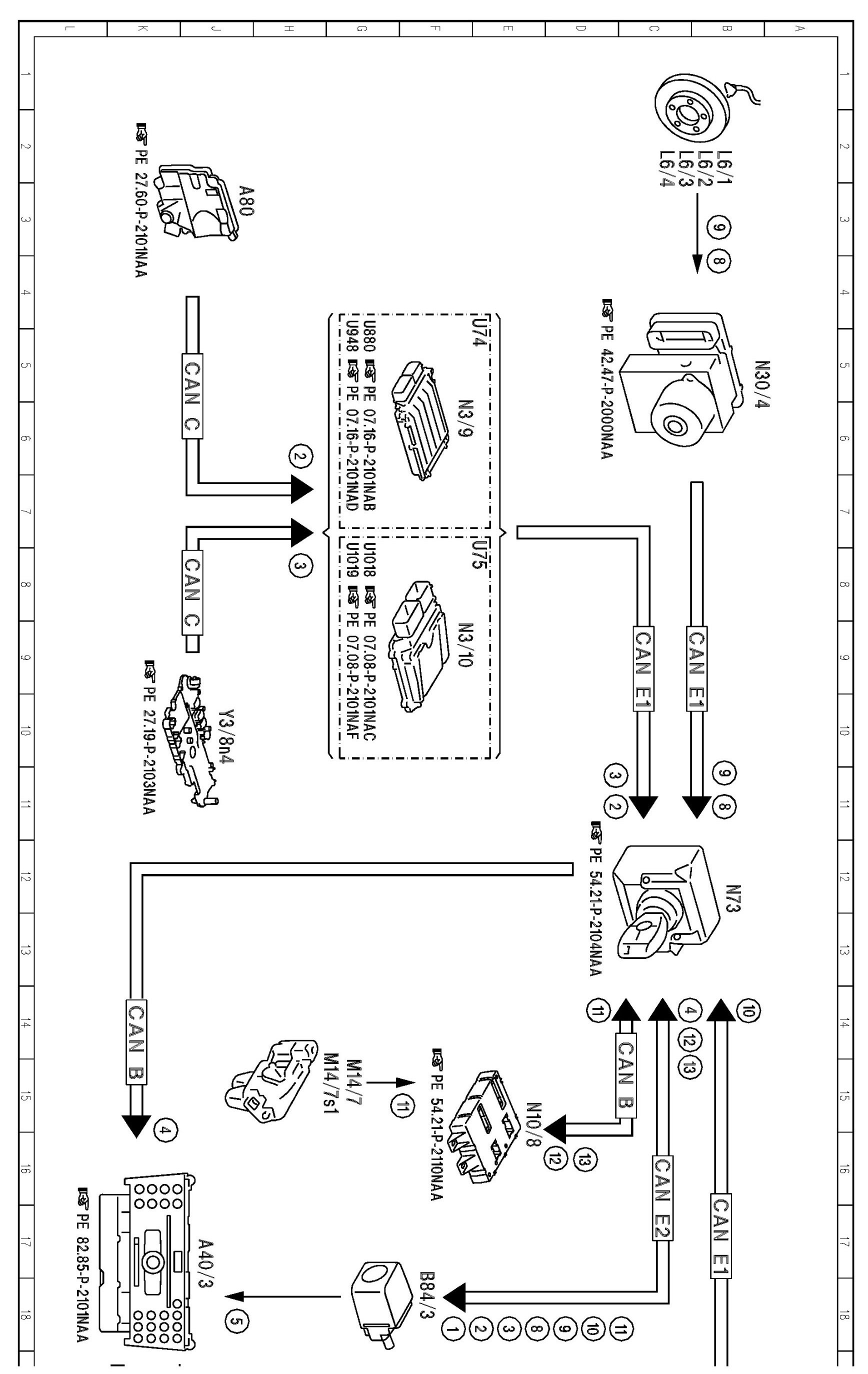

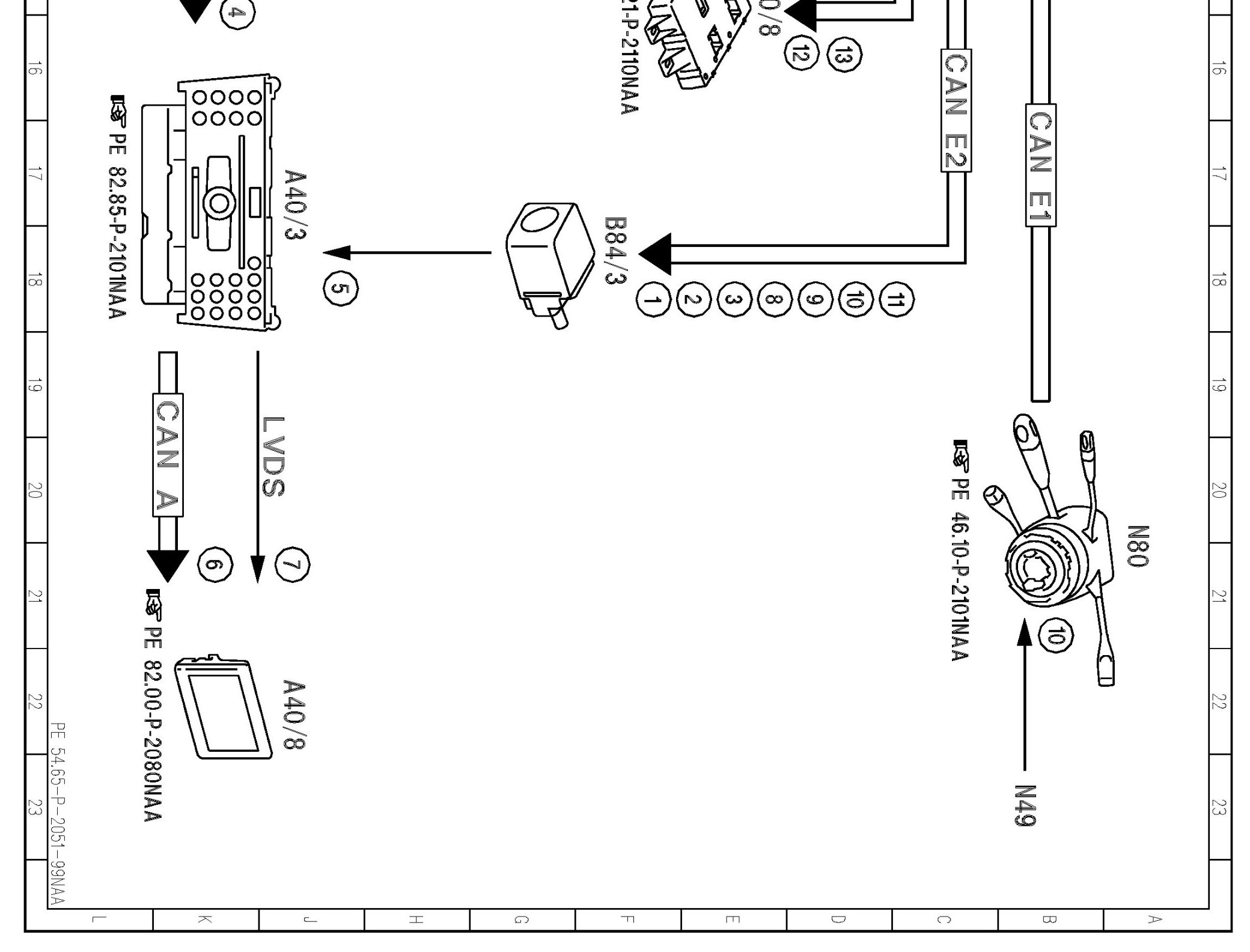

PE54.65-P-2051NAA Electrical Function Schematic, Reversing Camera

PE54.65-P-2051NAA Electrical Function Schematic, Reversing Camera
MODEL 166
with CODE (218) Backup Camera
except CODE (498) Japan Version






















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
