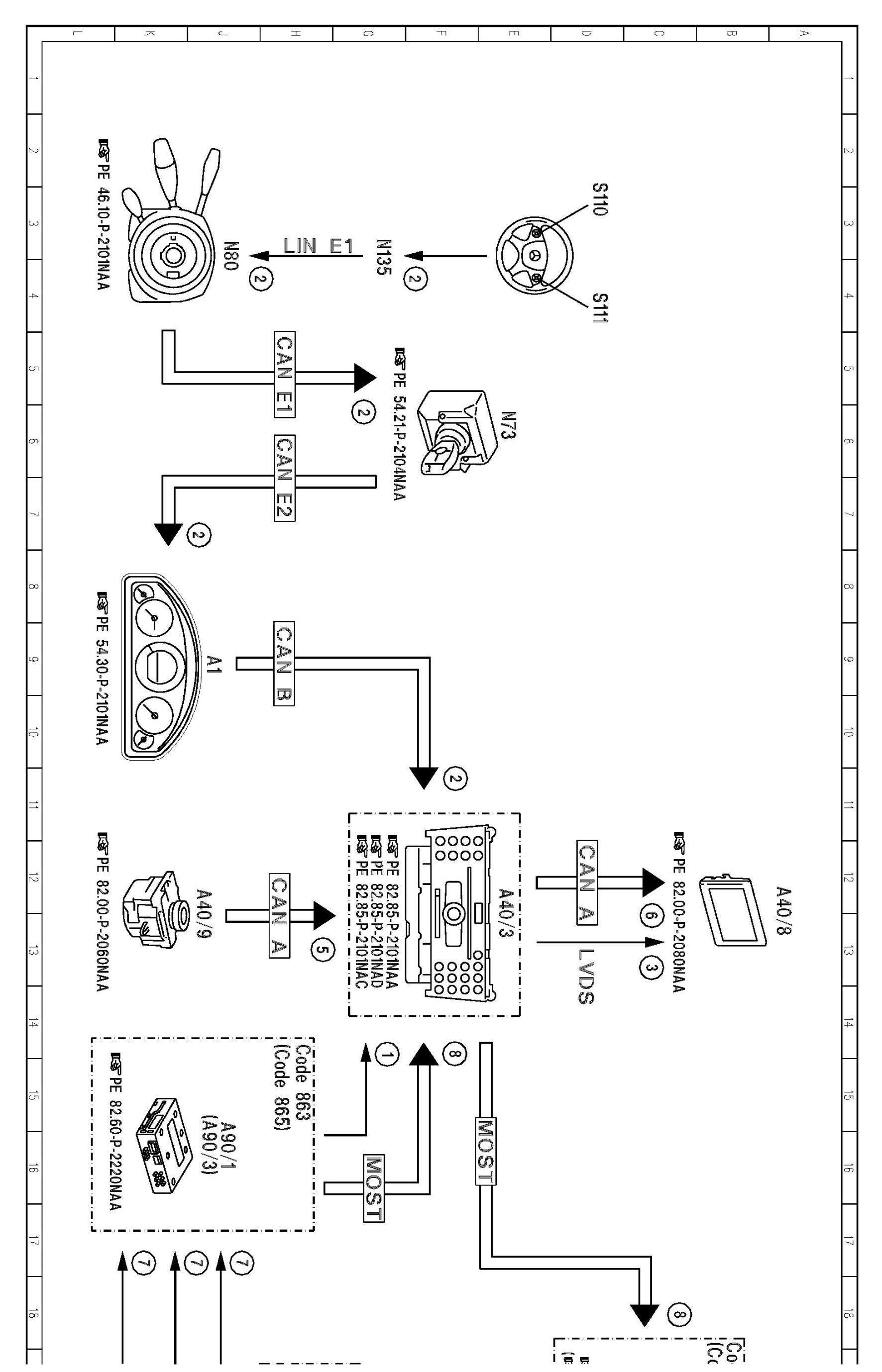

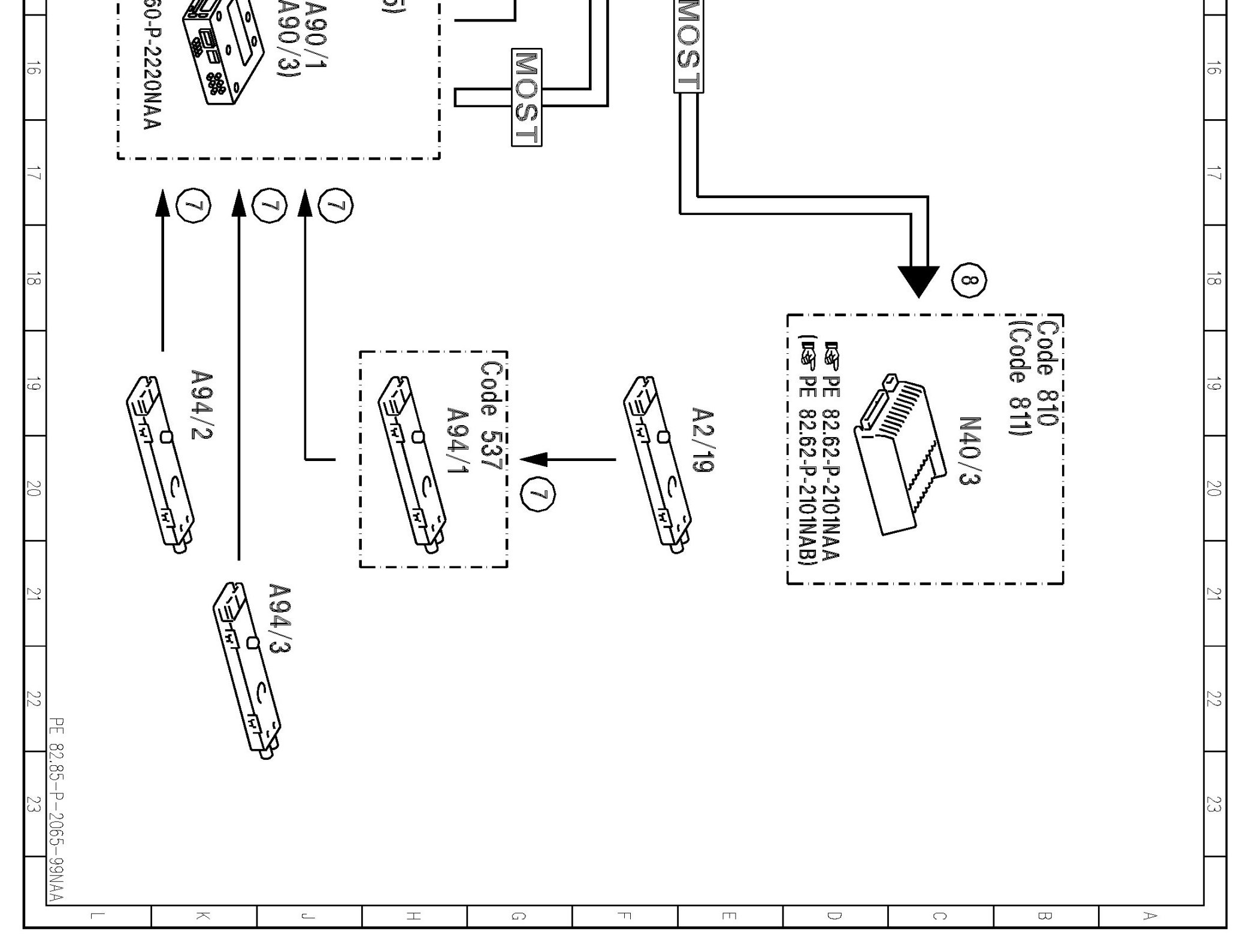

PE82.85-P-2065NAA Electrical Function Diagram For TV Mode, Function

PE82.85-P-2065NAA Electrical Function Diagram For TV Mode, Function
MODEL 166
with CODE (863) Digital/Analog TV Tuner
with CODE (865) TV Tuner














































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
