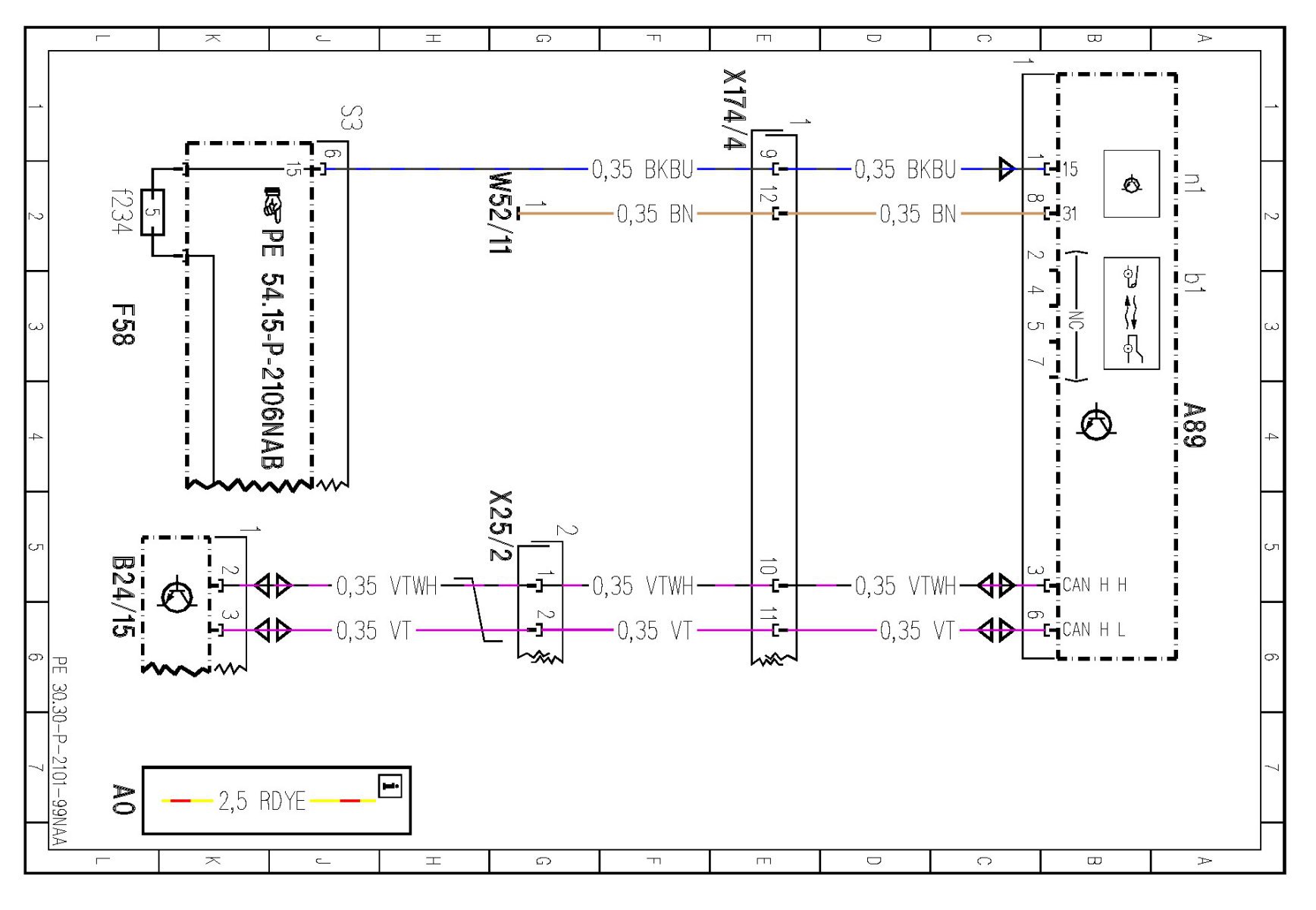

PE30.30-P-2101NAA Distronic (DTR) Control Unit



PE30.30-P-2101NAA Distronic (DTR) Control Unit
ENGINES 157.9, 276.9, 278.9, 642.8, 651.9 in MODEL 166
- with CODE (233) Distronic Plus
- with CODE (237) Active Blind Spot Assist
- Control Unit A89


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
