Removal and Replacement

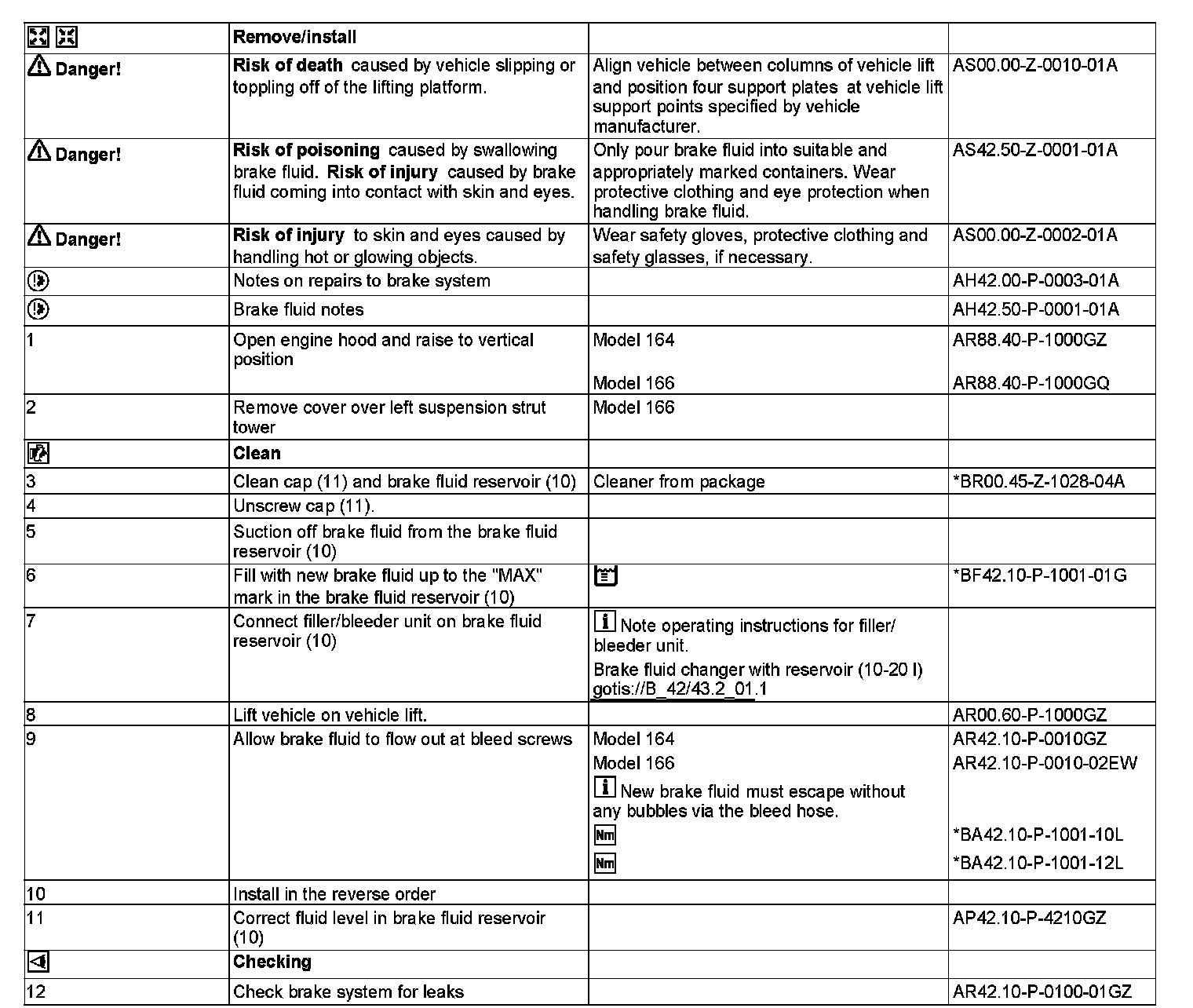

AP42.00-P-4280GZ Replace Brake Fluid
MODEL 164, 166

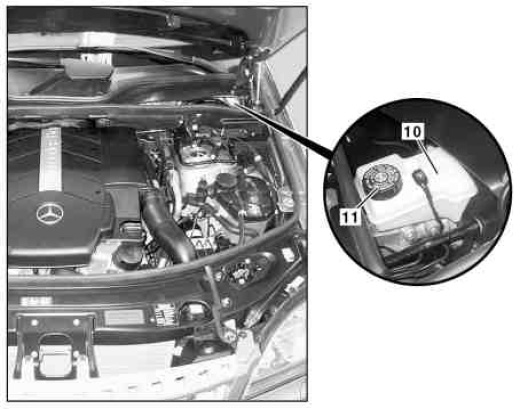

Shown on model 164.1

10 Brake fluid reservoir
11 Cap
