Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Brakes and Traction Control >> Sensors and Switches - Brakes and Traction Control >> Wheel Speed Sensor >> Service and Repair >> AR42.30-P-0712GZ Remove/Install Left Front or Right RPM Sensor

AR42.30-P-0712GZ Remove/Install Left Front or Right RPM Sensor



AR42.30-P-0712GZ Remove/install left front or right rpm sensor

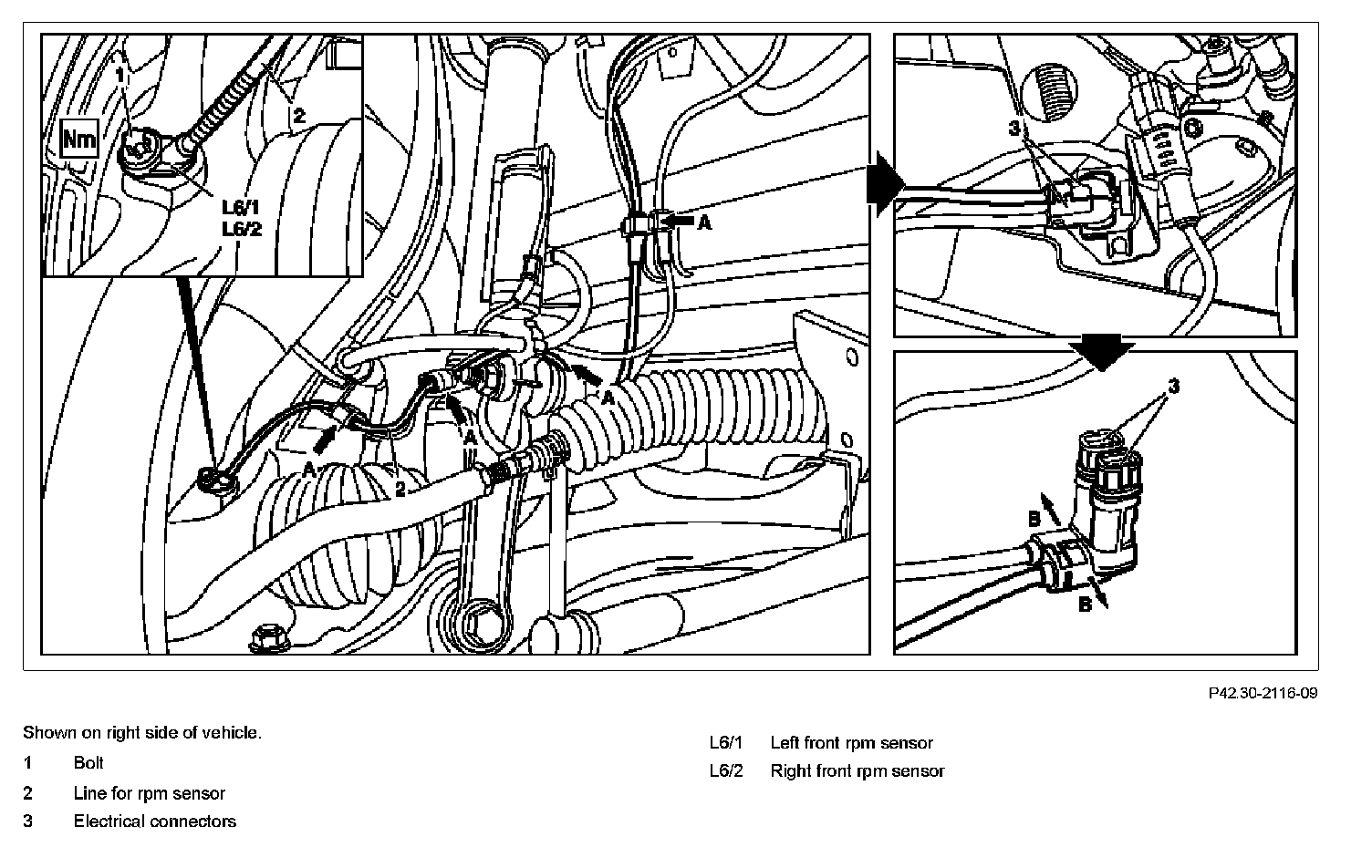

Component Identification:

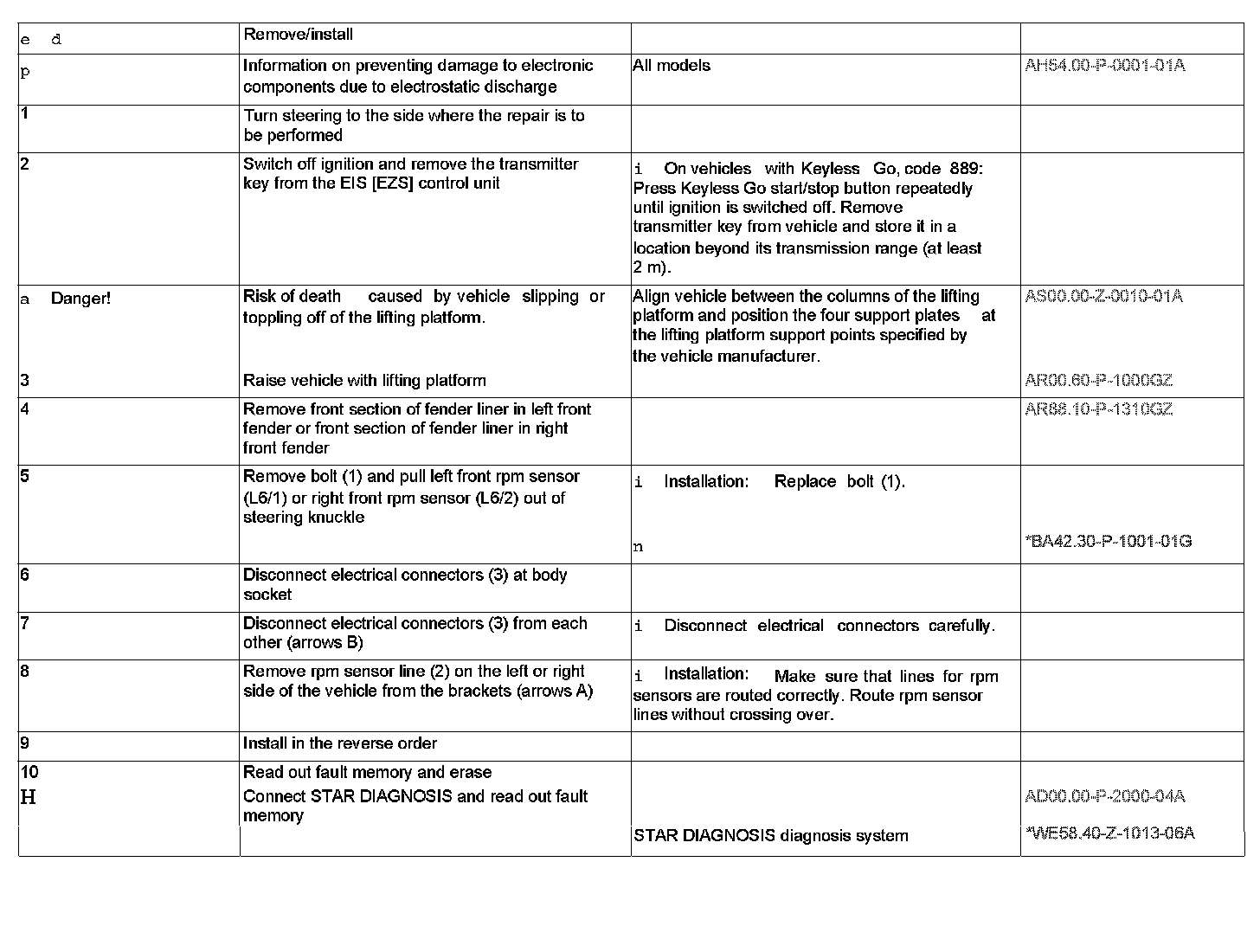

Steps 1 - 10:

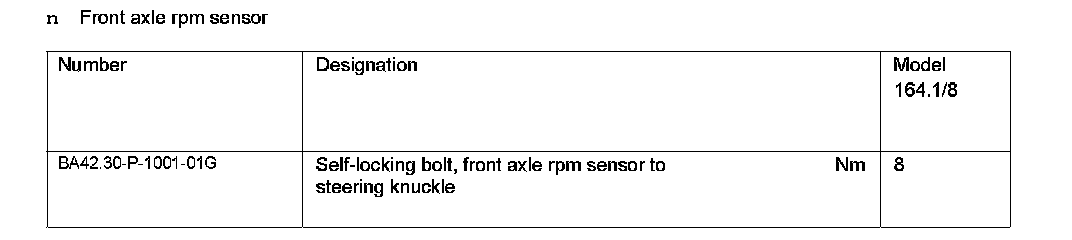

Front Axle RPM Sensor:

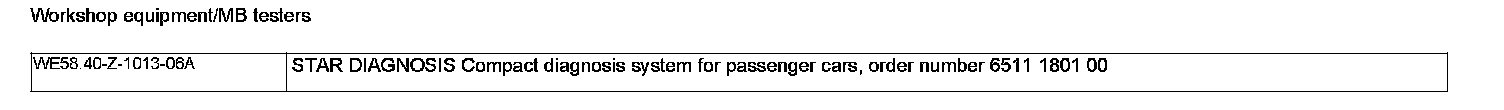

Workshop Equipment/MB Testers:
