AR43.10-P-0325GZ Checking Brake Booster

AR43.10-P-0325GZ Checking Brake Booster
MODEL 164, 166

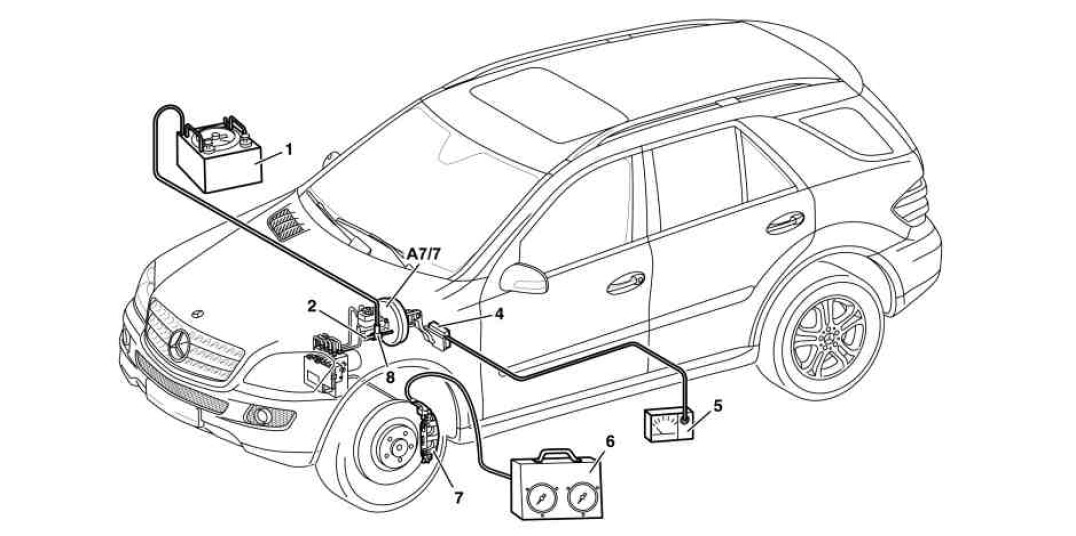

Shows model 164.175

1 Vacuum tester
2 Check valve
4 Sensor
5 Display unit
6 Pressure tester
7 Brake caliper
8 Test connection

A7/7 BAS brake booster

















168 589 08 63 00
Test connection





201 589 13 21 00
Vacuum tester
