AR43.10-P-0325GZ Check Brake Booster

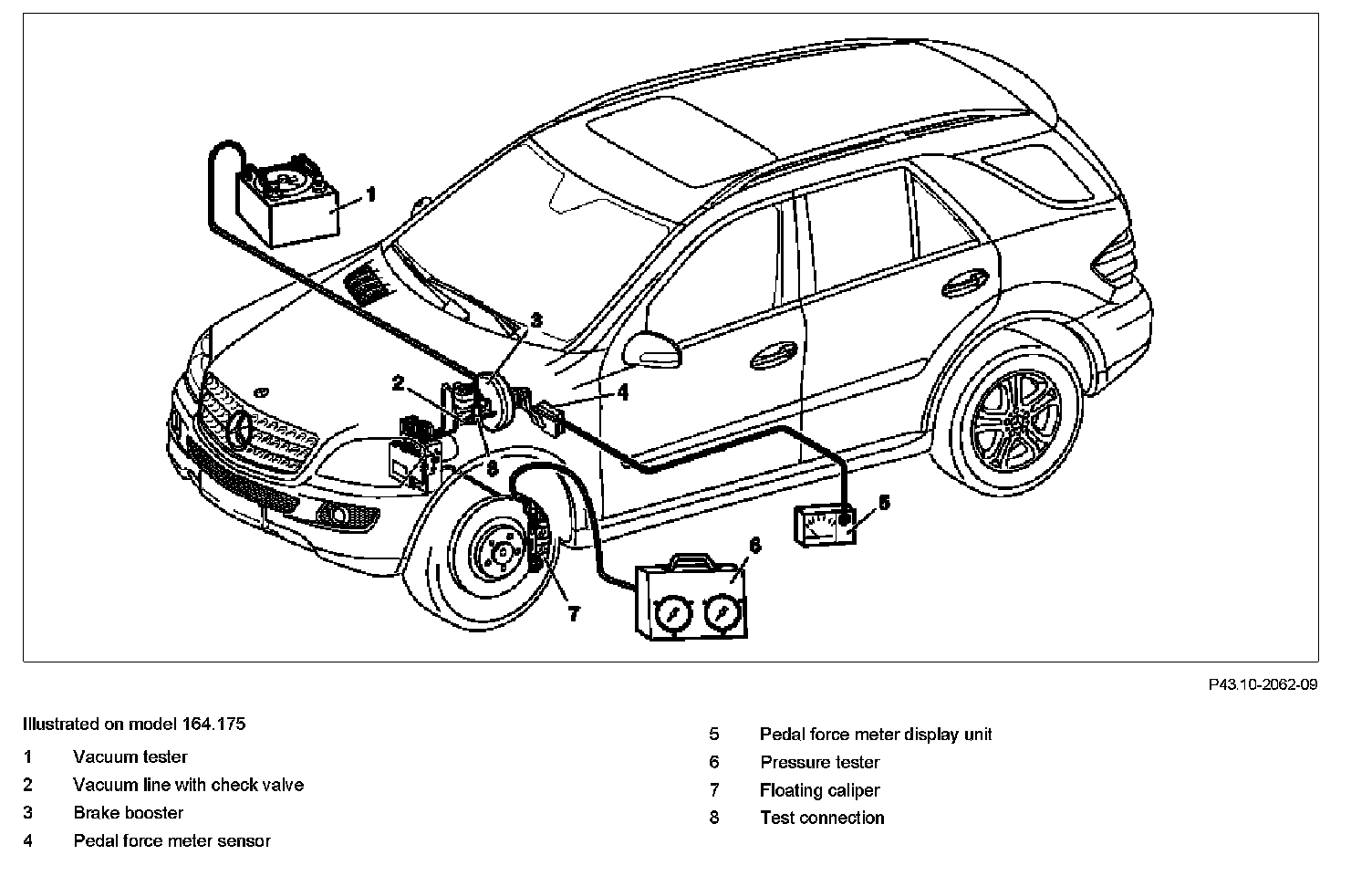

Component Identification:

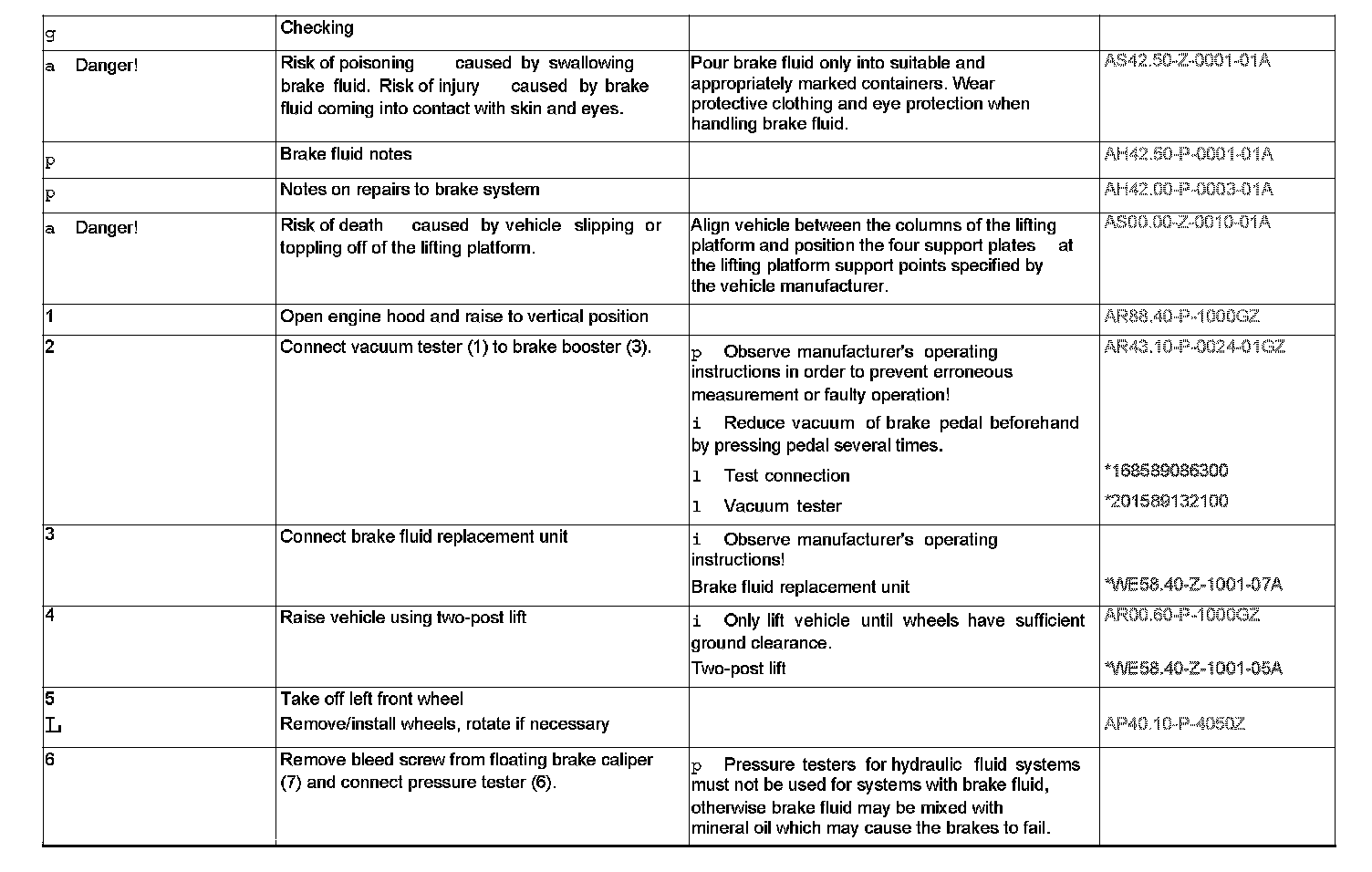

Steps 1 - 6:

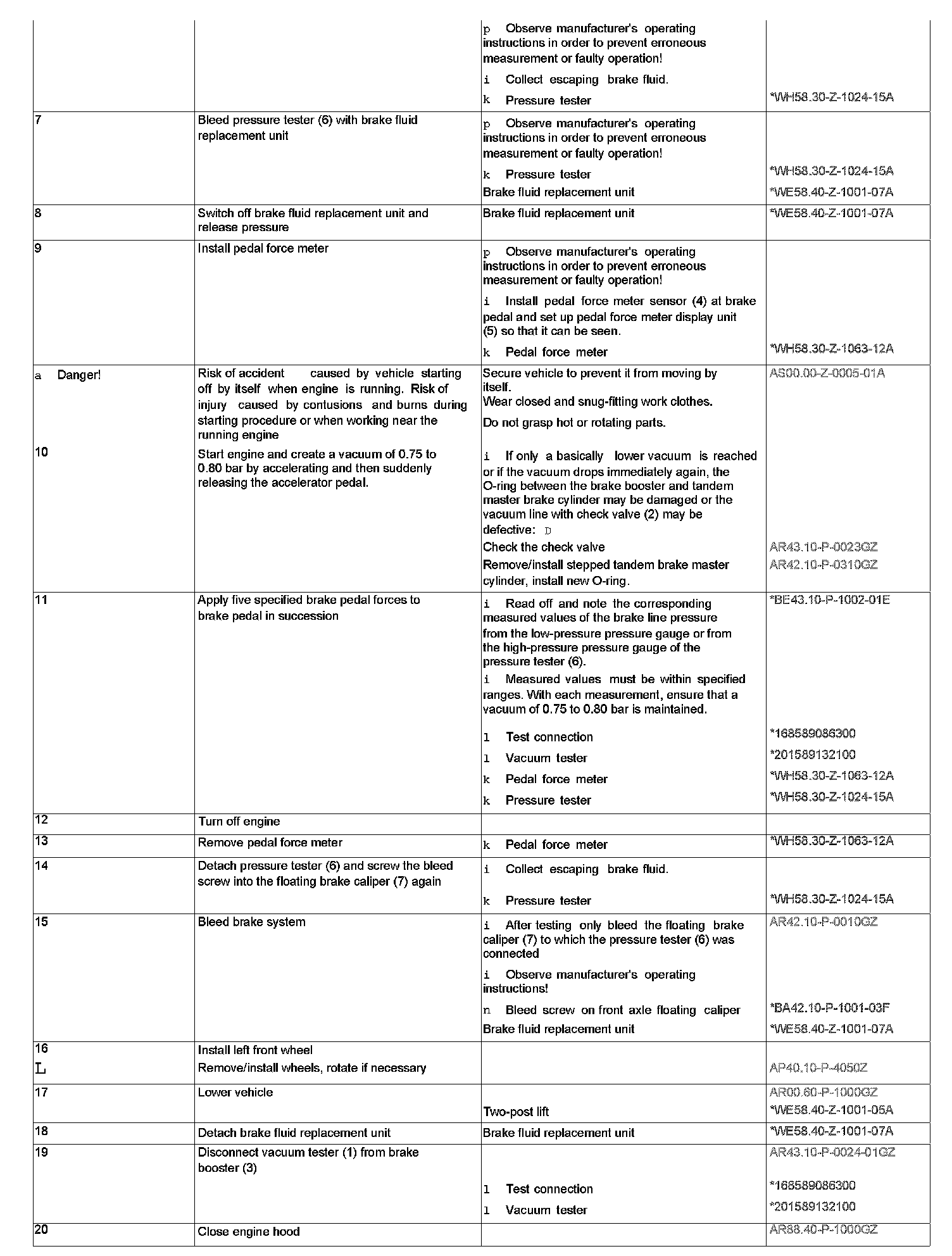

Steps 7 - 20:

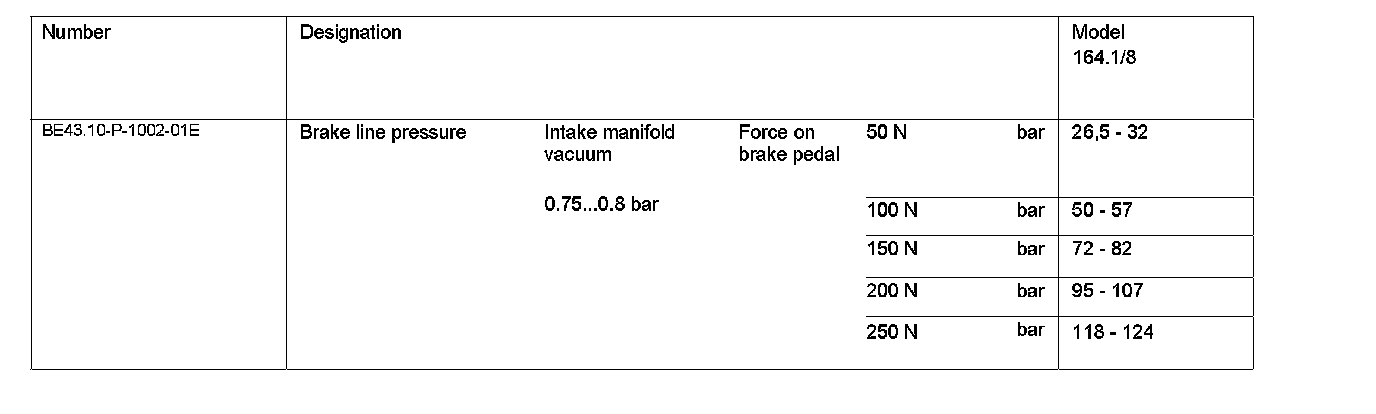

Pneumatic Brake Booster Test Specifications:

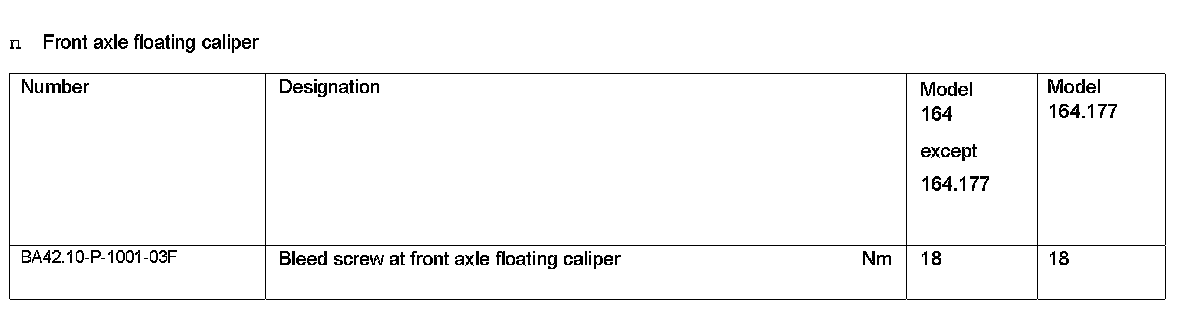

Front Axle Floating Caliper:

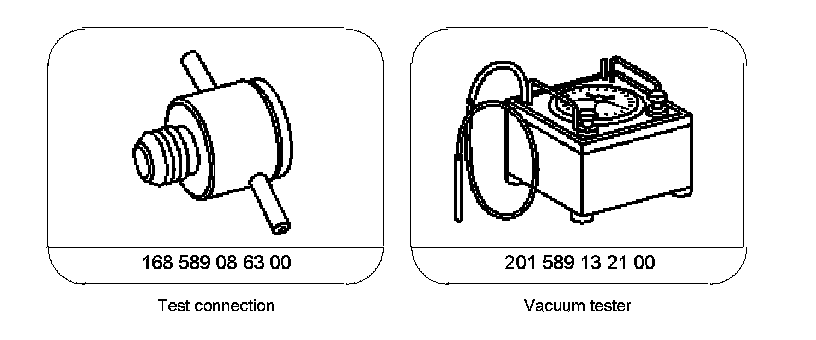

Special Tools:

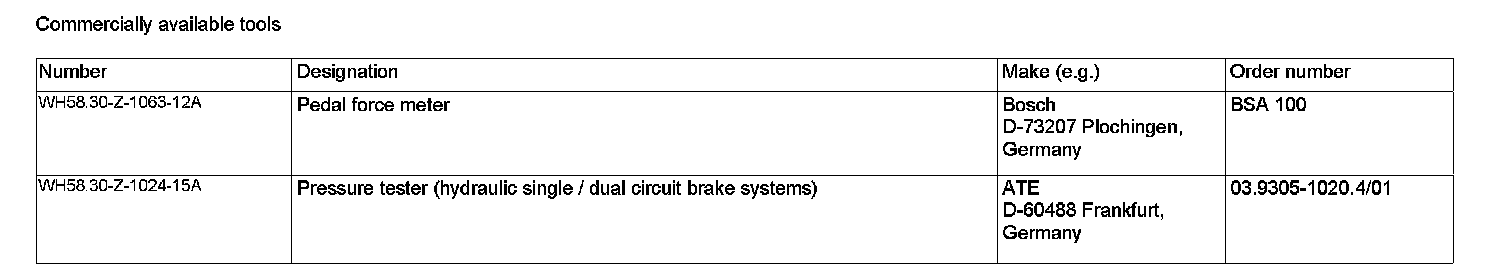

Commercially Available Tools:

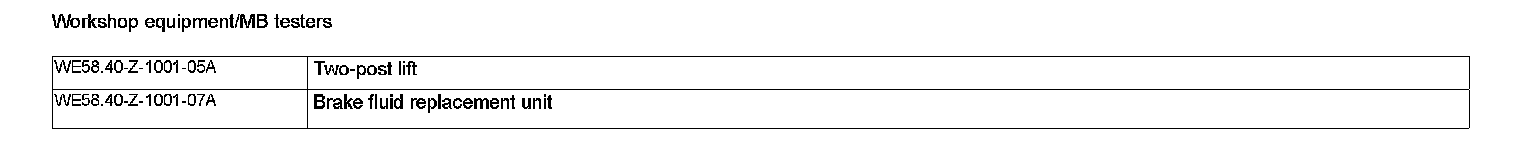

Workshop Equipment/MB Testers:
