AR43.10-P-0024-01GZ Connect/Disconnect Tester at Brake Booster

AR43.10-P-0024-01GZ Connect/disconnect tester at brake booster

Special Tools:

Component Identification:

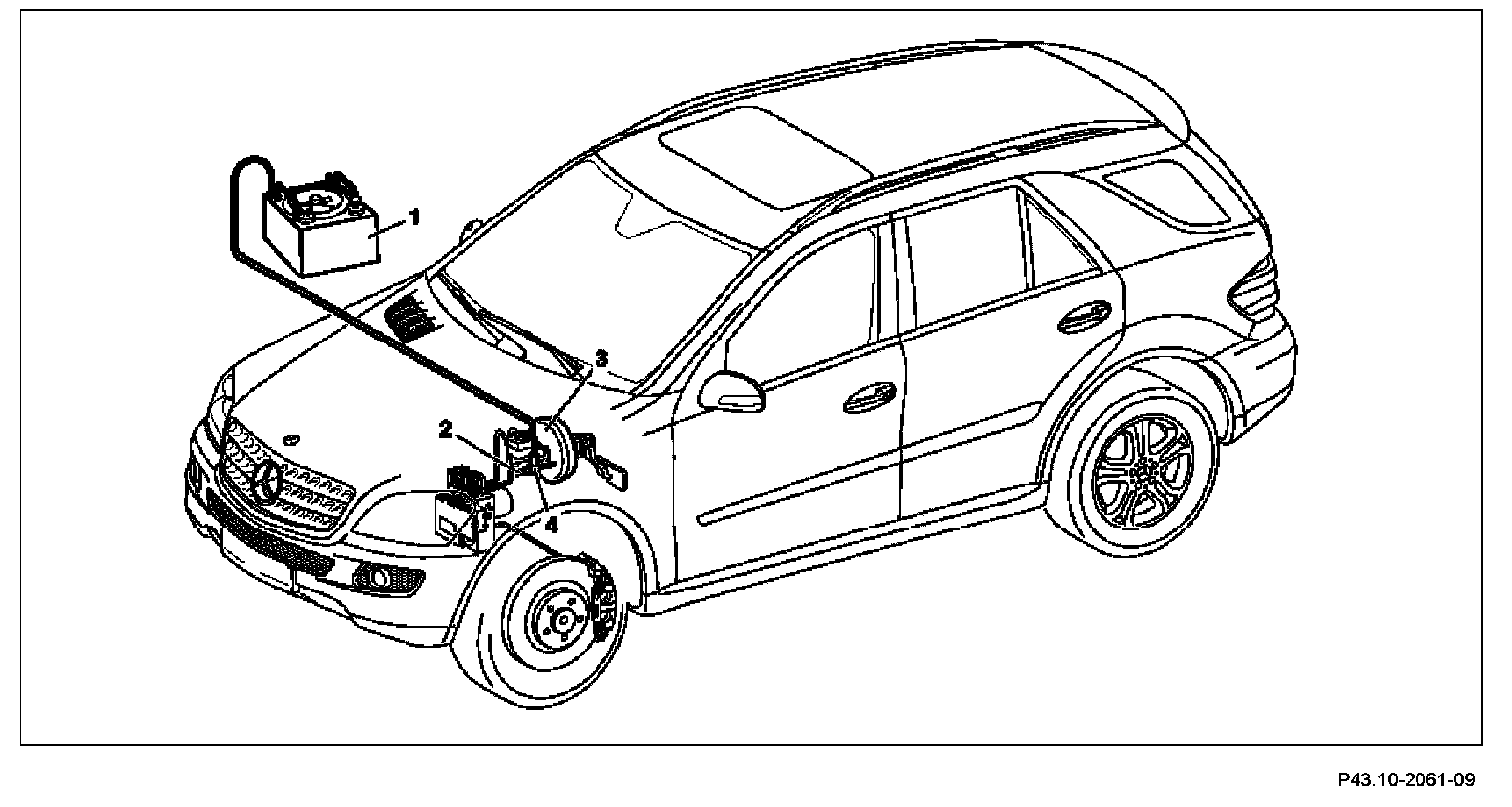

Shown on model 164.1

Attaching
Observe manufacturer's operating instructions to avoid erroneous measurements and incorrect operation.

Reduce any vacuum in the brake booster (3) by pressing the brake pedal several times.

1 Carefully detach vacuum line with check valve (2) from brake booster (3).
2 Connect test connection (4) for testing the vacuum line with check valve (2) or the brake booster (3) between the brake booster (3) and the vacuum line with check valve (2).
3 Connect vacuum tester (1) to test connection (4).

Disconnecting
4 Disconnect in reverse order.
