AR43.10-P-0355GQ Remove/Install Brake Booster Vacuum Line

AR43.10-P-0355GQ Remove/Install Brake Booster Vacuum Line
MODEL 166 with ENGINE 276, 278, 642, 651

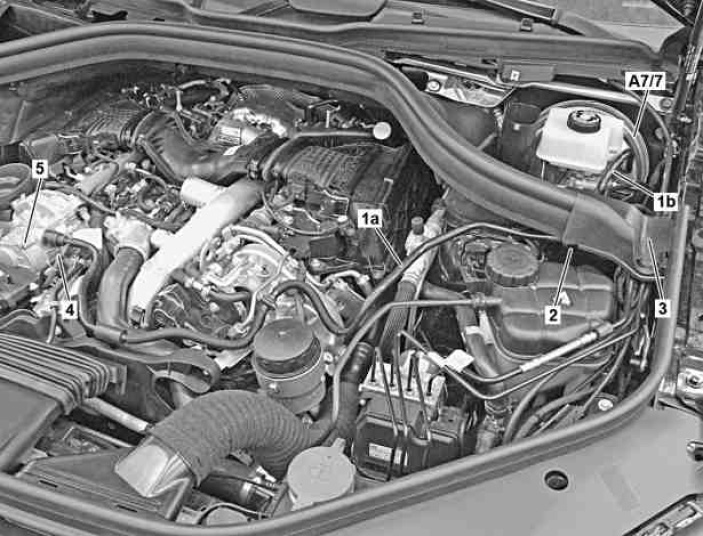

Shows model 166.024

1a Vacuum line
1b Vacuum line with check valve
2 Separation point
3 Cover
4 Vacuum hose
5 Vacuum pump

A7/7 BAS brake booster
