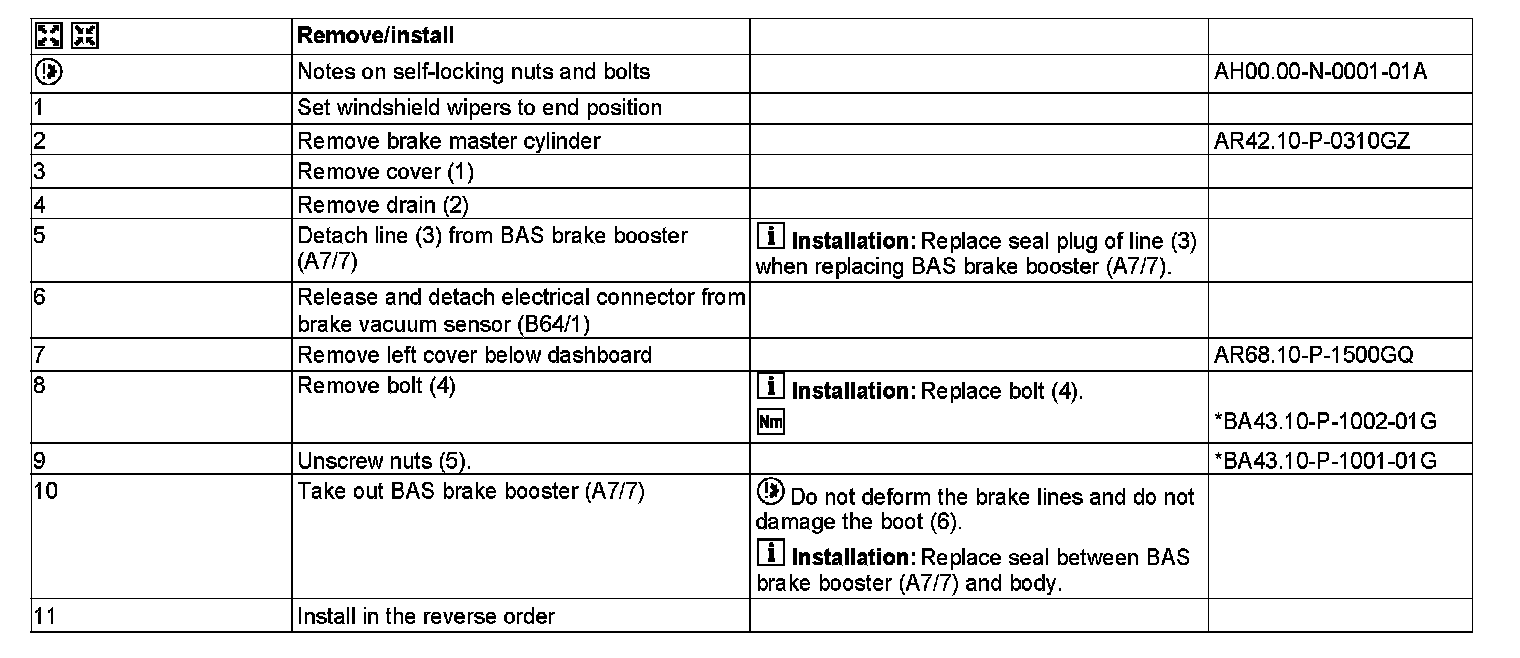

AR43.10-P-0350GQ Remove/Install Brake Booster

AR43.10-P-0350GQ Remove/Install Brake Booster
MODEL 166

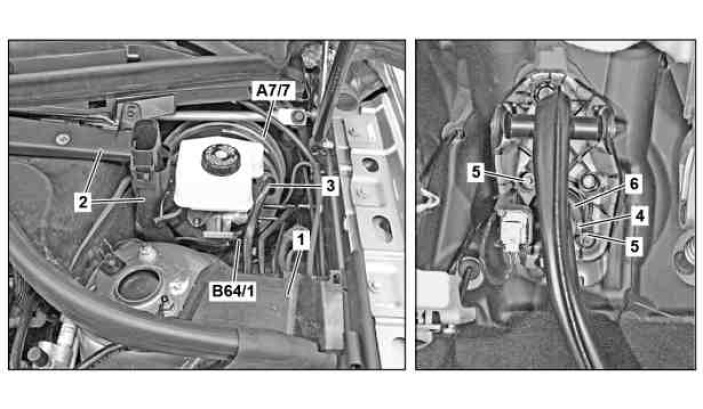

Shows model 166.057

1 Cover
2 Sequence
3 Cable
4 Screw
5 Nut
6 Boot

A7/7 BAS brake booster
B64/1 Brake vacuum sensor
