AR43.10-P-0023GZ Check the Check Valve



AR43.10-P-0023GZ Check the check valve

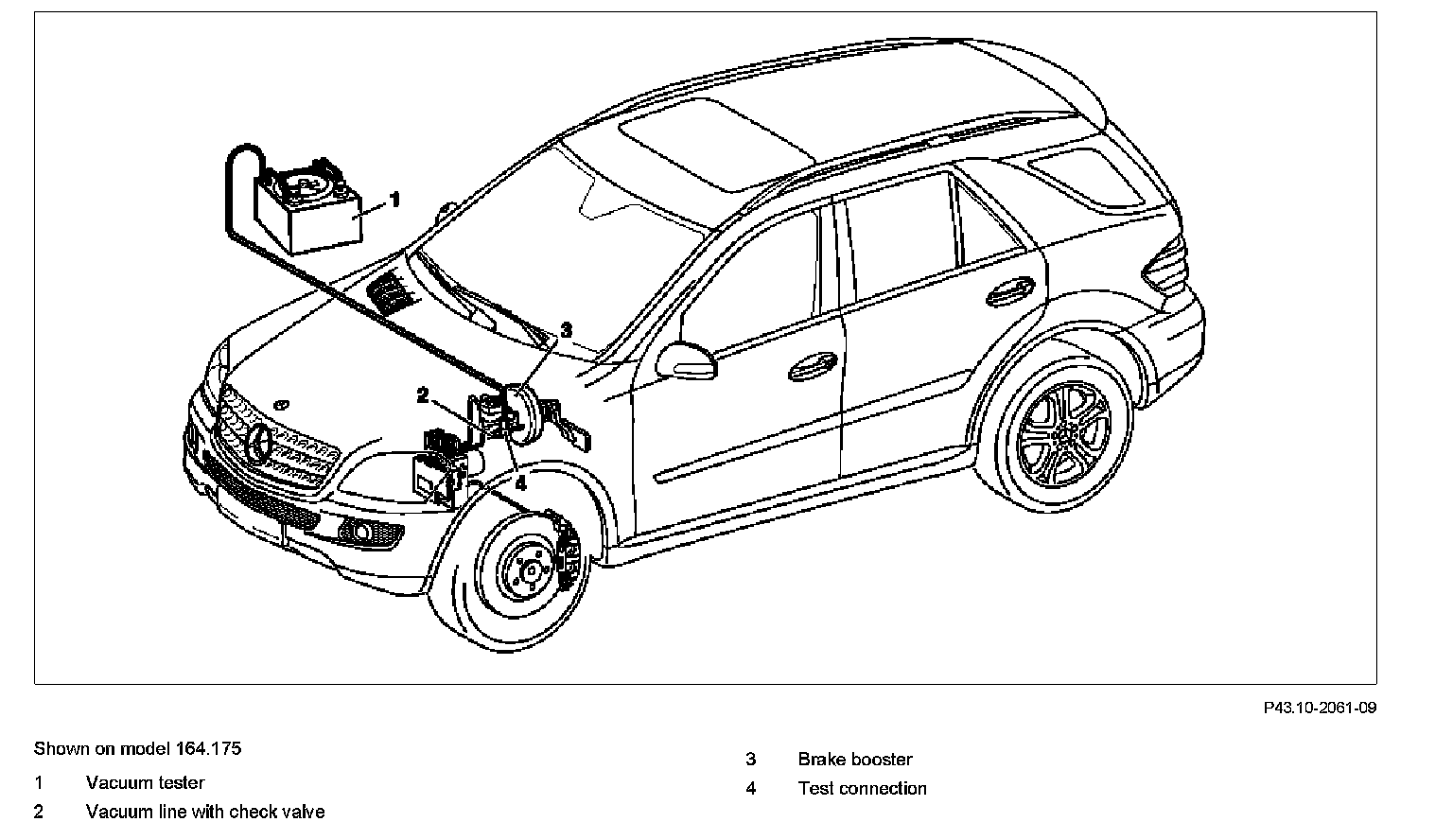

Component Identification:

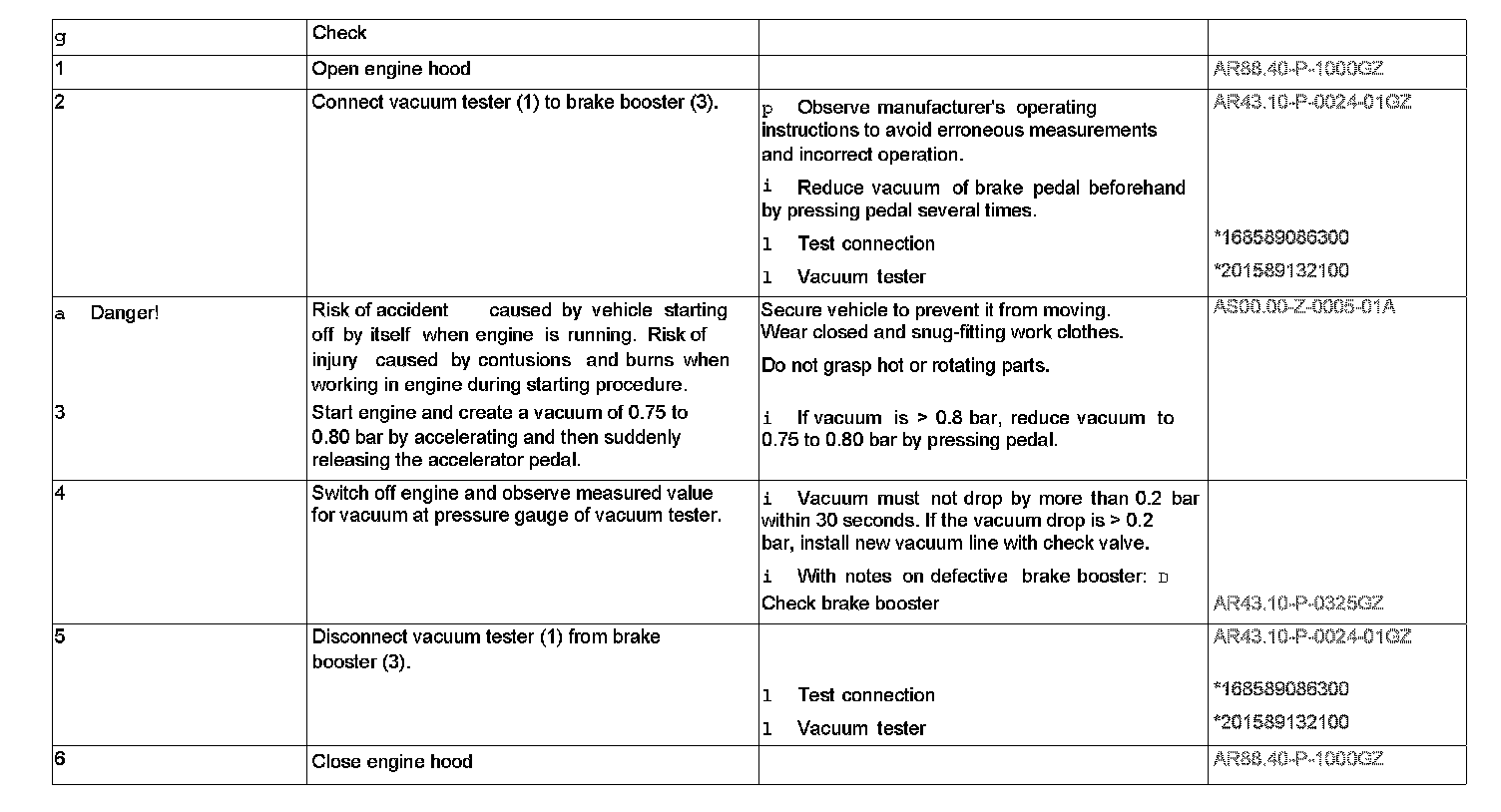

Steps 1 - 6:

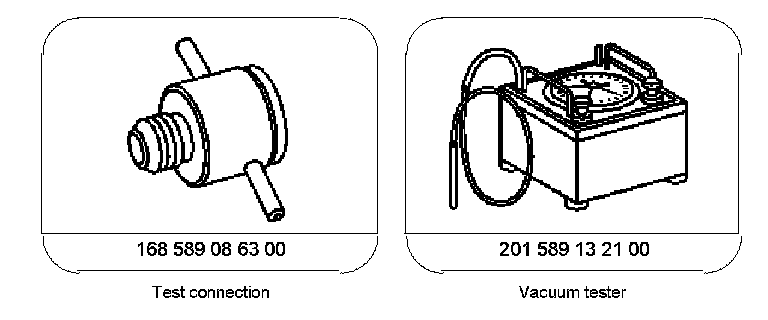

Special Tools:
