AR42.10-P-0015GZ Test Brake System With Pressure Tester For Leaks

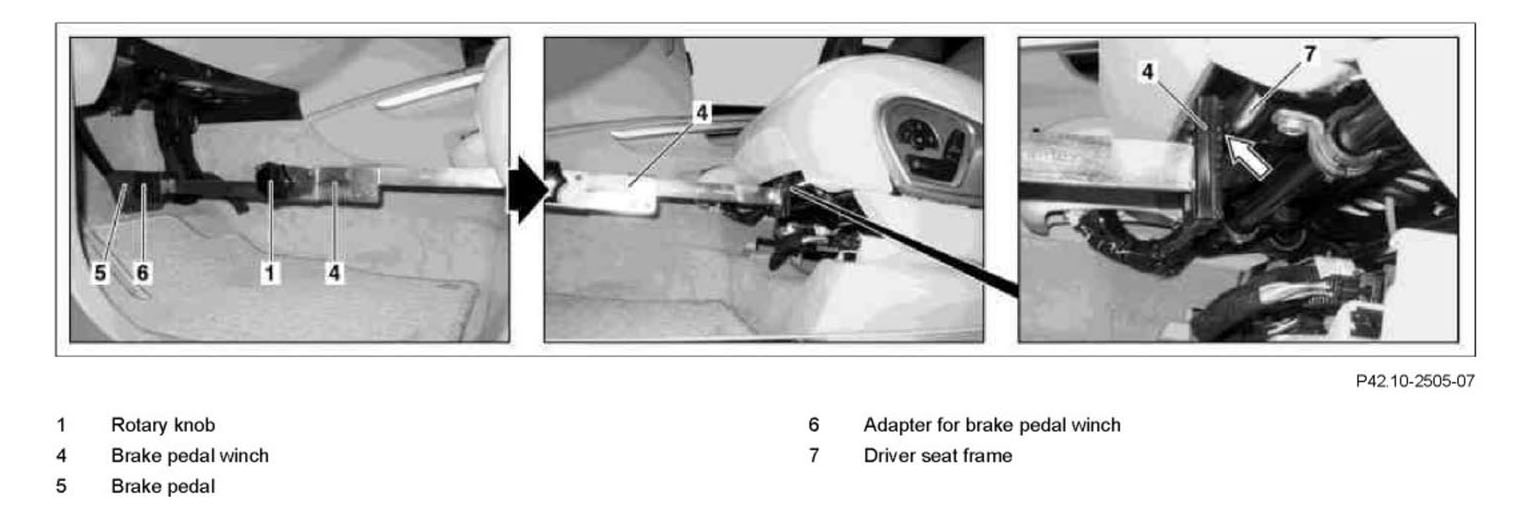

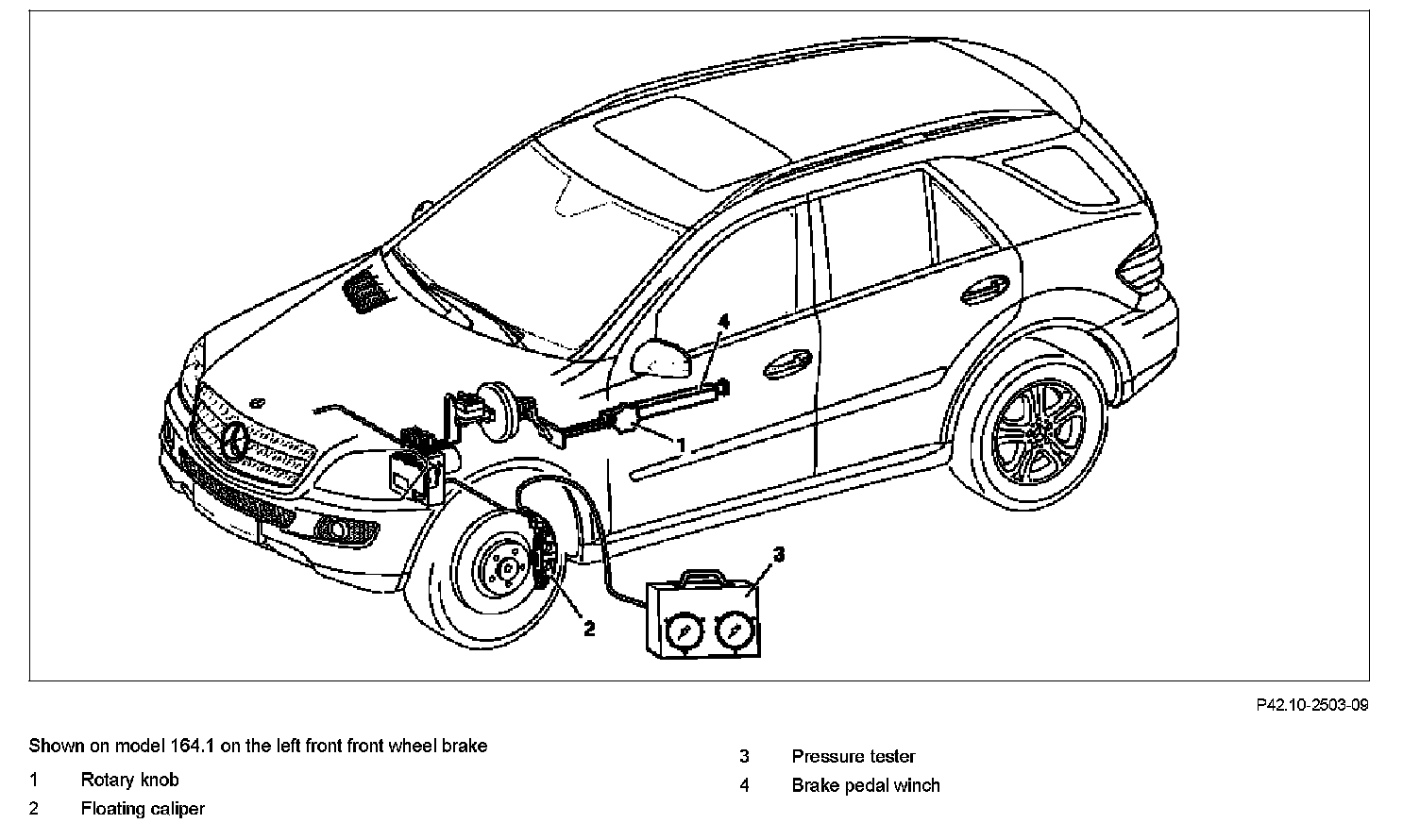

Component Identification:

Component Identification:

Component Identification:

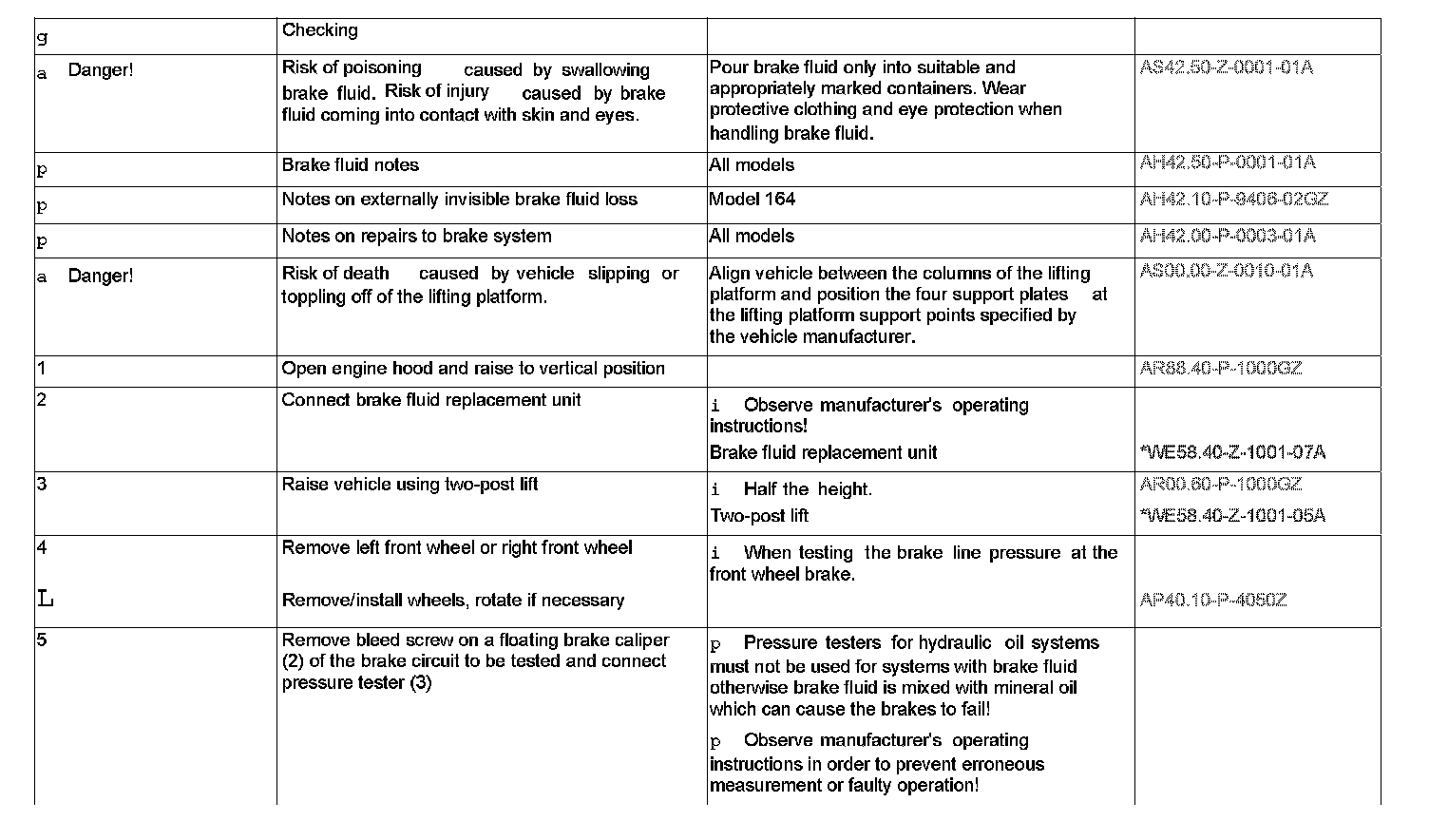

Steps 1 - 5:

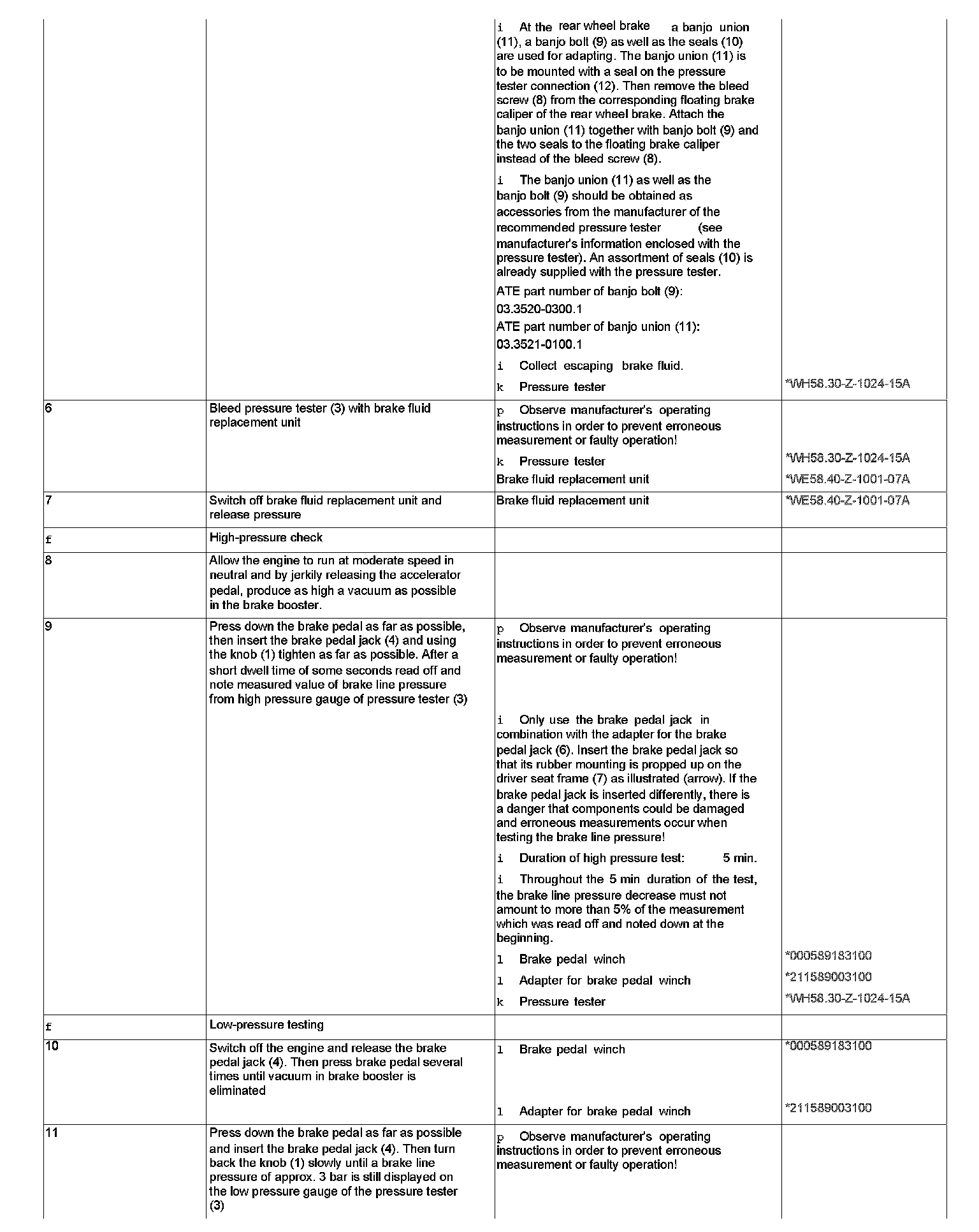

Steps 6 - 11:

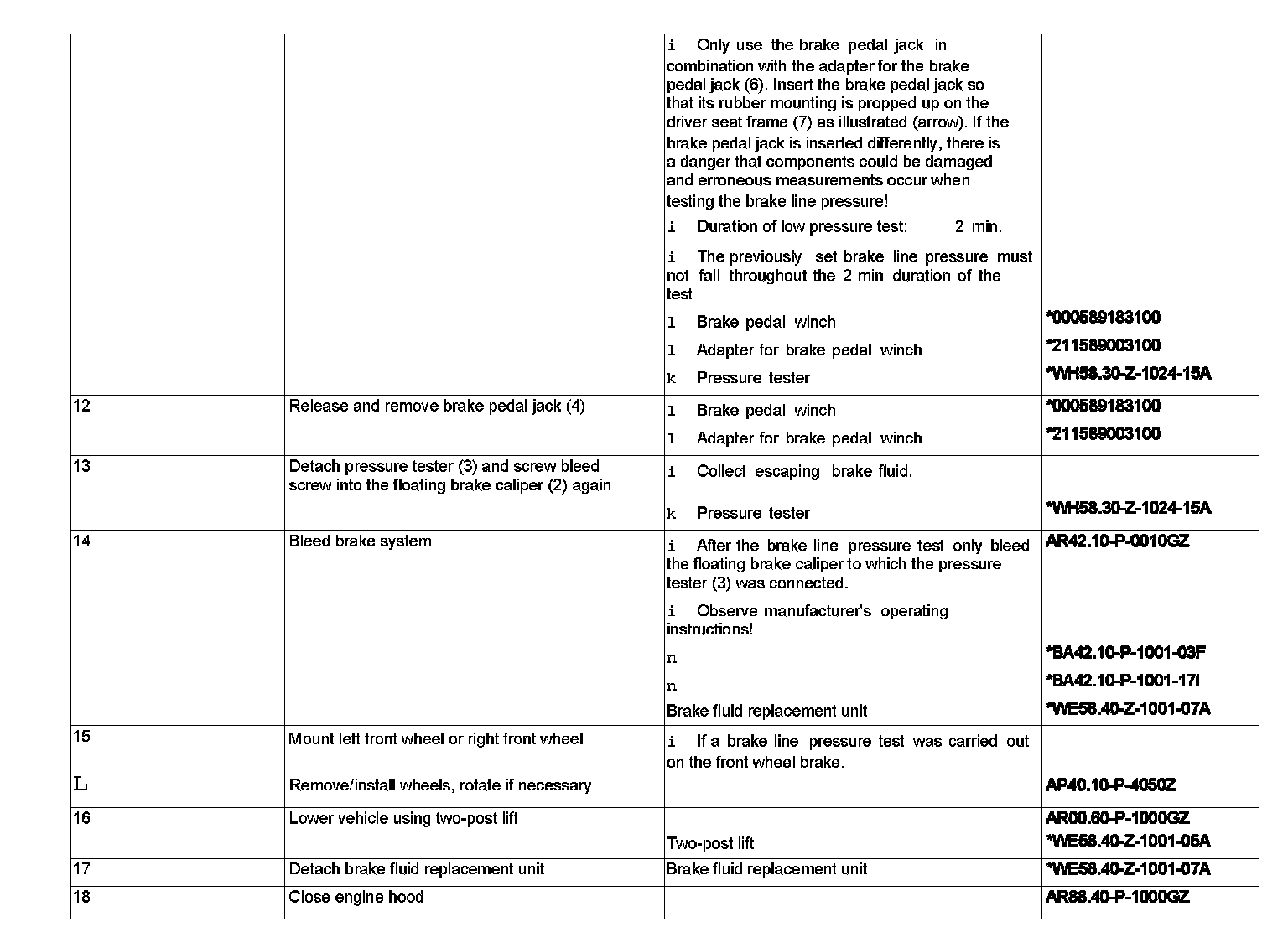

Steps 12 - 18:

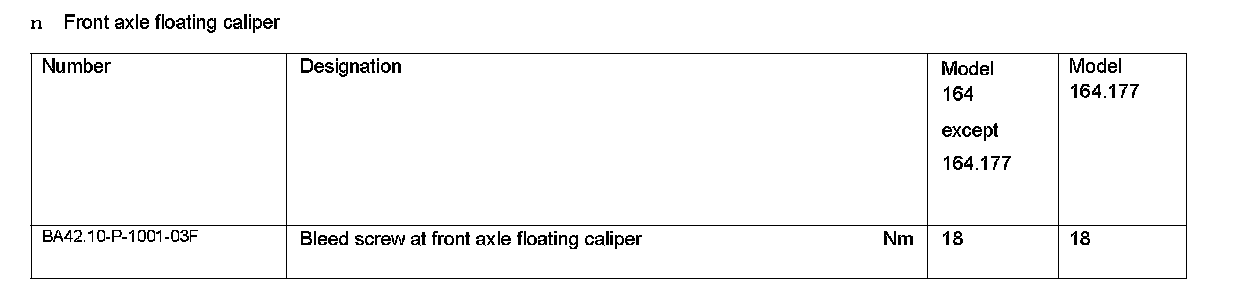

Front Axle Floating Caliper:

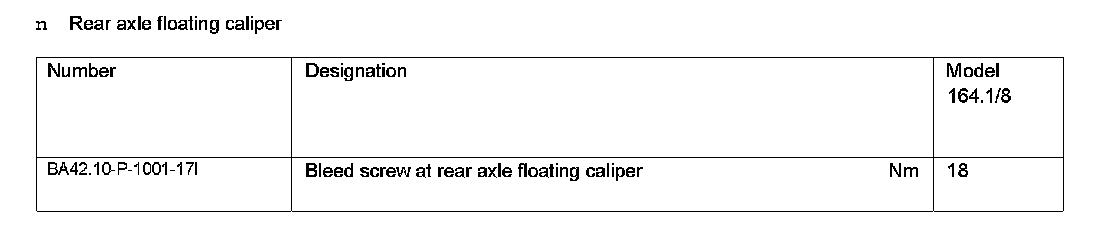

Rear Axle Caliper:

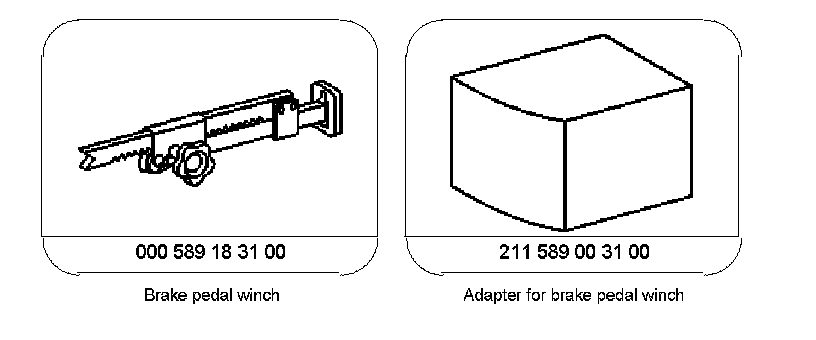

Special Tools:

Commercially Available Tools:

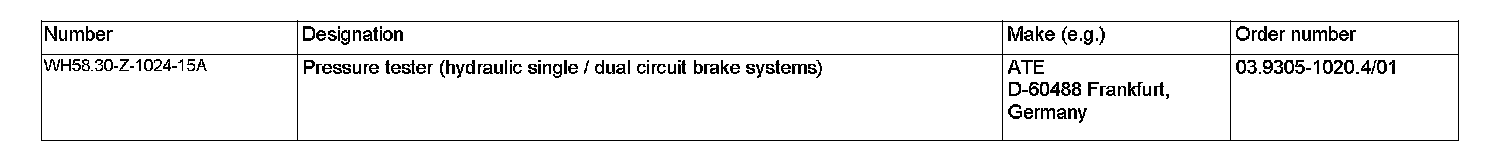

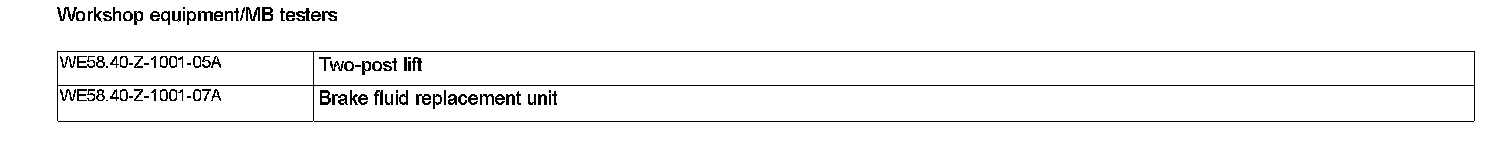

Workshop Equipment/MB Testers:
