AR42.10-P-0013GZ Replace Brake Hoses

AR42.10-P-0013GZ Replace Brake Hoses
MODEL 164, 166

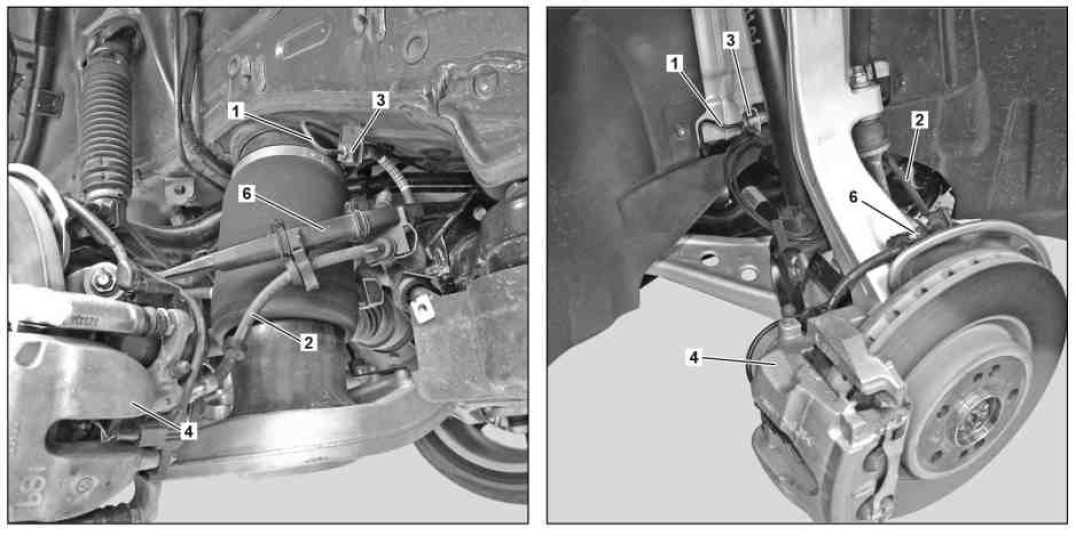

Shown on front axle, model 164

1 Brake line
2 Brake hose
3 Bracket
4 Brake caliper
5 Bracket
6 Bracket

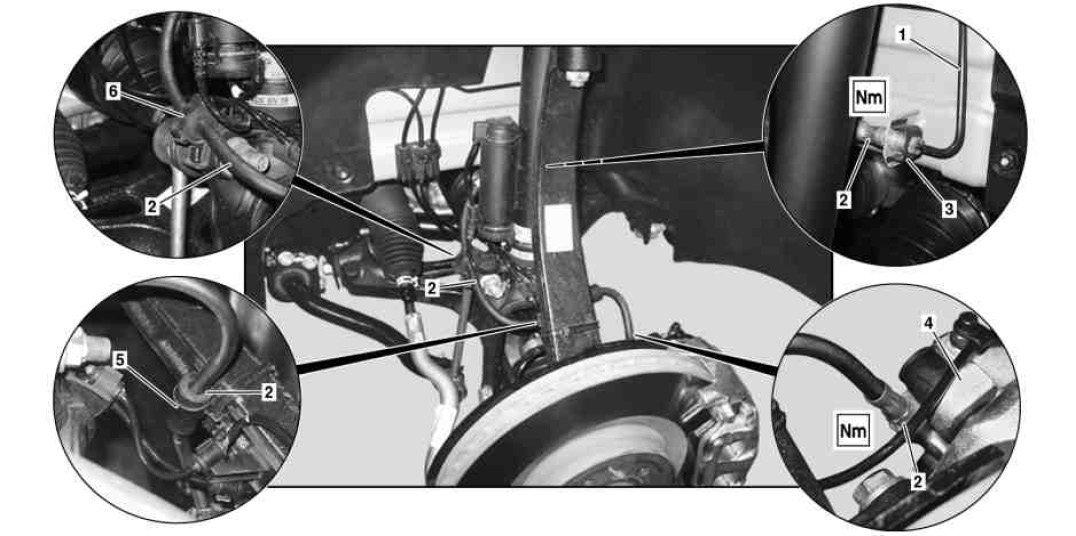

Shown on model 164, rear axle

1 Brake line
2 Brake hose
3 Bracket
4 Brake caliper
6 Bracket

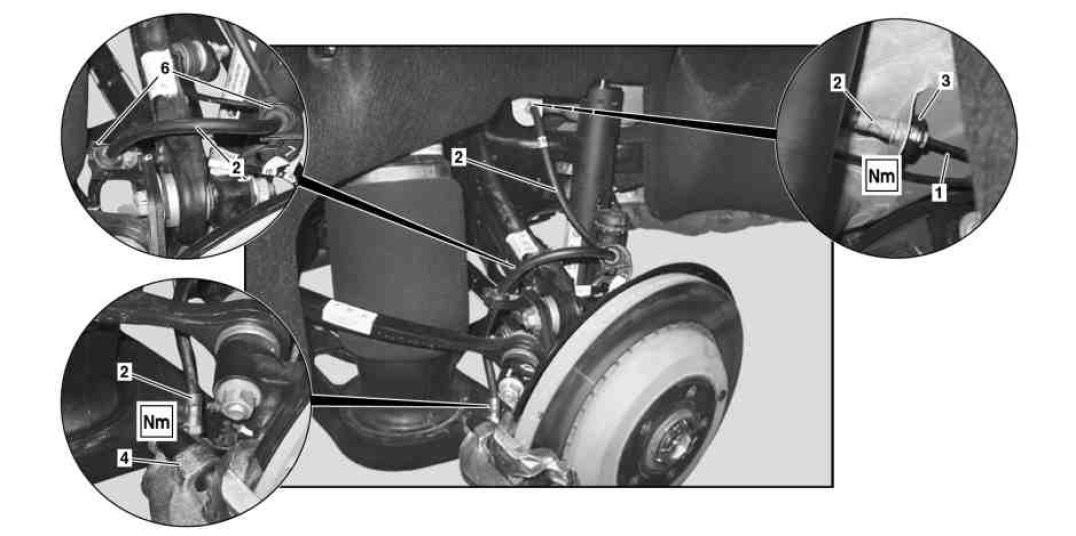

Shows model 166

1 Brake line
2 Brake hose
3 Bracket
4 Brake caliper
6 Bracket

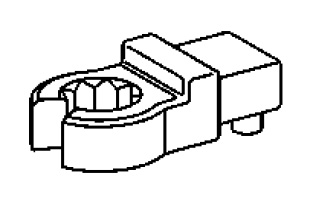

000 589 75 03 00
Box wrench bit





000 589 76 03 00
Ring wrench





129 589 00 91 00
Set of stop plugs





164 589 01 37 00
Pliers
