AR42.10-P-0080W Remove/Install Rear Axle Brake Caliper

AR42.10-P-0080W Remove/Install Rear Axle Brake Caliper
MODEL 166, 172

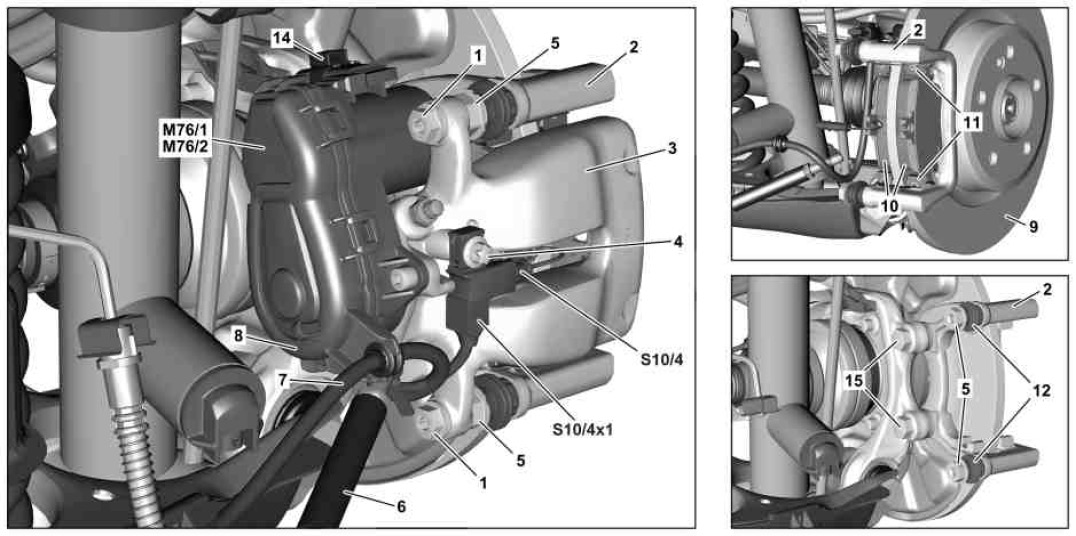

Shows model 172.457

1 Bolt
2 Caliper support
3 Brake caliper
4 Screw
5 Guide bolts
6 Brake hose
7 Electrical line
8 Retaining frame
9 Brake disk
10 Brake pads
11 Spring steel sheet
12 Bellows
14 Electrical connector
15 Screw

M76/1 Left electric parking brake actuator motor
M76/2 Right electric parking brake actuator motor
S10/4 Right rear brake wear sensor
S10/4x1 Right rear brake lining wear sensor electrical connector

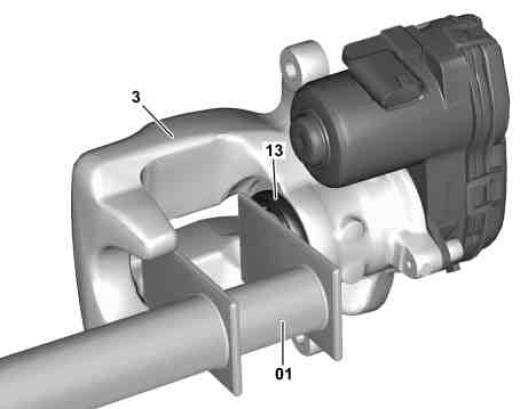

01 Pusher tool
3 Brake caliper
13 Dust boot

















000 589 52 43 00
Pusher tool





129 589 00 91 00
Set of stop plugs
