AR42.10-P-0070GZ Remove/Install Front Axle Brake Caliper



AR42.10-P-0070GZ Remove/install front axle brake caliper

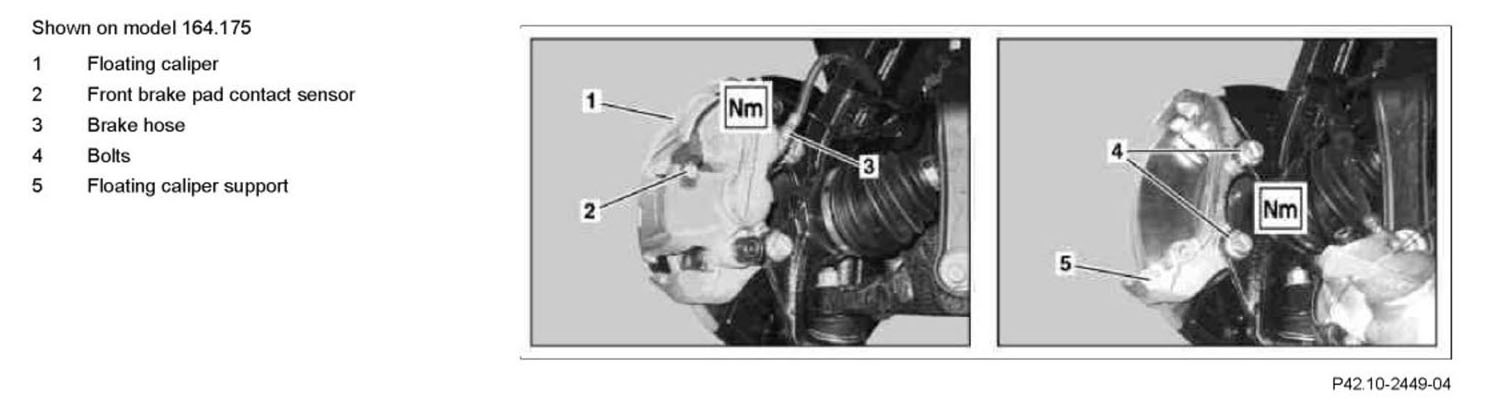

Component Identification:

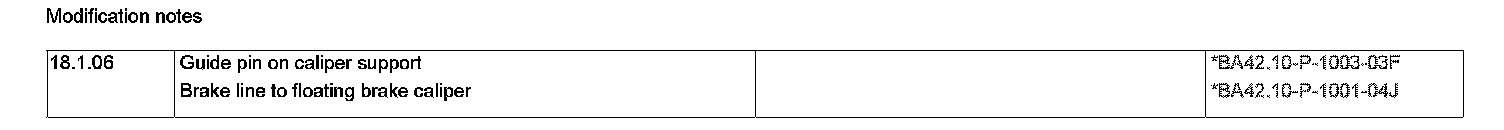

Modification Notes:

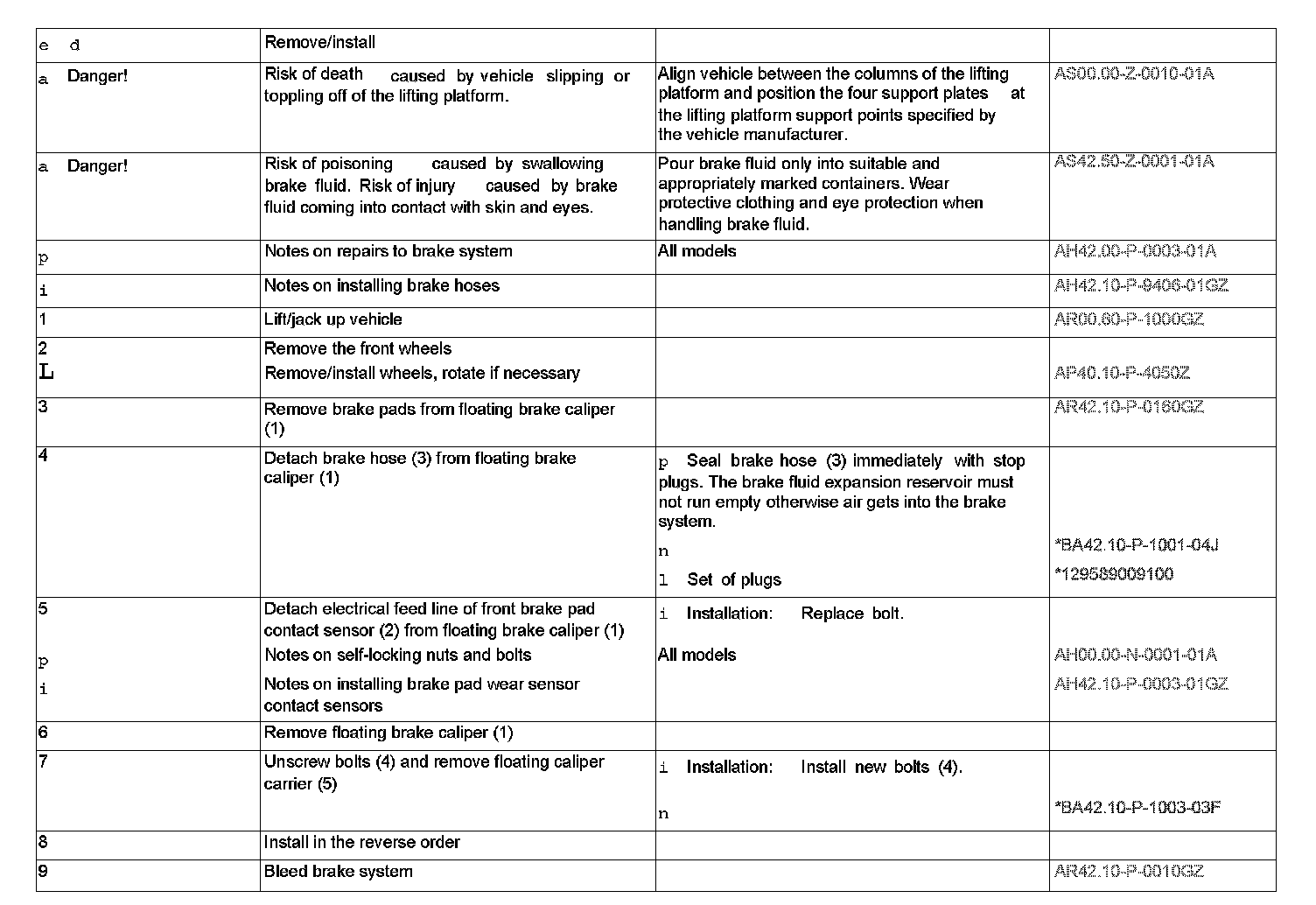

Step 1 - 9:

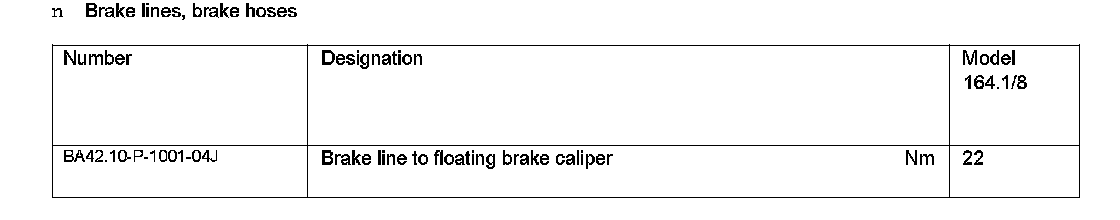

Brake Lines, Brake Hoses:

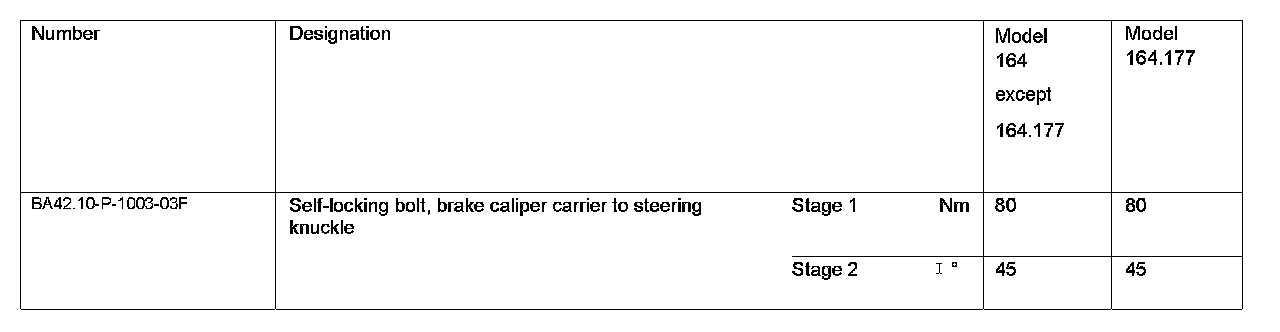

Front Axle Caliper:

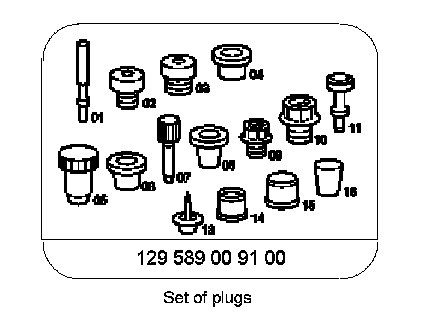

Special Tools:
