Brake Rotor/Disc: Testing and Inspection

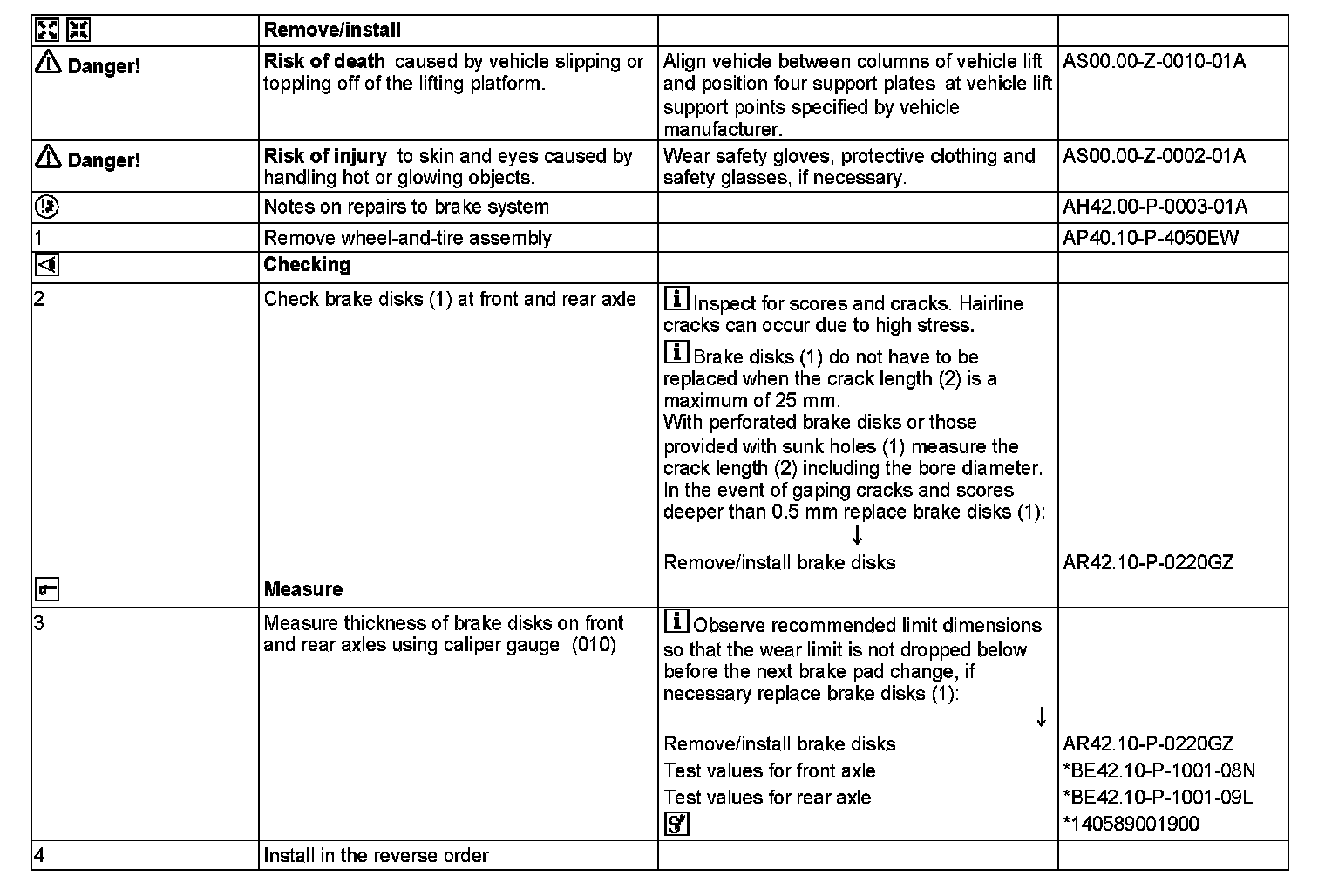

AP42.10-P-4258GQ Inspect Condition of Brake Disks
MODEL 166

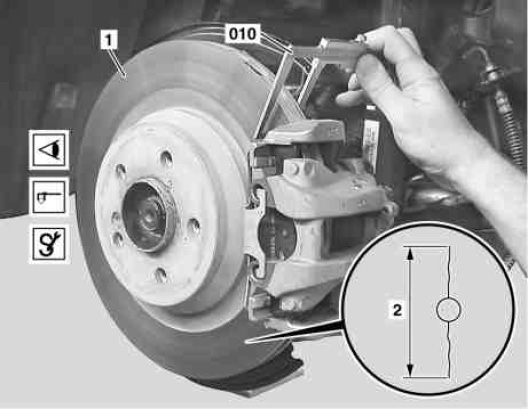

010 Vernier caliper
1 Brake disk
2 Crack length














140 589 00 19 00
Vernier caliper
