AR42.10-P-1700W Removing, Checking and Installing Rear Axle Brake Pads

AR42.10-P-1700W Removing, Checking and Installing Rear Axle Brake Pads
MODEL 166, 172

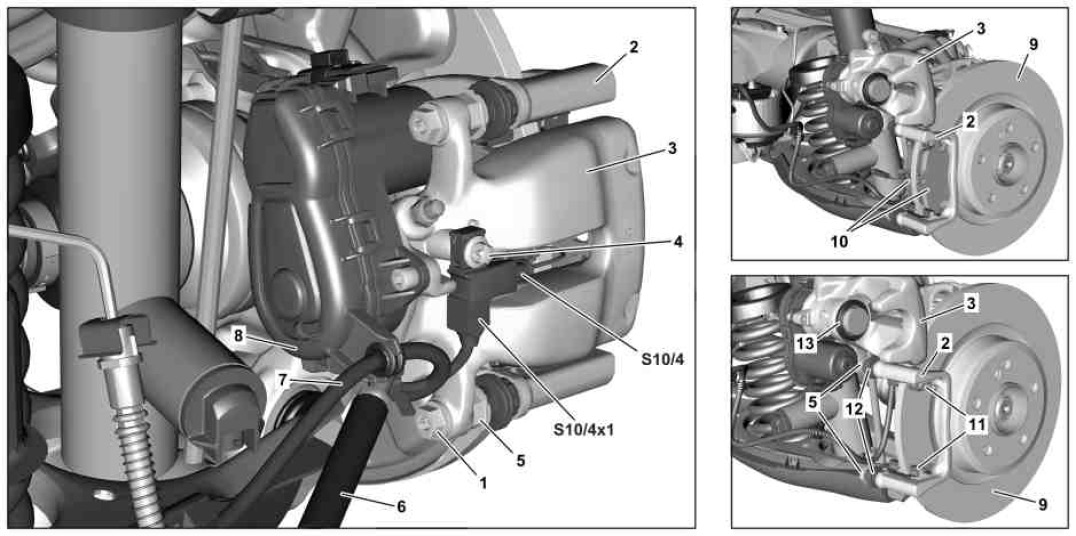

Shows model 172.457

1 Bolt
2 Caliper support
3 Brake caliper
4 Screw
5 Guide bolts
6 Brake hose
7 Electrical line
8 Retaining frame
9 Brake disk
10 Brake pad
11 Spring steel sheet
12 Bellows
13 Dust boot

S10/4 Right rear brake wear sensor
S10/4x1 Right rear brake wear sensor electrical connector

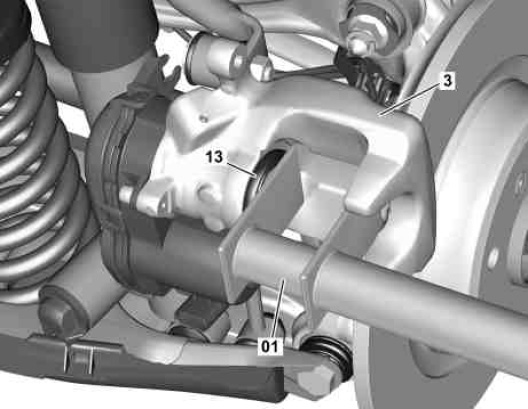

01 Pusher tool
3 Brake caliper
13 Dust boot

















000 589 52 43 00
Pusher tool
