AR42.10-P-1600GQ Remove/Check/Install Front Axle Brake Pads

AR42.10-P-1600GQ Remove/Check/Install Front Axle Brake Pads
MODEL 166

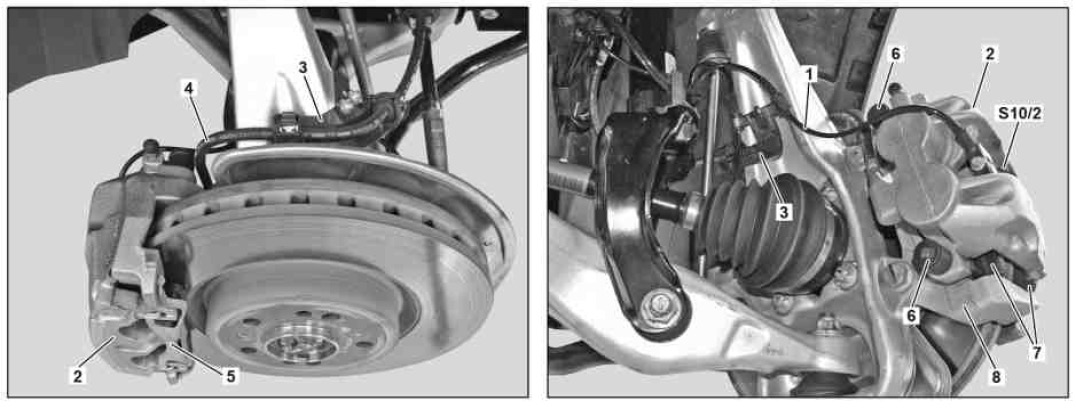

Shown on model 166.057

1 Supply line
2 Brake caliper
3 Bracket
4 Brake hose
5 Spring steel sheet
6 Protective cap
7 Brake pad
8 Caliper support

S10/2 Right front brake wear sensor














000 589 52 43 00
Pusher tool
