Electrical Diagrams

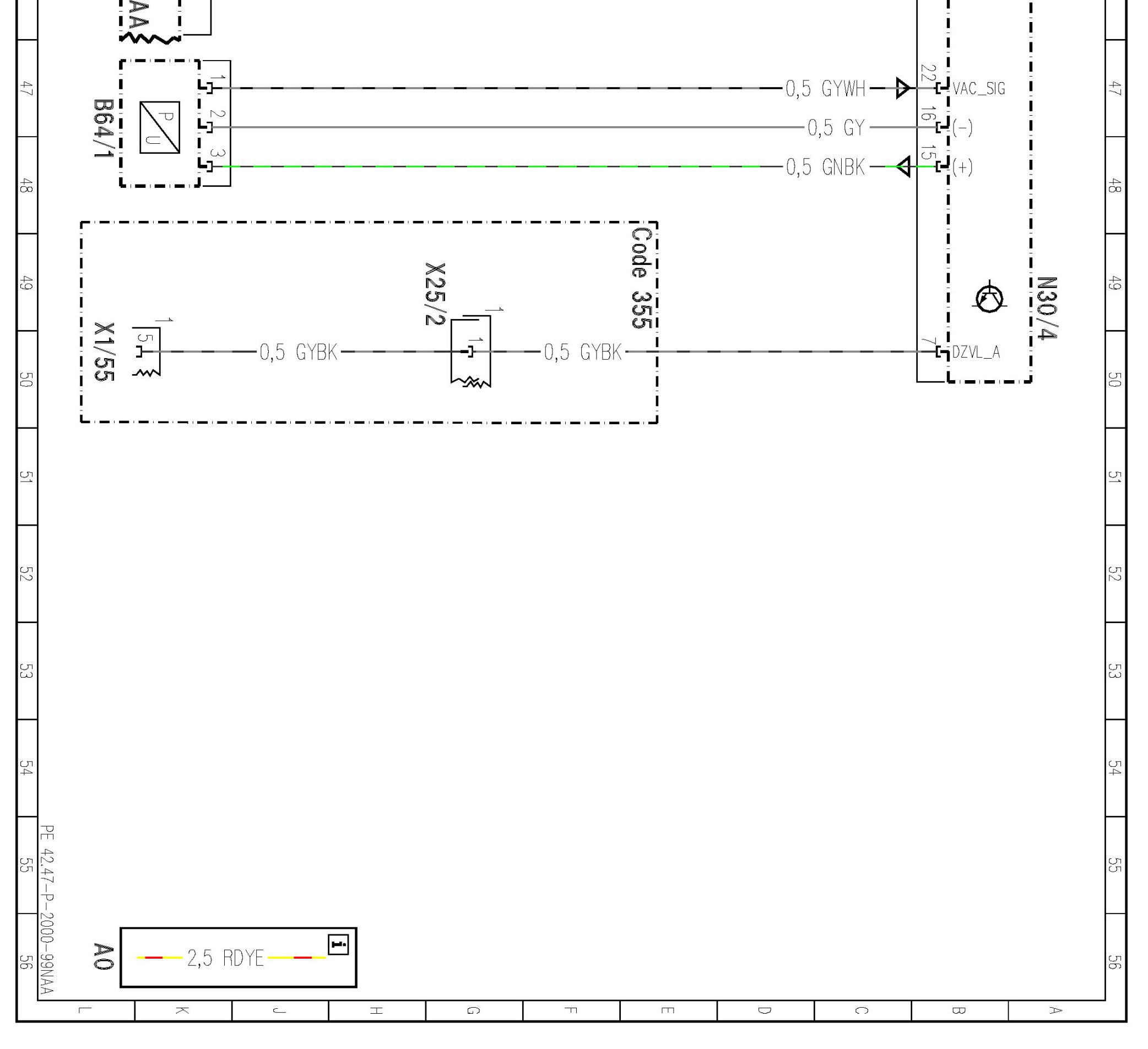

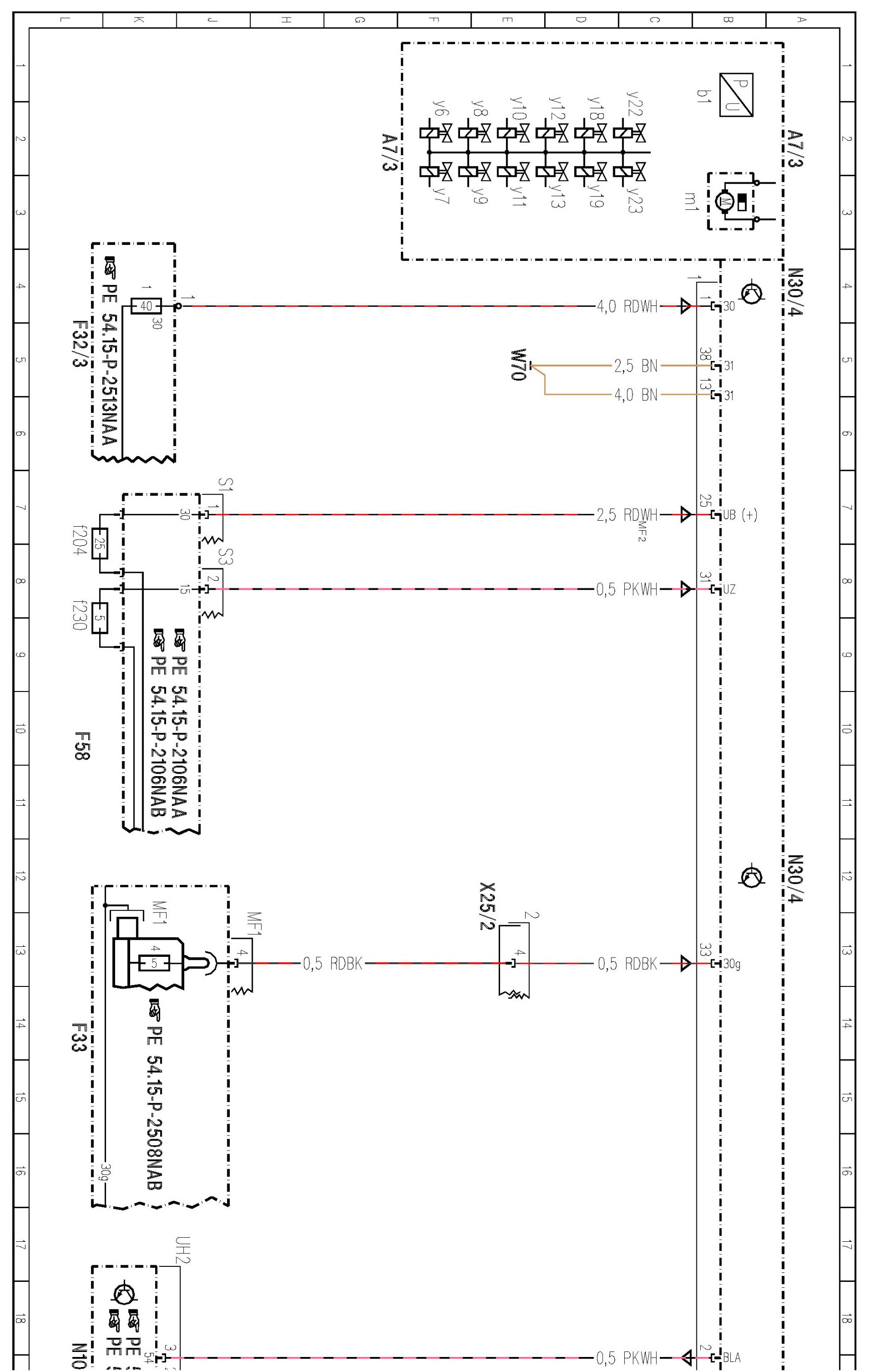

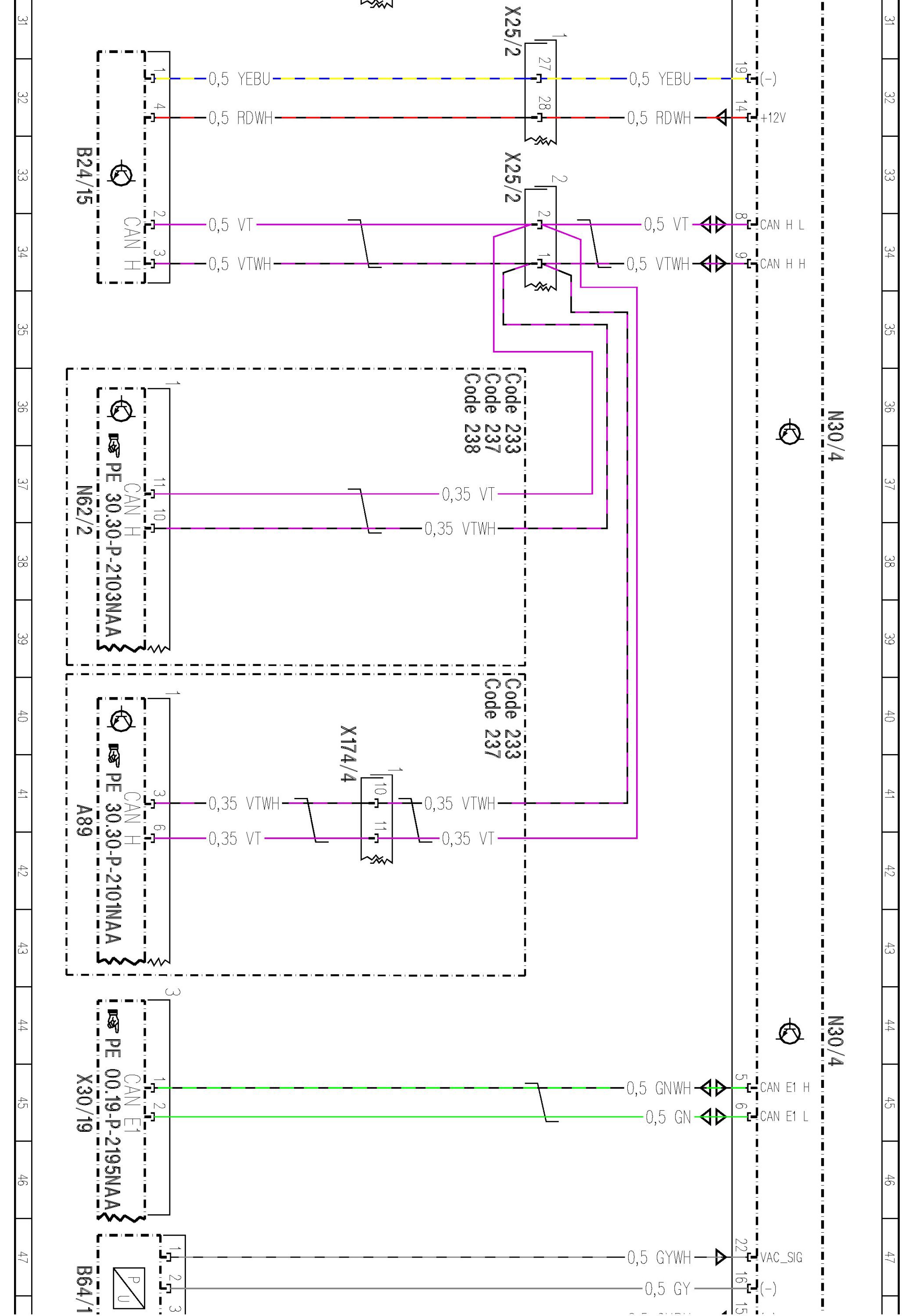

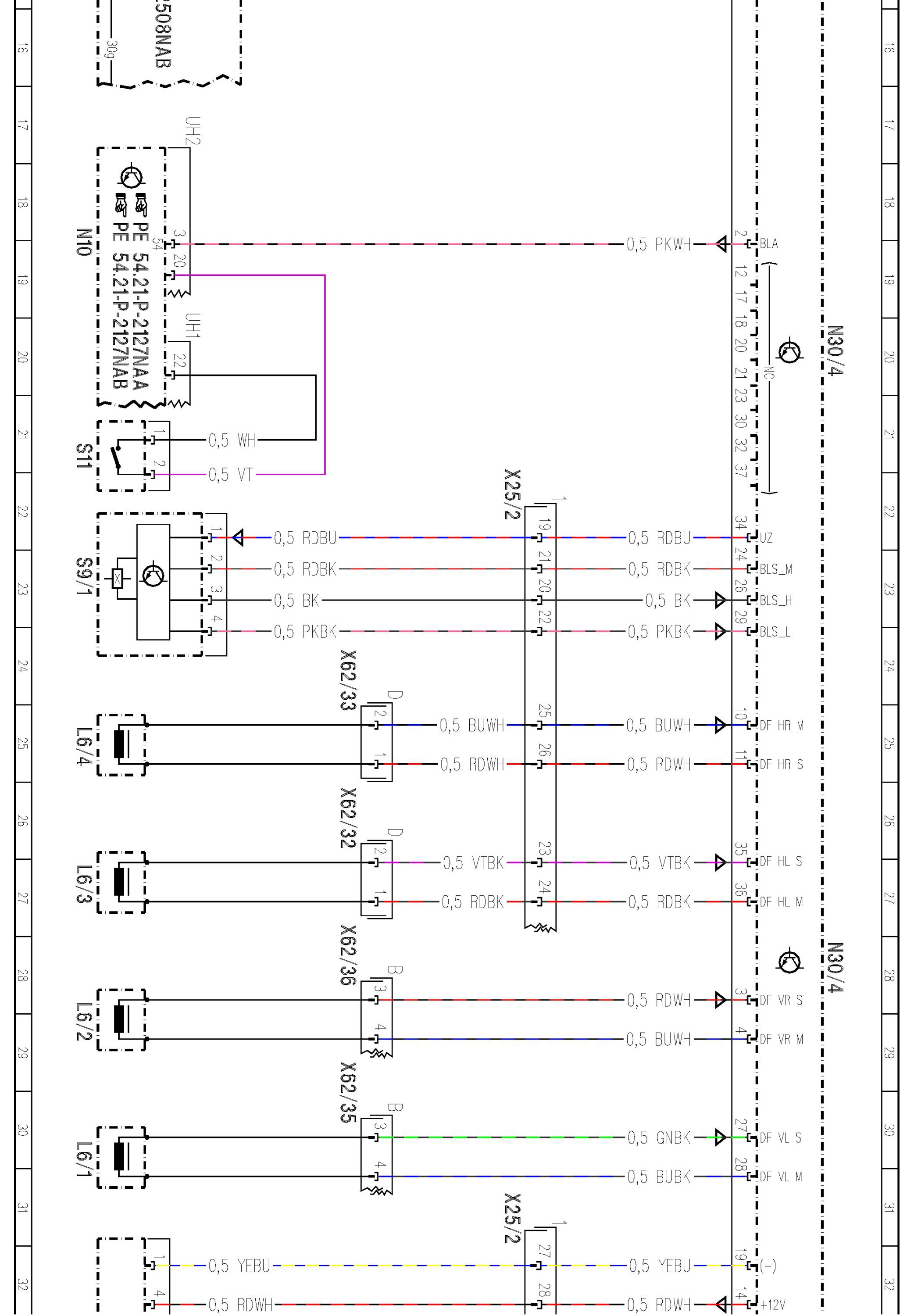

PE42.47-P-2000NAA Adaptive Brake (ABR)
MODEL 166
- Control Unit N30/4, Electronic Stability Program (ESP)










































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
