Spoiler: Service and Repair

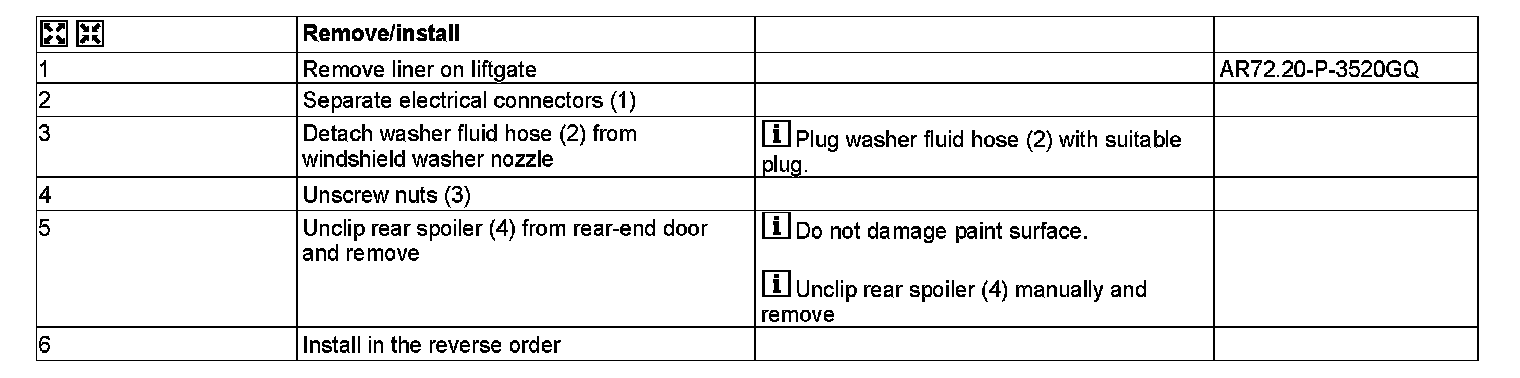

AR72.20-P-4000GQ Remove/Install Rear Spoiler
MODEL 166.0

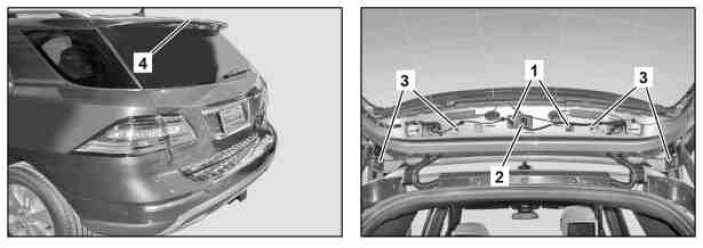

1 Electrical connectors
2 Washer fluid hose
3 Nuts
4 Rear spoiler
