Interior - Play/Noises In Front Seat Cushion Shell Area
Play in front seat frameTopic number LI91.10-P-053601
Version 1
Design group 91.10 Front seats
Date 05-14-2012
Validity Model series 166
Reason for change
Complaint:
Play and/or noises in the area of the front seat cushion shell.
Cause:
Play in the front plastic bearing of the cushion shell at the seat adjustment mechanism.
Remedy:
Replacement of the plastic bearing.

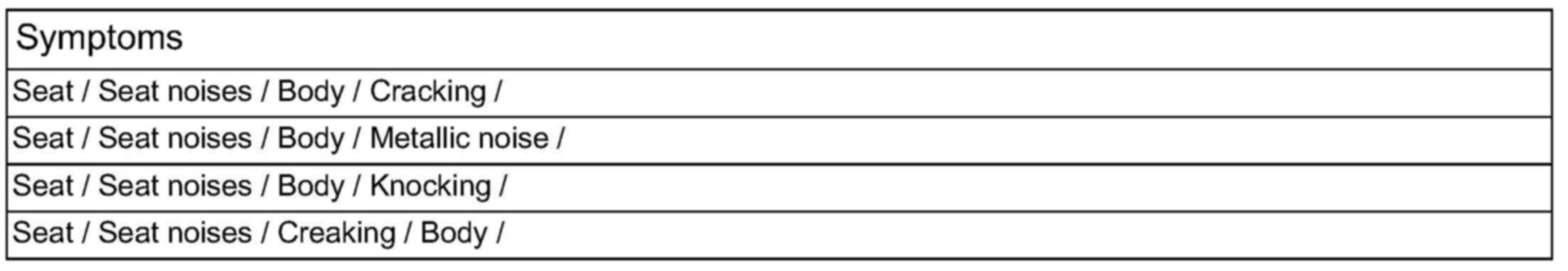

Symptoms

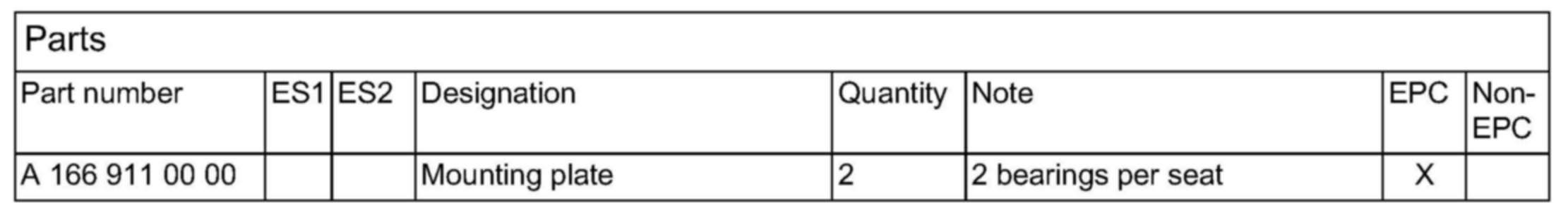

Parts

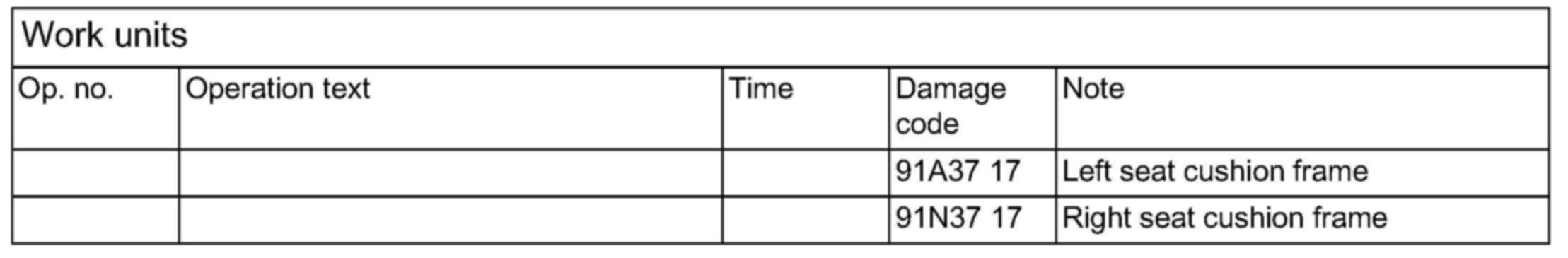

Work units
