Interior - 2nd Row Seat Black/Red Release Handle Can Break

Manual release of 2nd seat row breaks (black/red handle)

Topic number LI91.22-P-055640

Version 1

Design group 91.22 Seat bench, folding seat bench

Date 02-21-2013

Validity Model series X166

Reason for change

Complaint:
When the 2nd seat row is folded, the black/red release handle can break, meaning that the rear bench seat can no longer be unlocked or folded down.

Cause:
Improper operation of the release handle can produce excessive stress on the material.

Remedy:
Replace release handle.

Remove release handle as described in AR91.12-P-0100GQ under operation steps 1-10.

Install release handle in reverse order.


IMPORTANT:

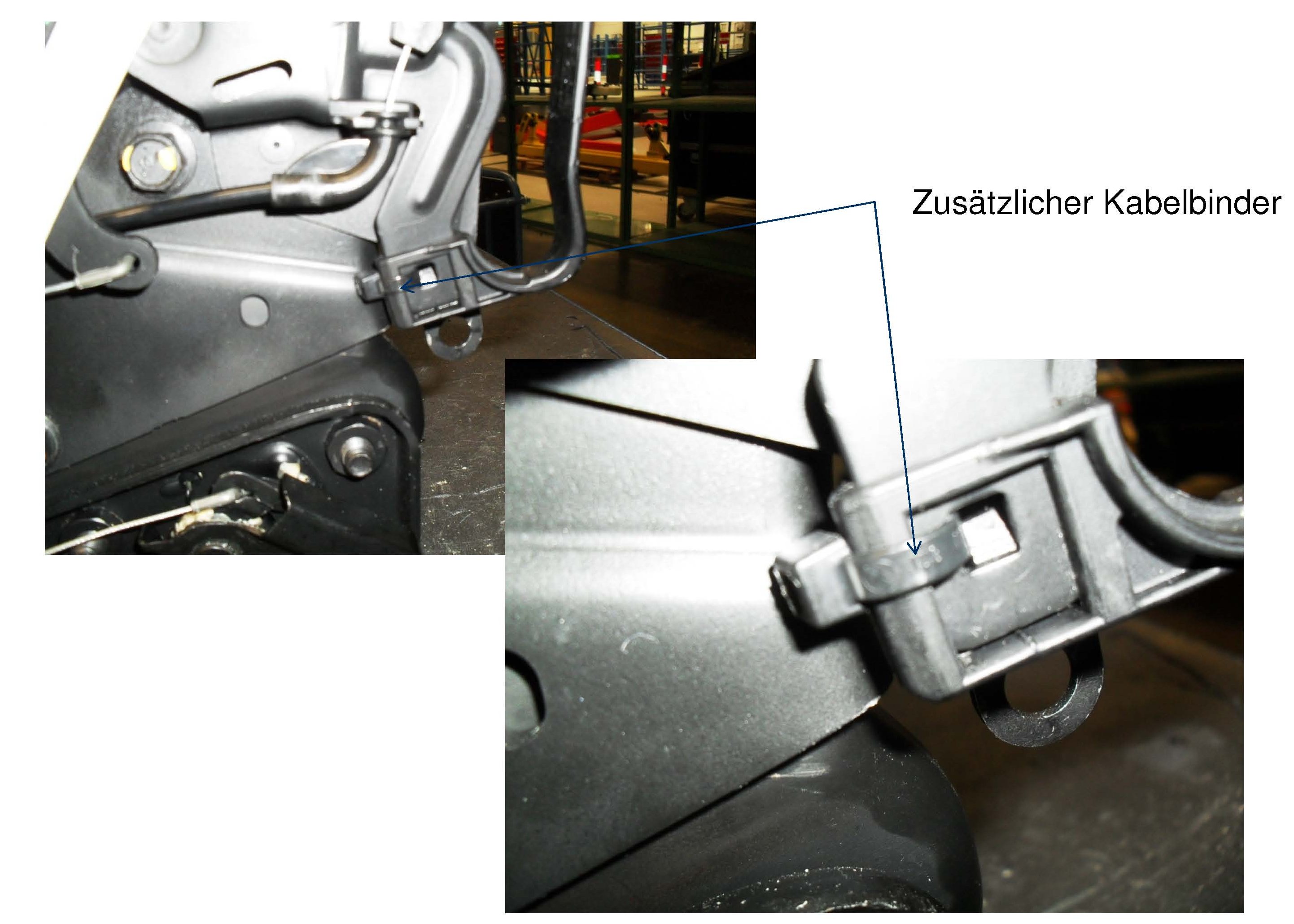

Additionally fasten the release handle to the seat structure using a cable tie (see attachment for position and location of cable tie)

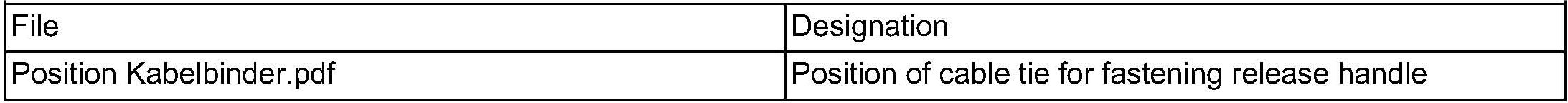

Attachments





Symptoms

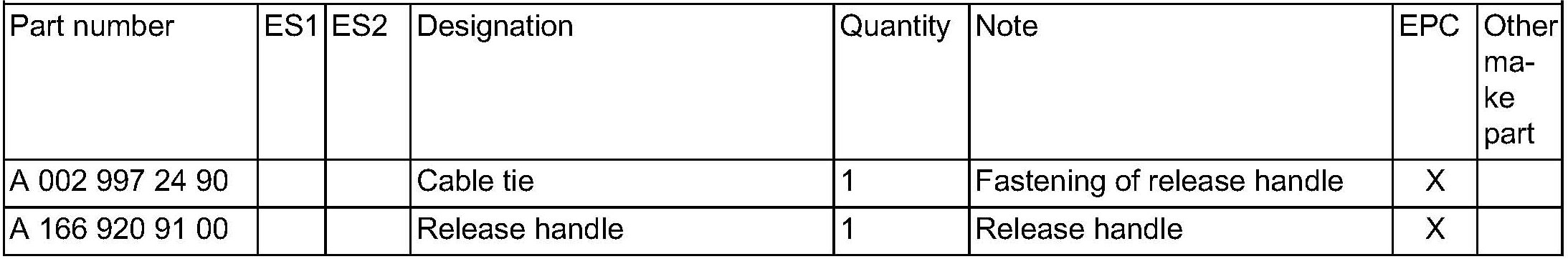

Parts

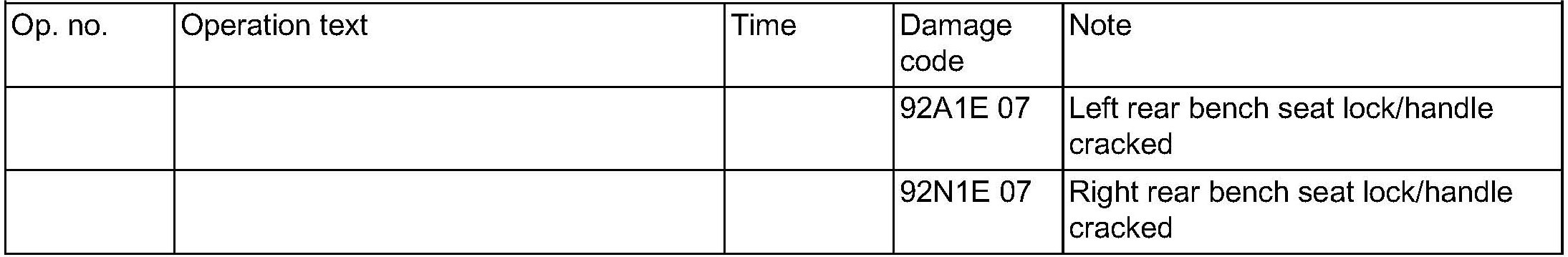

Work units
