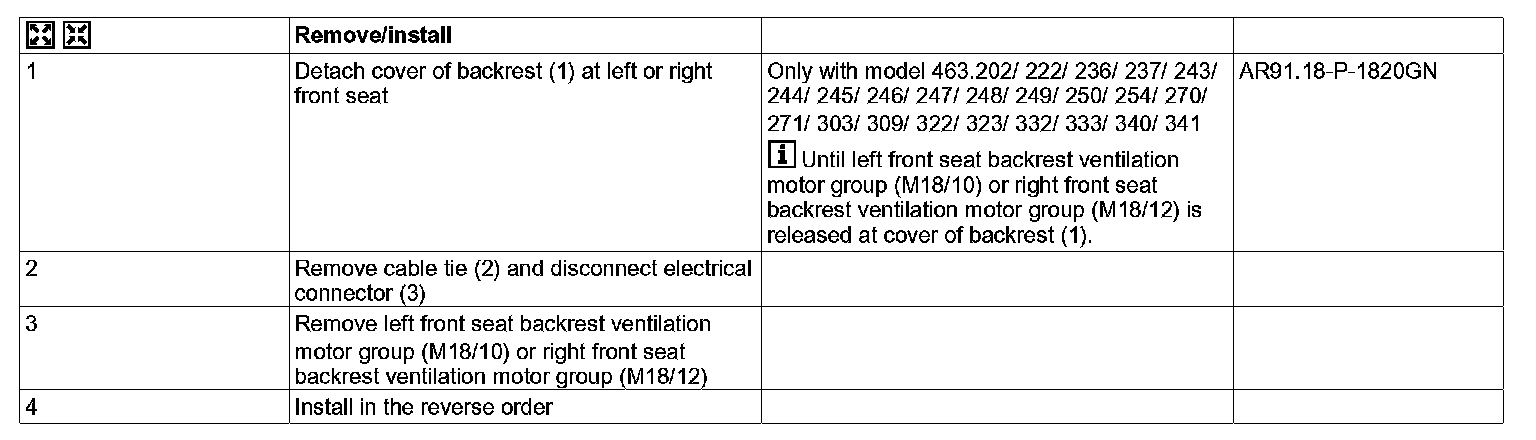

AR91.30-P-1900GZG Remove/Install the Seat Ventilation Motors on the Front Seat Backrest

AR91.30-P-1900GZG Remove/install The Seat Ventilation Motors On The Front Seat Backrest

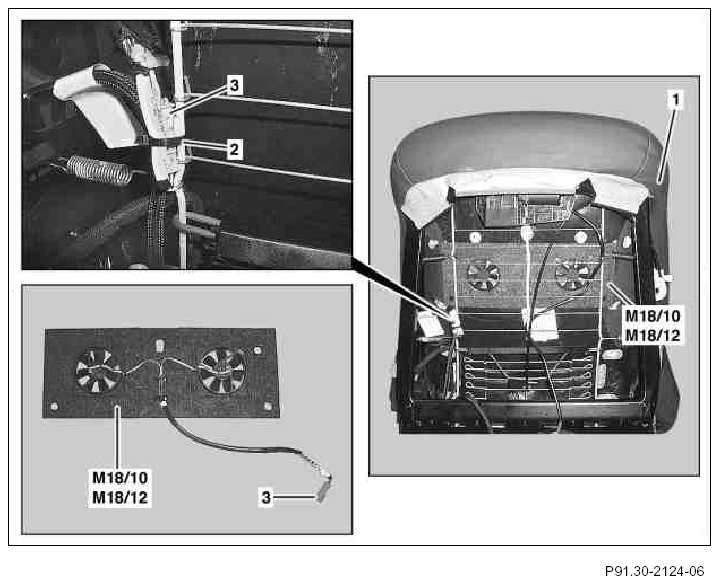

1 Cover of backrest
2 Cable tie
3 Electrical connector
M18/10 Left front seat backrest ventilation motor group
M18/12 Right front seat backrest ventilation motor group
