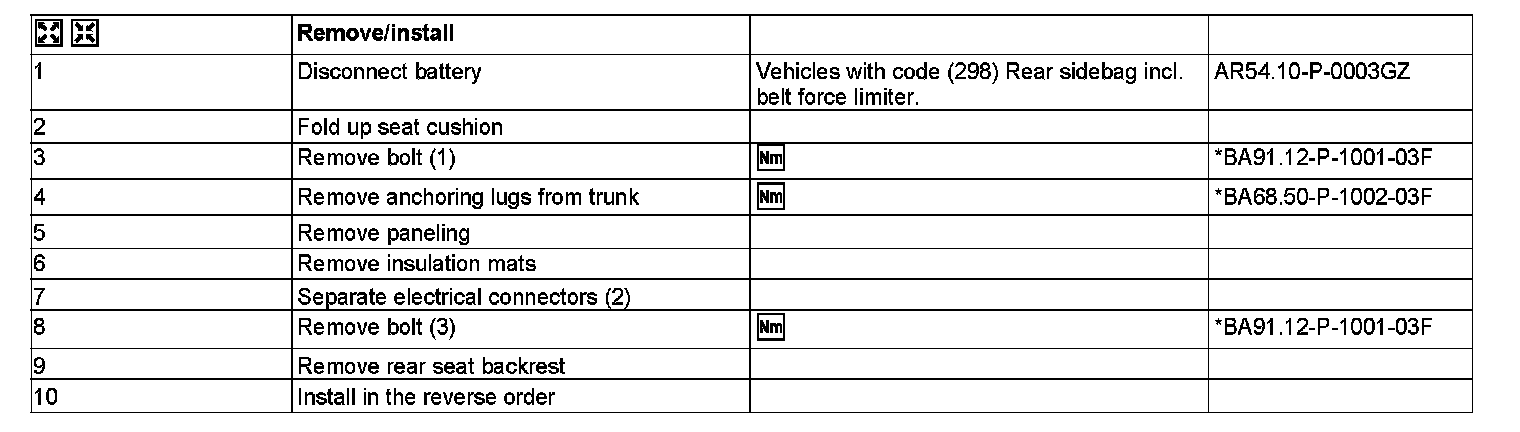

AR91.12-P-1620GQA Remove/Install Rear Seat Backrest




AR91.12-P-1620GQA Remove/Install Rear Seat Backrest
MODEL 166

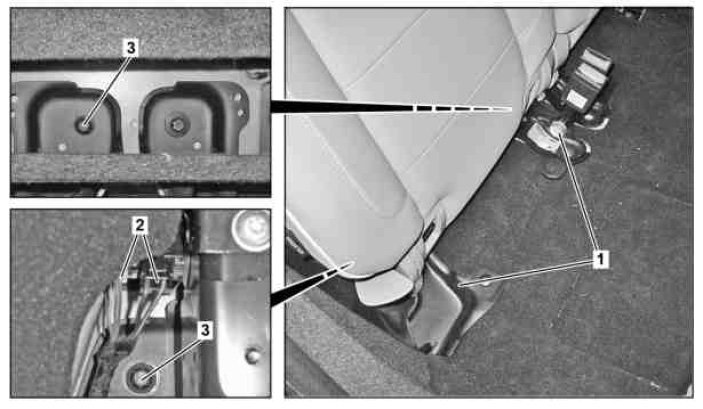

40% rear seat





1 Bolts
2 Electrical connector
3 Bolts
