AR91.12-P-1620GQ Remove/Install Rear Seat Backrest




AR91.12-P-1620GQ Remove/Install Rear Seat Backrest
MODEL 166

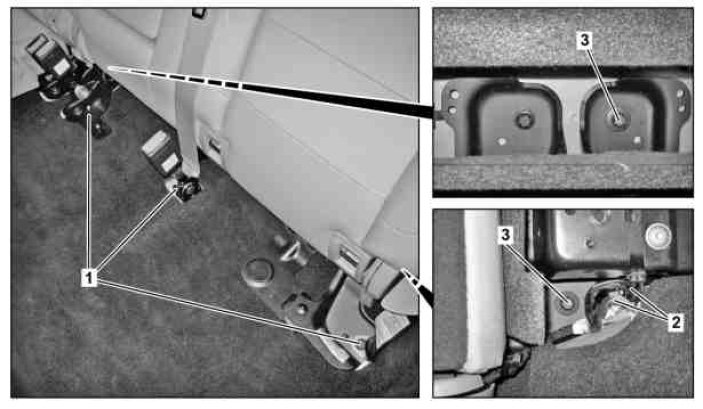

60% rear seat





1 Bolts
2 Electrical connectors
3 Bolts
