AR91.12-P-1020GQA Remove/Install Rear Seat Cushion




AR91.12-P-1020GQA Remove/Install Rear Seat Cushion
MODEL 166

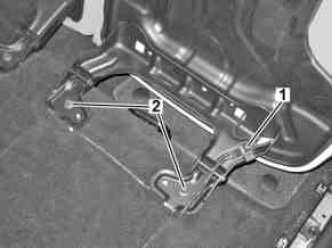

40% rear seat cushion





1 Electrical connectors
2 Bolts
