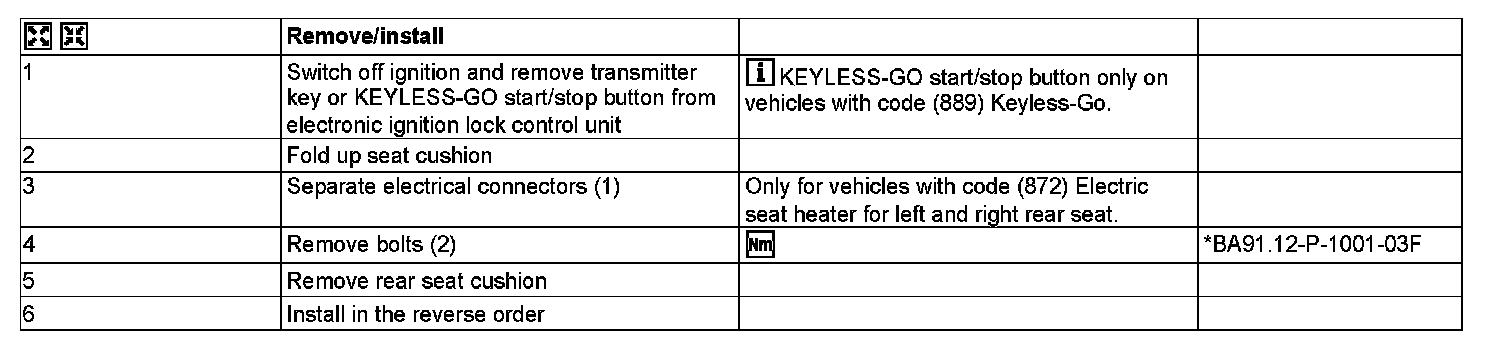

AR91.12-P-1020GQ Remove/Install Rear Seat Cushion




AR91.12-P-1020GQ Remove/Install Rear Seat Cushion
MODEL 166

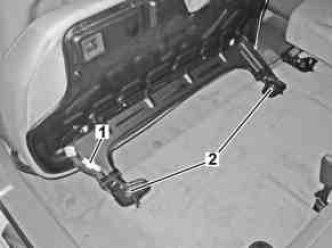

60% rear seat cushion





1 Electrical connectors
2 Bolts
