AR91.16-P-1775GZ Remove/Install Rear Seat Backrest Head Restraint Guides



AR91.16-P-1775GZ Remove/Install Rear Seat Backrest Head Restraint Guides
- 2nd seat row

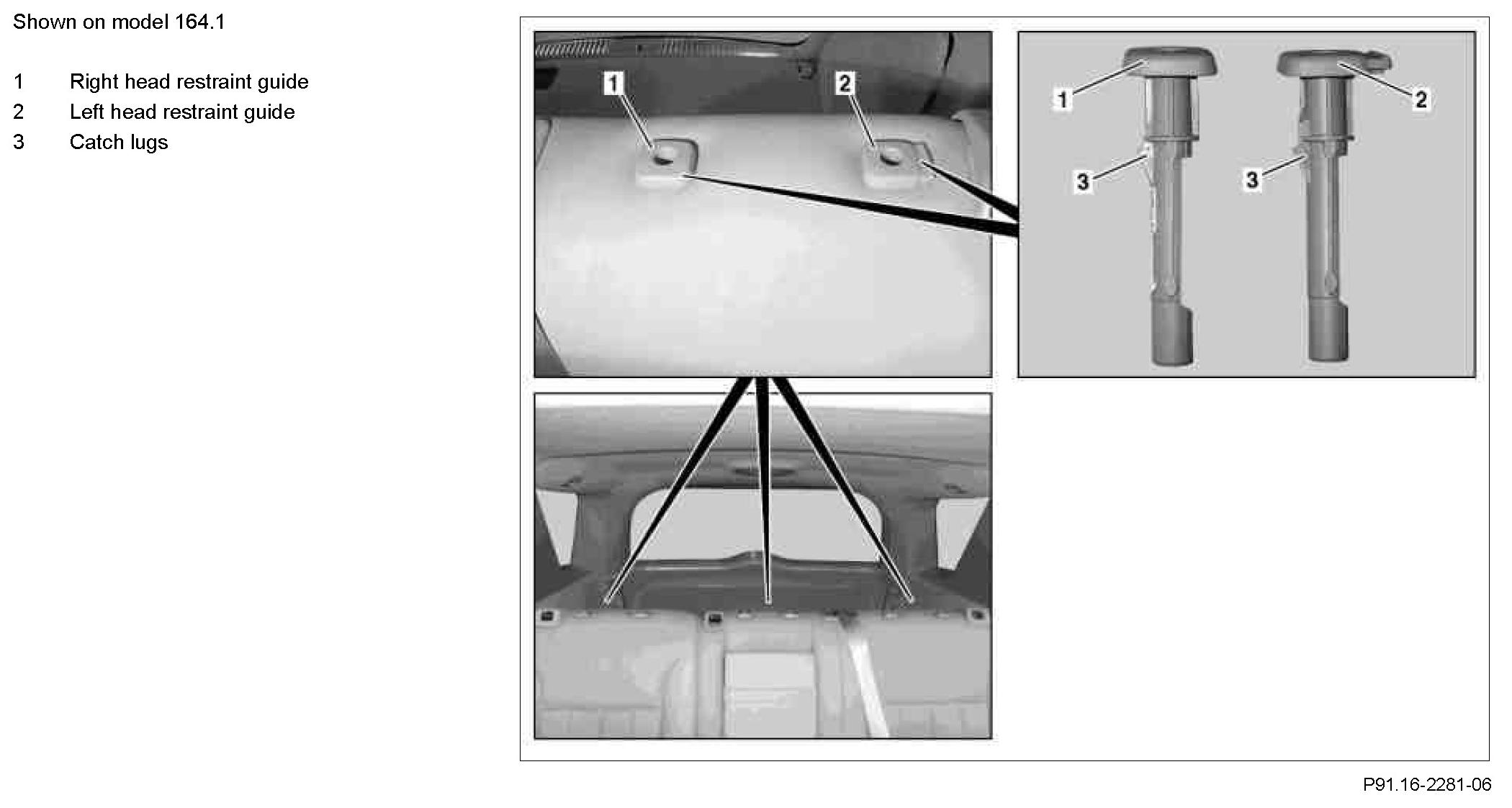

Component Identification:

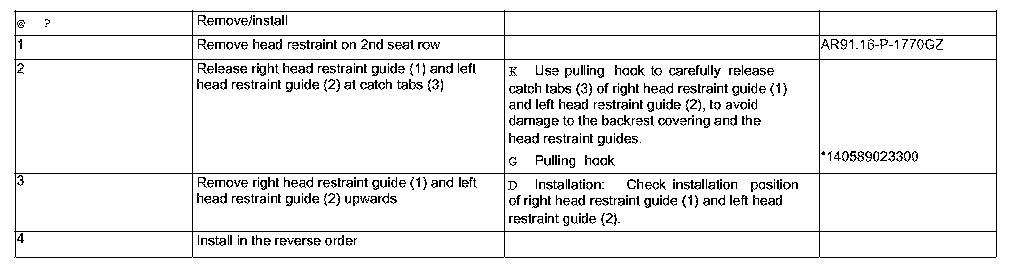

Steps 1 - 4:

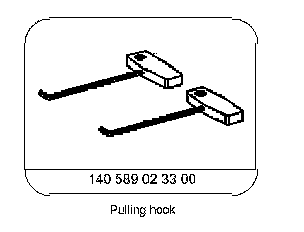

Special Tools:
