Mercedes Benz Truck
>>
2012
>>
ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Head Restraint System
>>
Head Rest
>>
Service and Repair
>>
AR91.16-P-1770GZ Removing Rear Head Restraint
AR91.16-P-1770GZ Removing Rear Head Restraint
AR91.16-P-1770GZ Removing Rear Head Restraint
- 2nd seat row

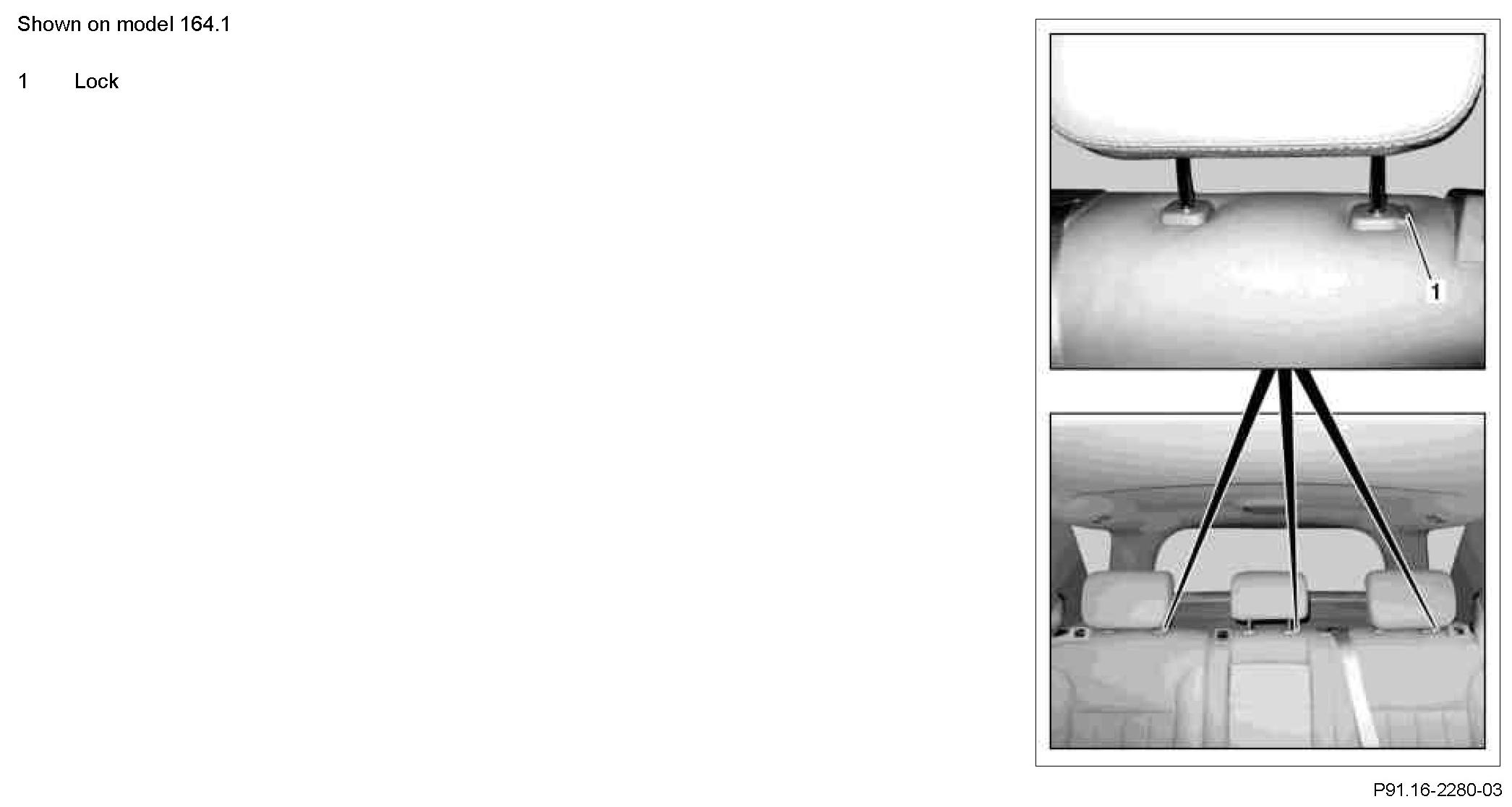

Component Identification:

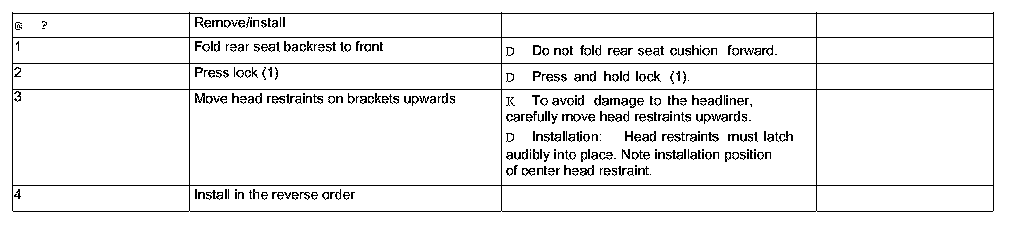

Steps 1 - 4:
