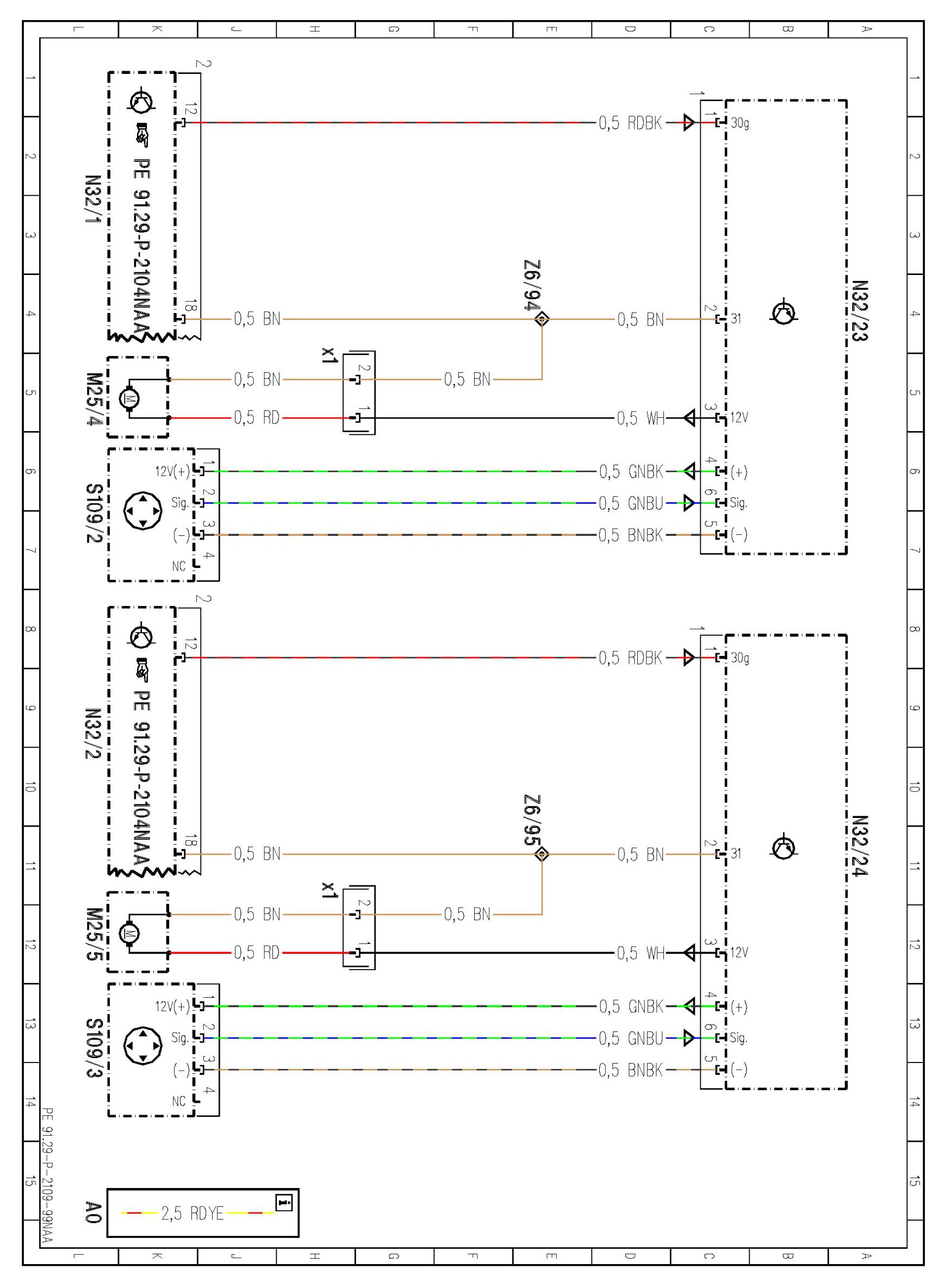

PE91.29-P-2109NAA Lumbar Support Wiring Diagram

PE91.29-P-2109NAA Lumbar Support Wiring Diagram
MODEL 166
- with CODE (560) Left And Right Electrically Adjustable Driver Seat
- with CODE (275) Memory Package (Driver Seat, Steering Column, Mirrors)
- with CODE (P64) Memory Package

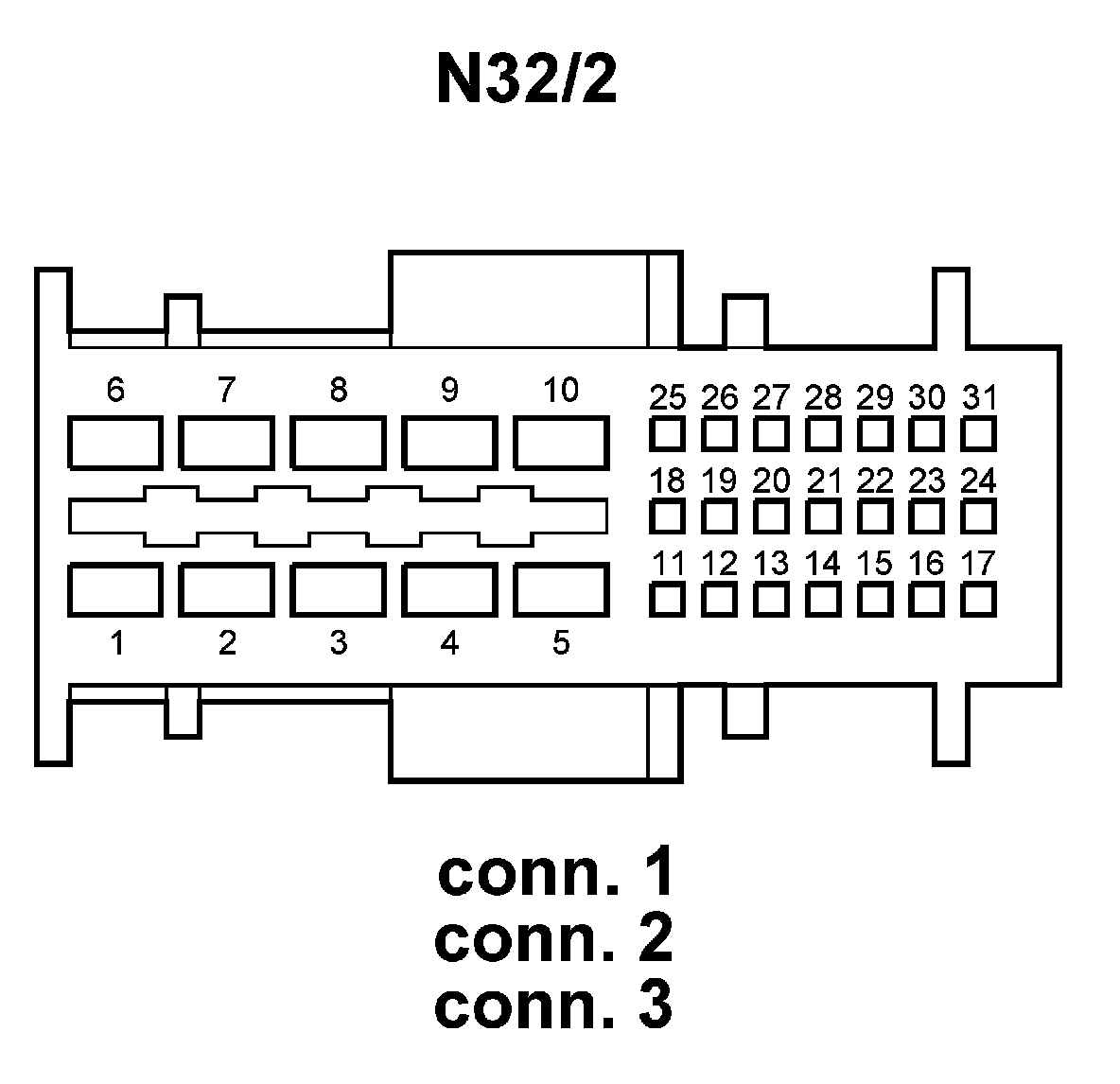

- Control Unit N32/23, N32/24


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
