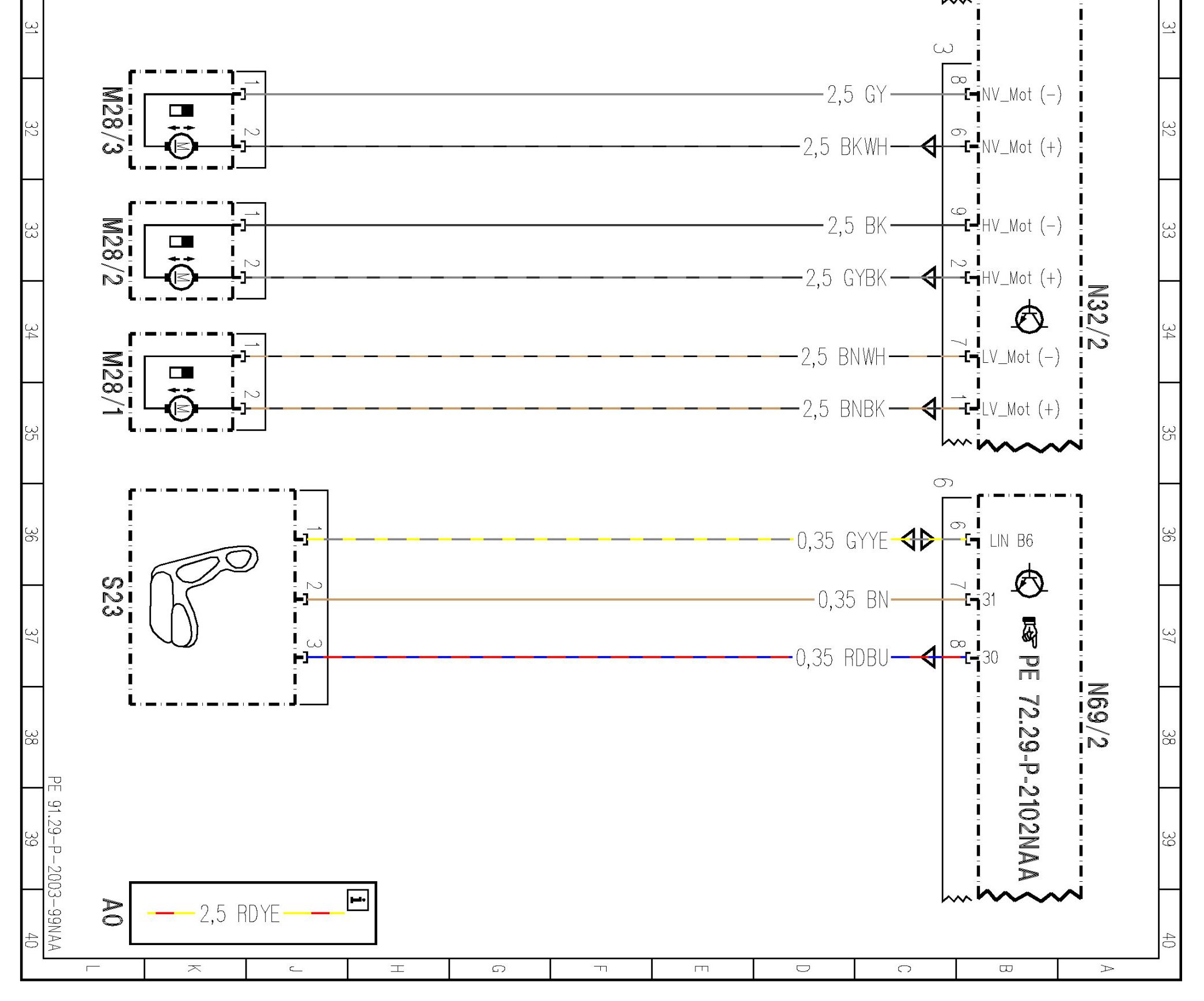

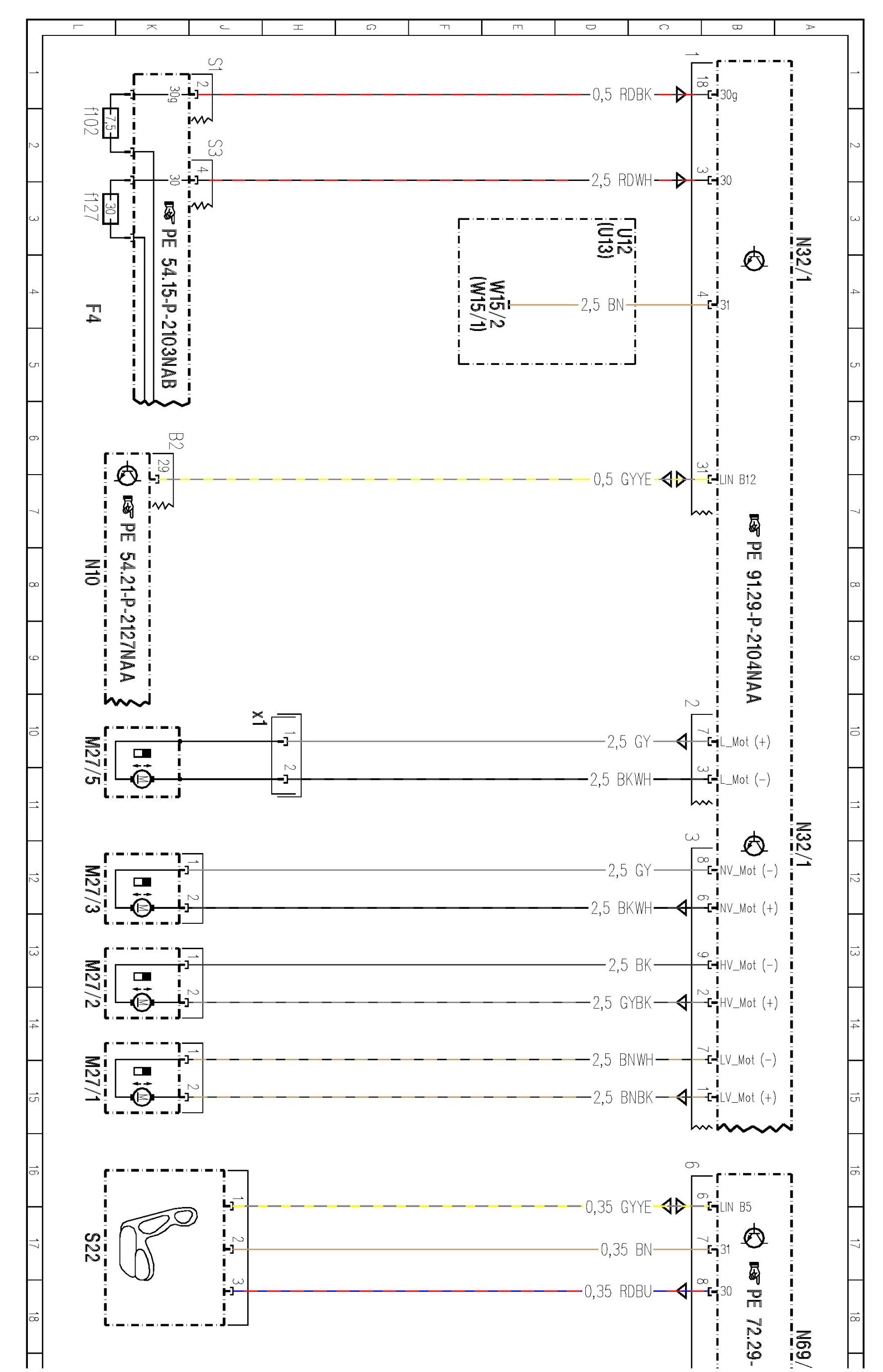

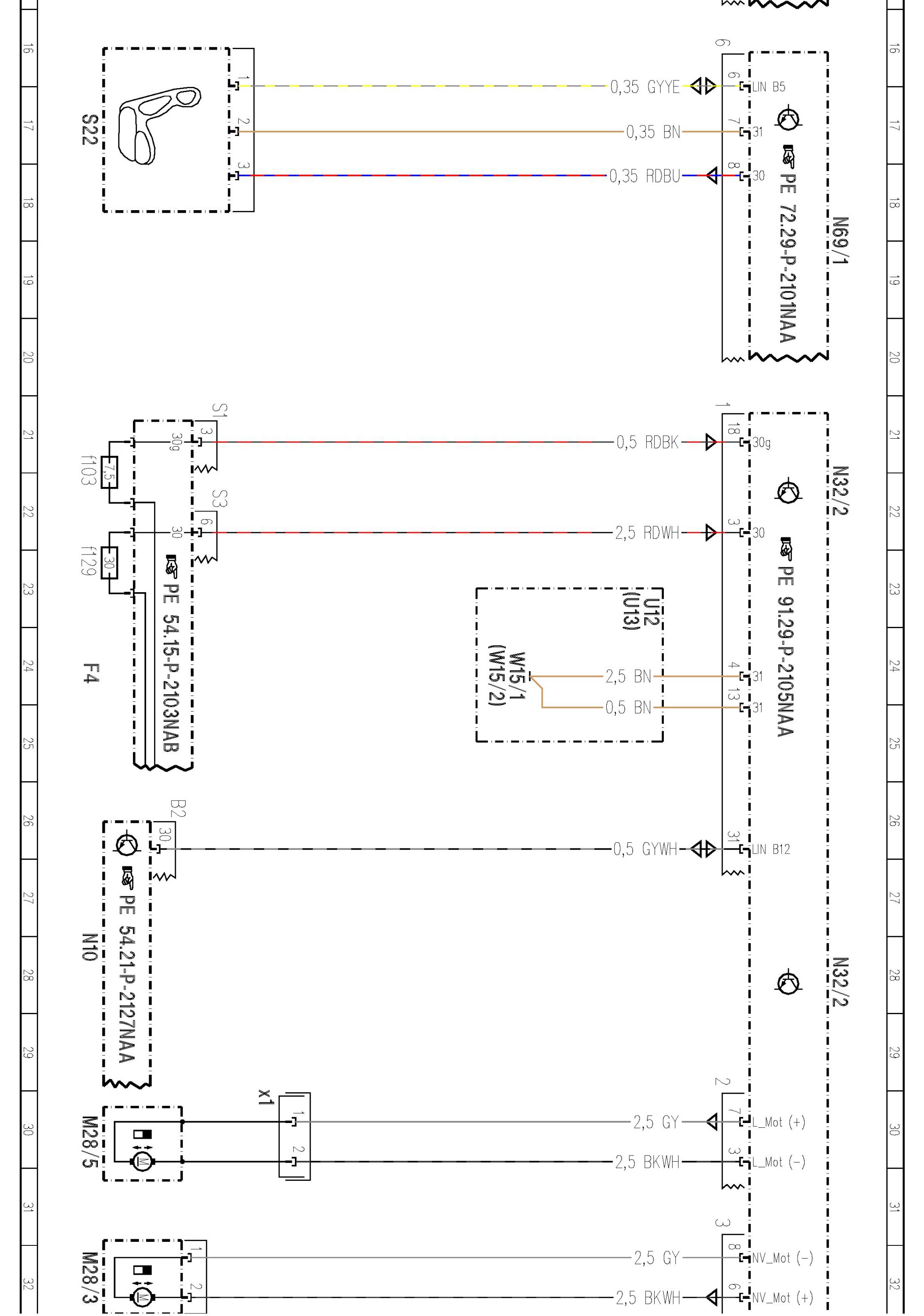

PE91.29-P-2003NAA Partially Electric Seat Adjustment (ESA [ESV]) Wiring Diagram

PE91.29-P-2003NAA Partially Electric Seat Adjustment (ESA [ESV]) Wiring Diagram
MODEL 166
except CODE (275) Electrically Adjustable Front Seats Memory Package






















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
