Sunroof / Moonroof Panel: Adjustments



AR77.20-P-1100GZ Adjust Tilting/Sliding Roof Cover
- with CODE (414) Power glass tilting/sliding roof

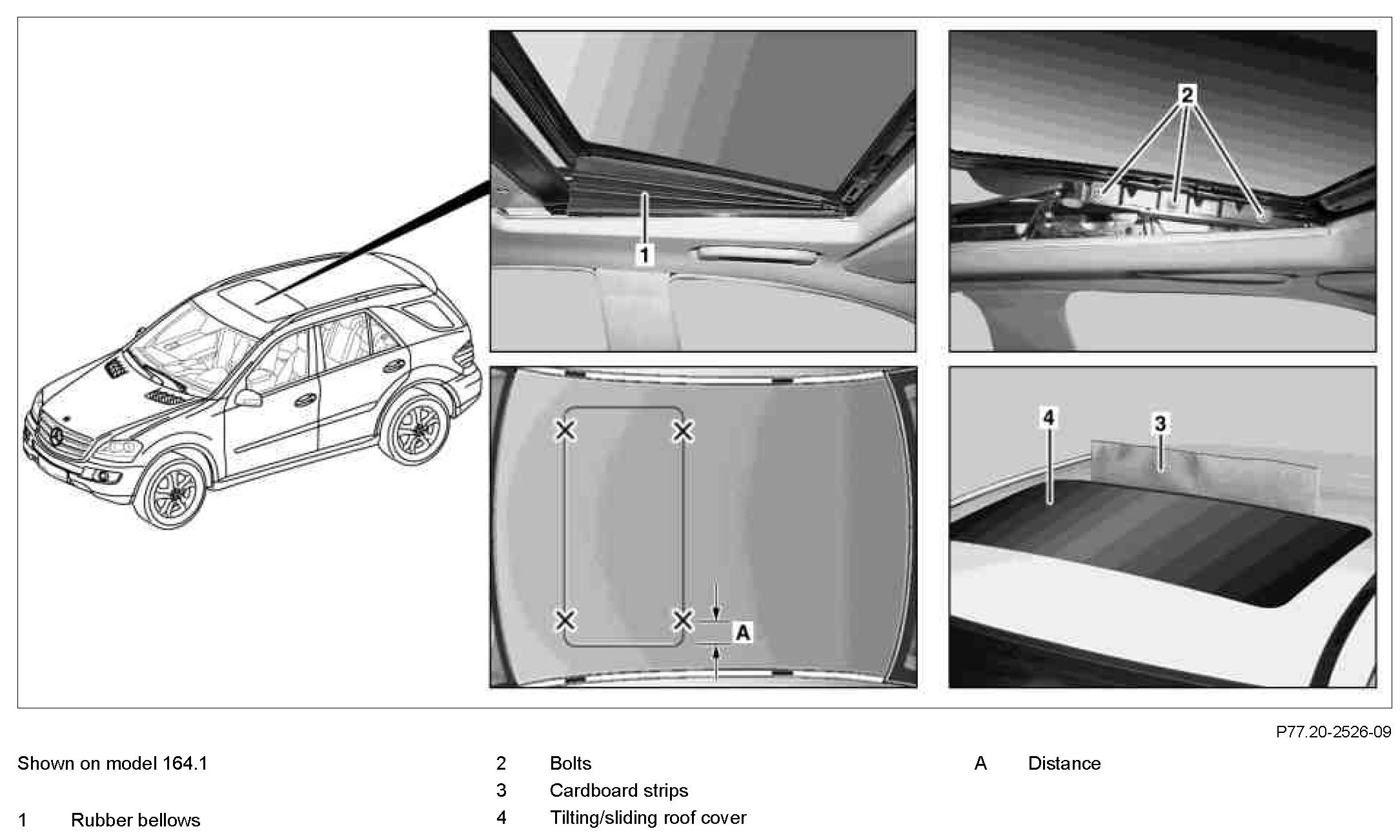

Component Identification:

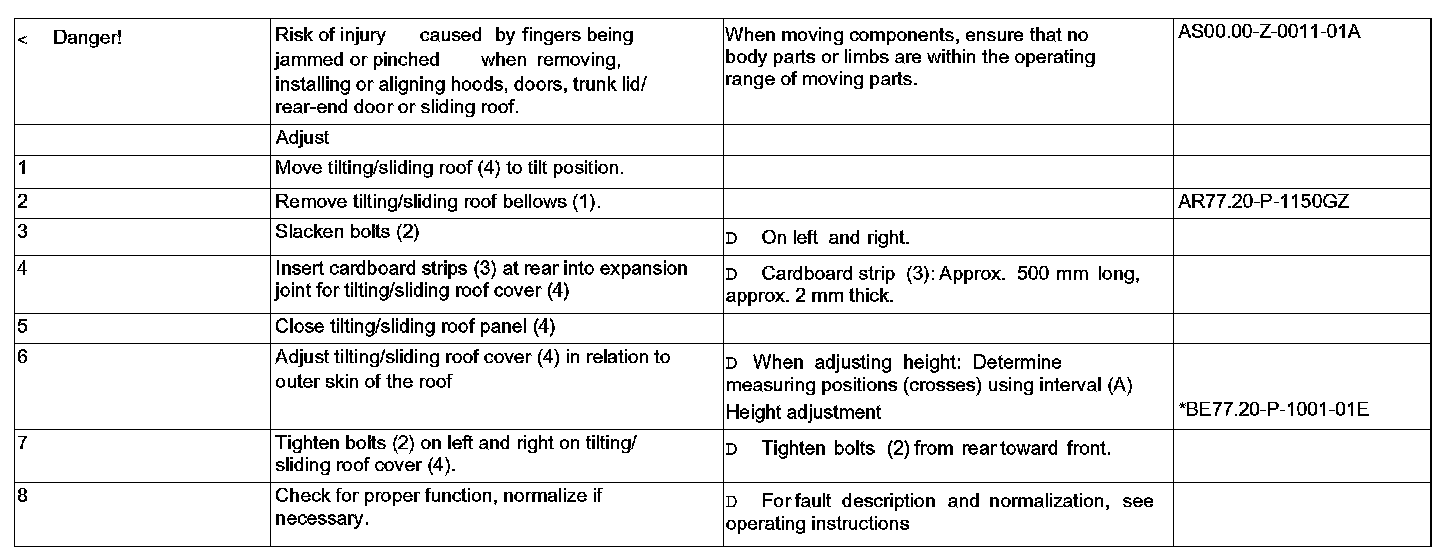

Steps 1 - 8:

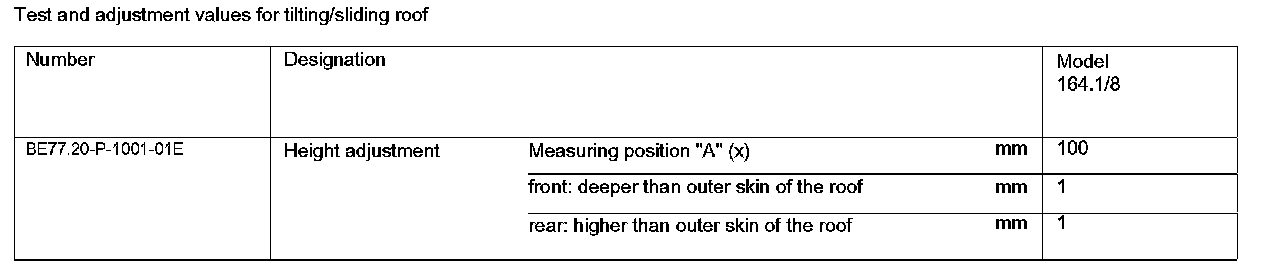

Test And Adjustment Values For Tilting/sliding Roof:
