Sunroof / Moonroof Motor: Service and Repair



AR77.20-P-3010GZ Remove/Install Tilting/Sliding Roof Motor
- with CODE (414) Power glass tilting/sliding roof

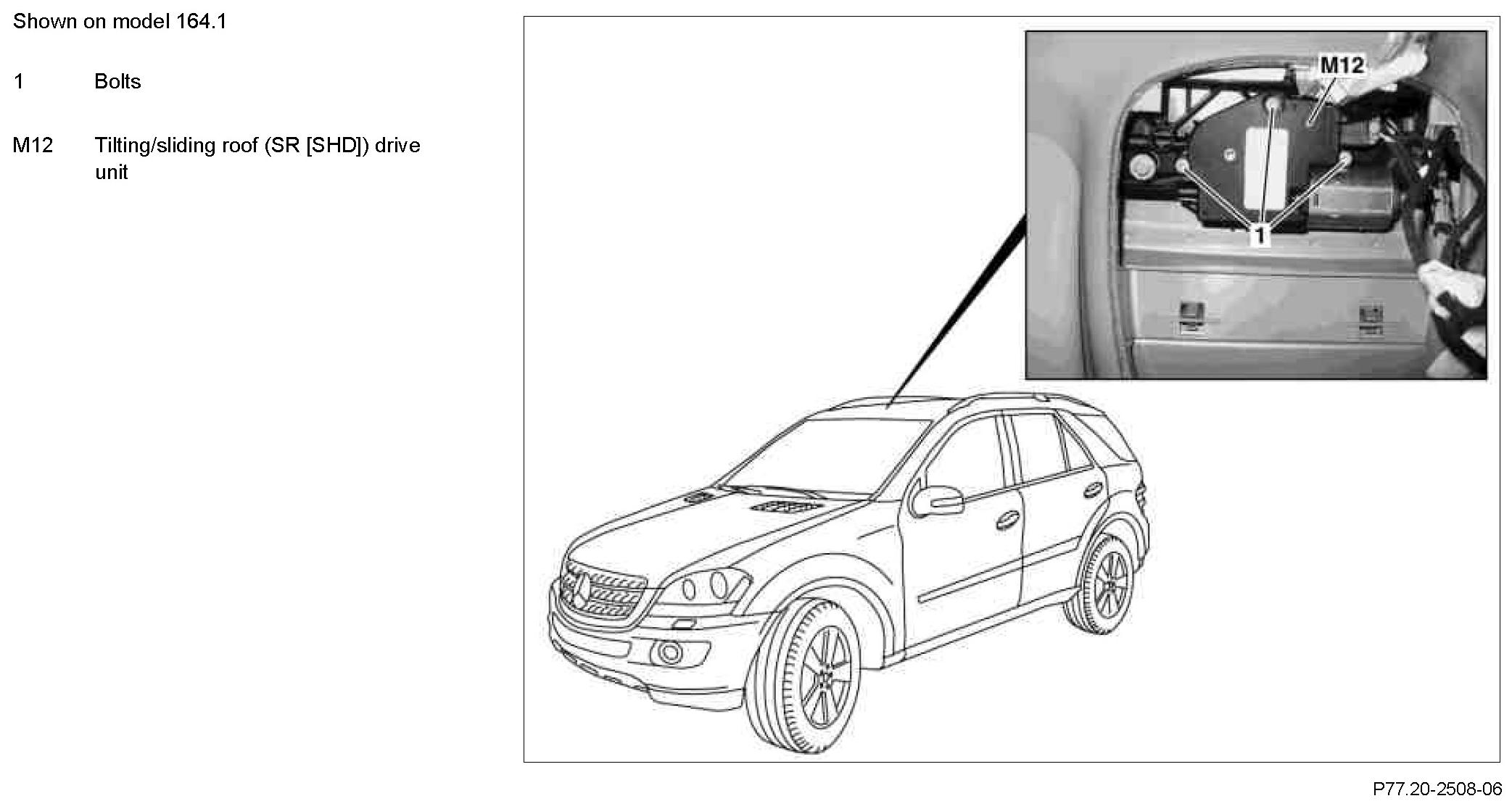

Component Identification:

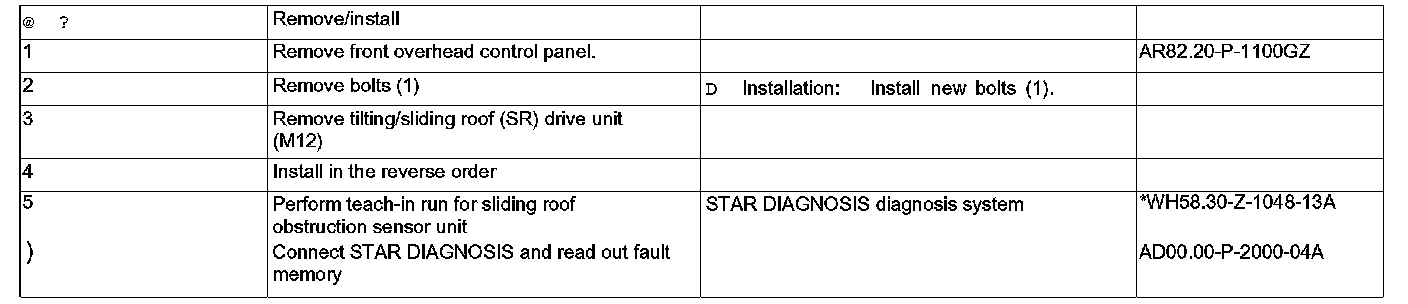

Steps 1 - 5:

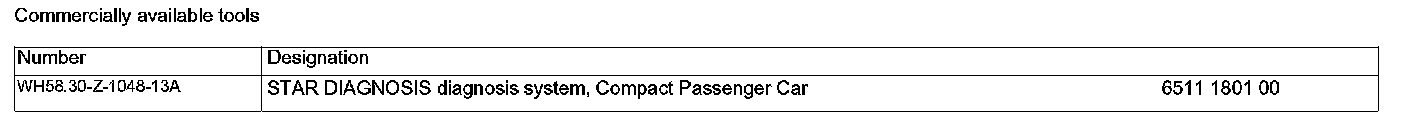

Commercially Available Tools:
