PE77.20-P-2052NAA Electrical Function Schematic For Panoramic Sliding Roof

PE77.20-P-2052NAA Electrical Function Schematic For Panoramic Sliding Roof
MODEL 166
with CODE (413) Panoramic Glass Roof With Top Sliding Roof

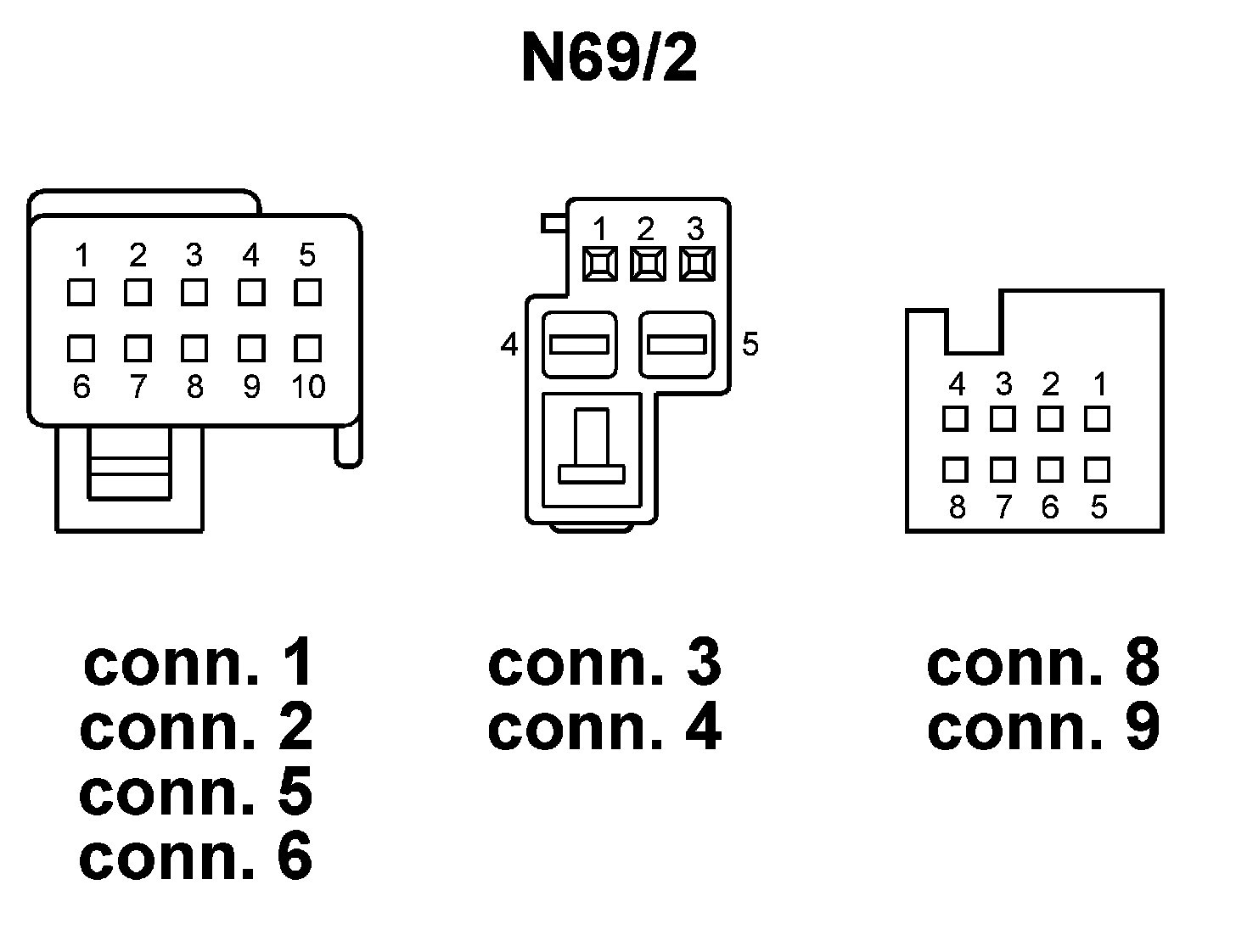

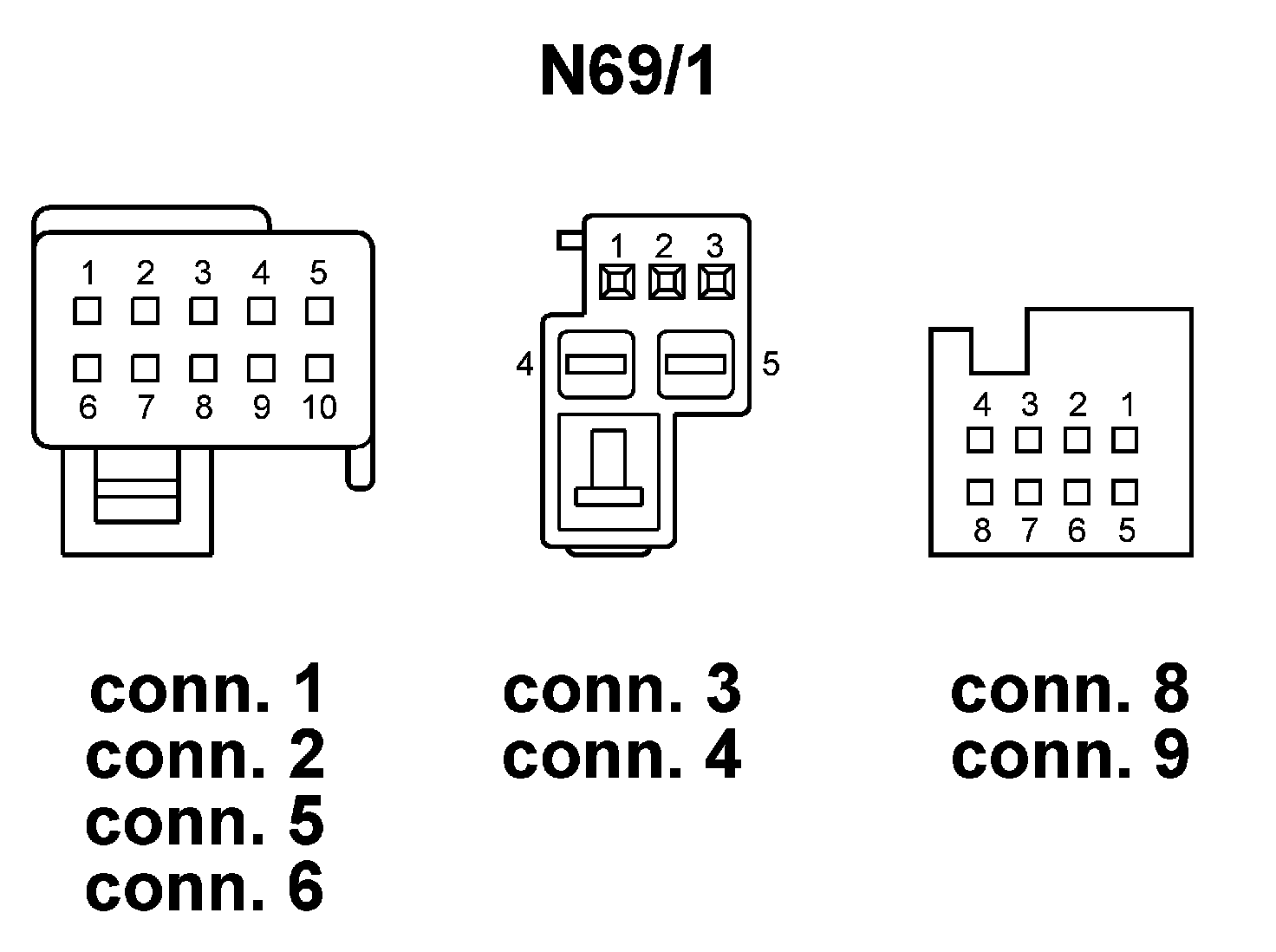

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
