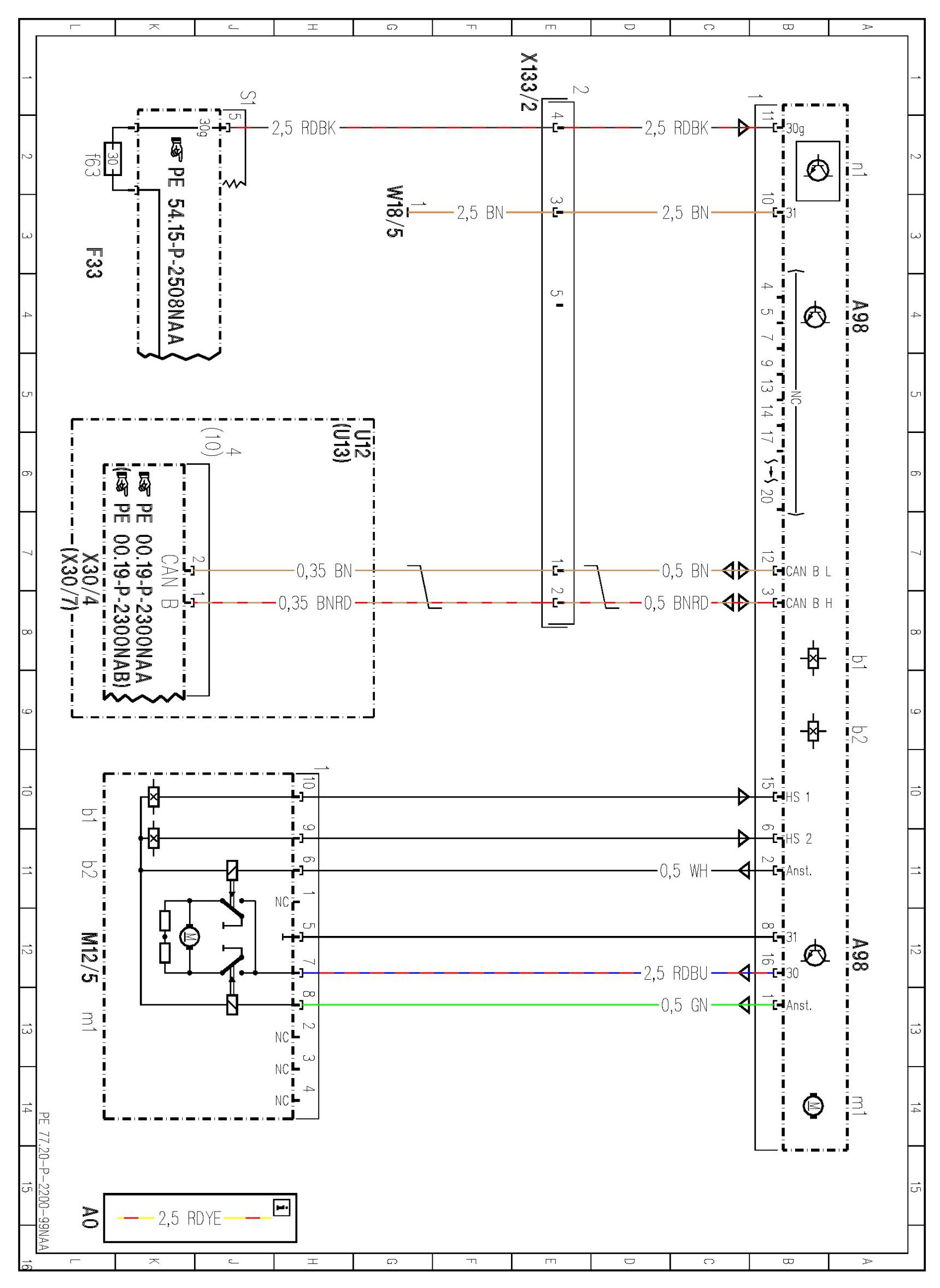

PE77.20-P-2200NAA Electric Wiring Diagram For Panoramic Sliding Roof



PE77.20-P-2200NAA Electric Wiring Diagram For Panoramic Sliding Roof
MODEL 166

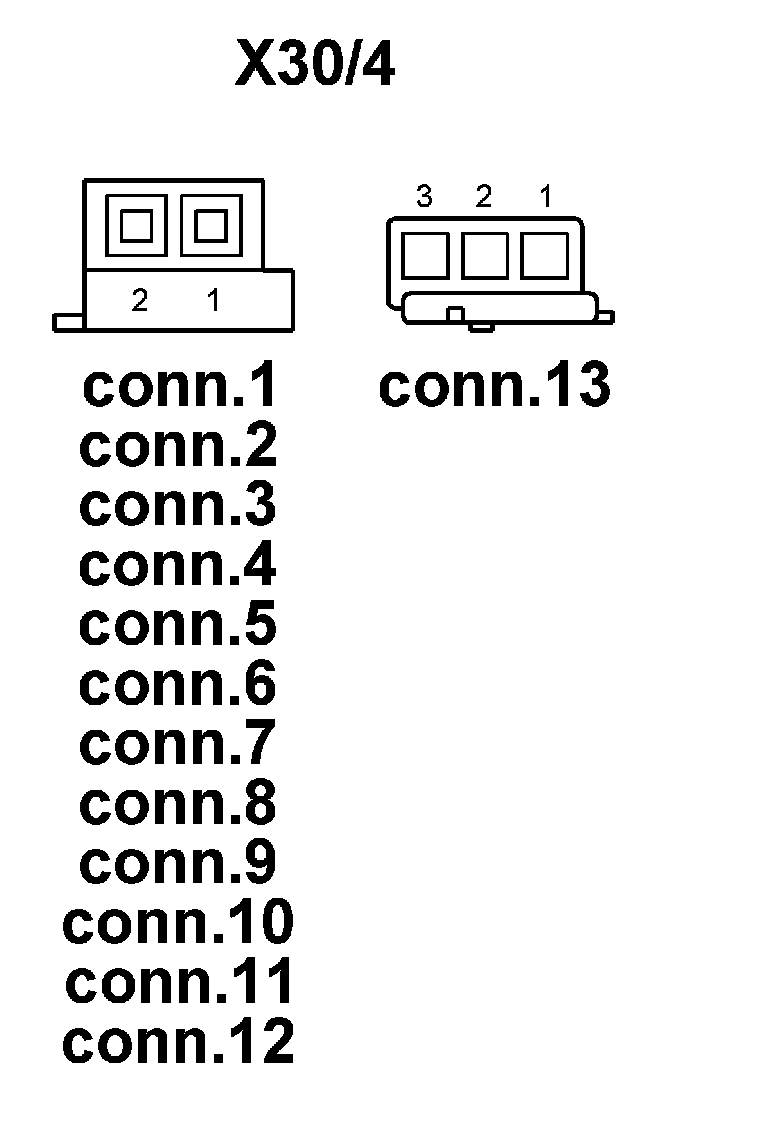

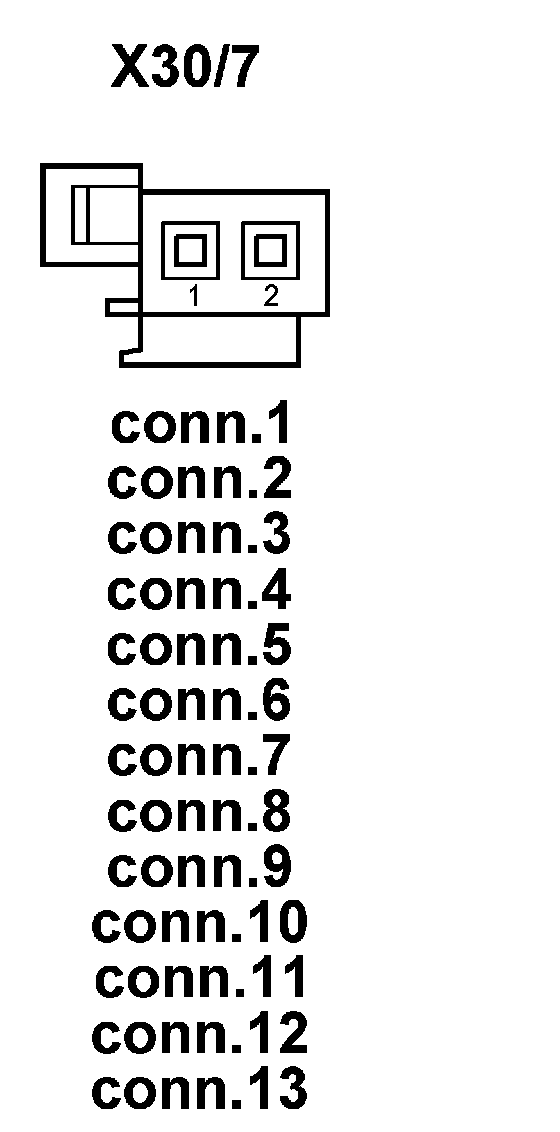

- with CODE (413) Panoramic Sliding Roof

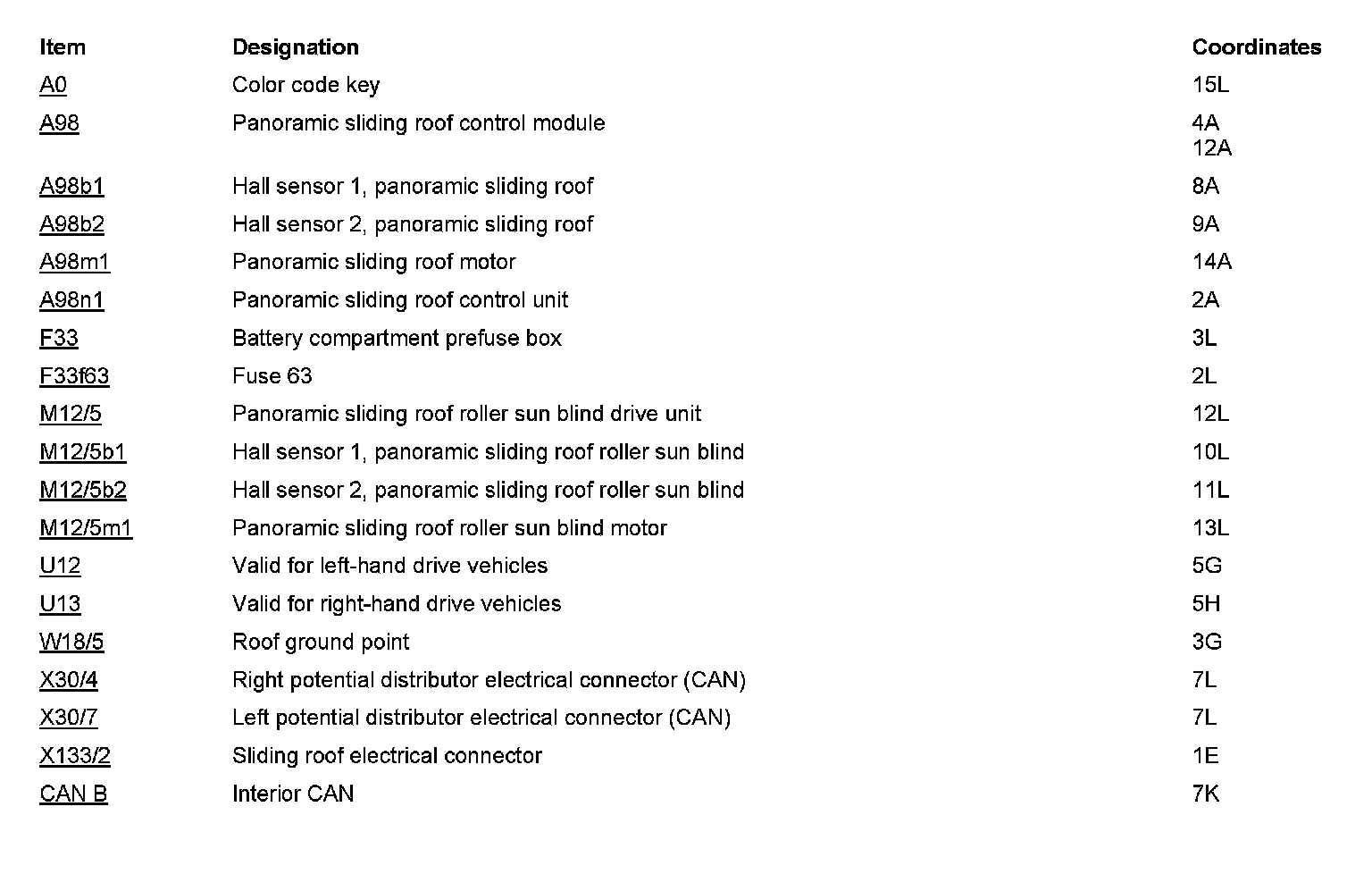

- Control Unit A98






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
